Fixed WC Thetford C224-CW with external cistern and water tank

Description

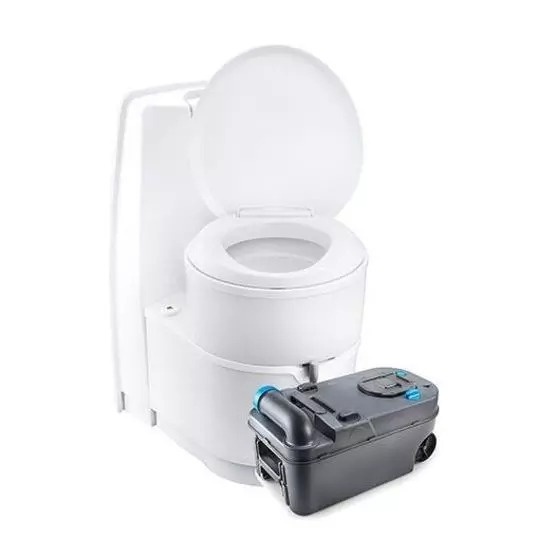

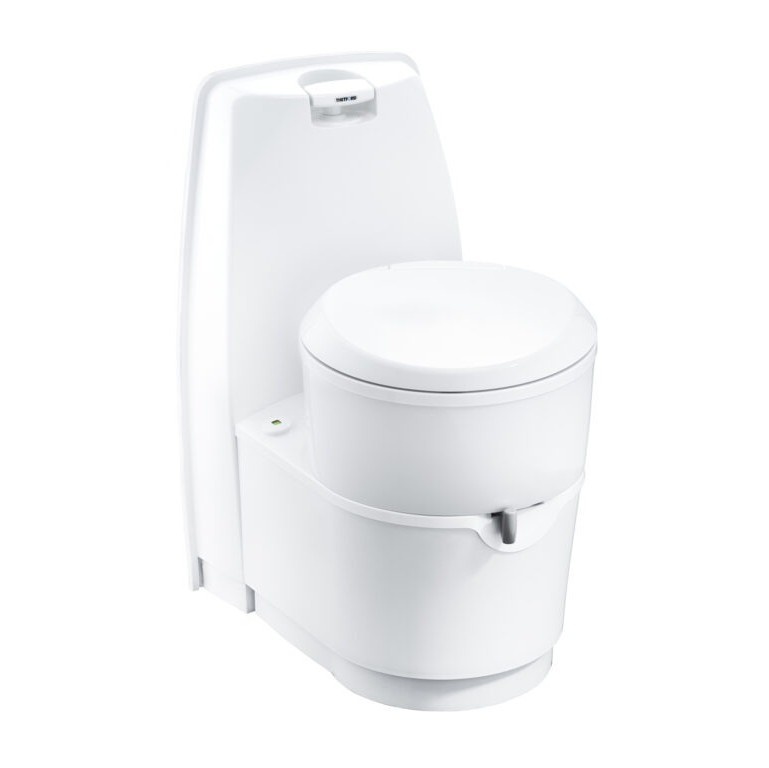

The Thetford C224-CW fixed toilet with outside tank emptying is equipped with its own 9 litre water tank and hand pump. It does not require connection to the vehicle's water tank and operates without electricity. It is ideal for conversions. The toilet bowl rotates 180º.

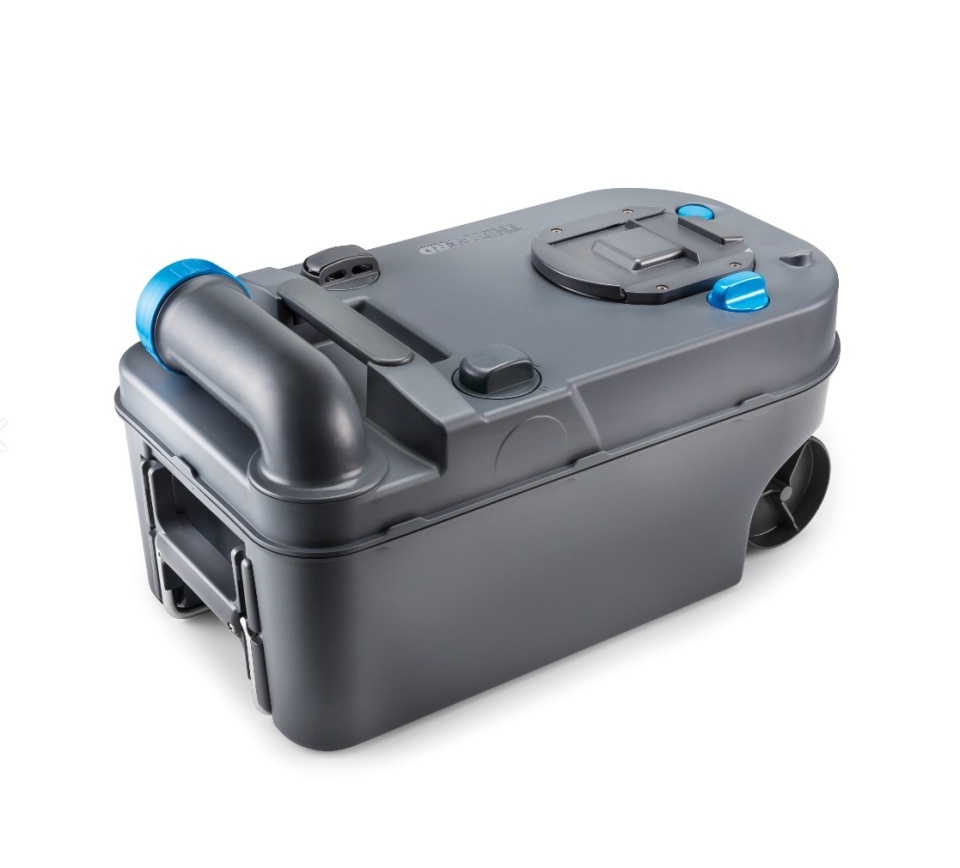

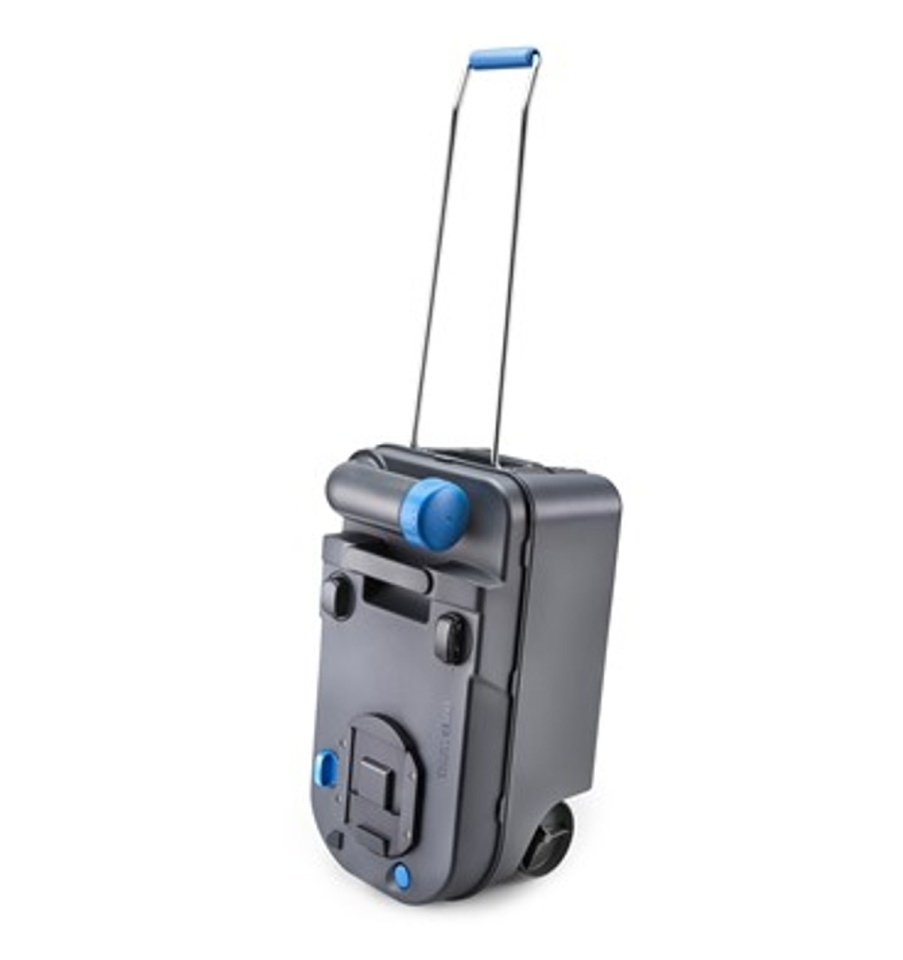

The toilet consists of two parts: a permanently installed toilet and a removable waste tank on the outside of the vehicle. The waste tank is easily removed through a service door located on the outside of the vehicle (service door not included and can be ordered separately fromhere). The C224-CW variant is mounted affixed to the side wall of the vehicle.

Mounting instructions can be foundhere

Specifications:

• Waste tank capacity: 18l
• Rinse water tank capacity: 9l
• Seat height (D): 49,2 cm

• Maximum height (A): 75 cm
• Depth (B): 60 cm
• Width (C): 41,7 cm
• Manual flushing system with water from own reservoir
