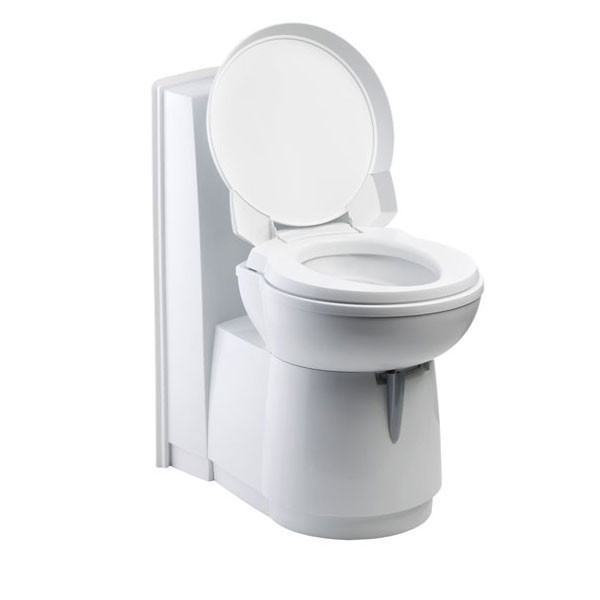

Fixed WC Thetford C263-CS with external cistern outlet, surface mounted

Description

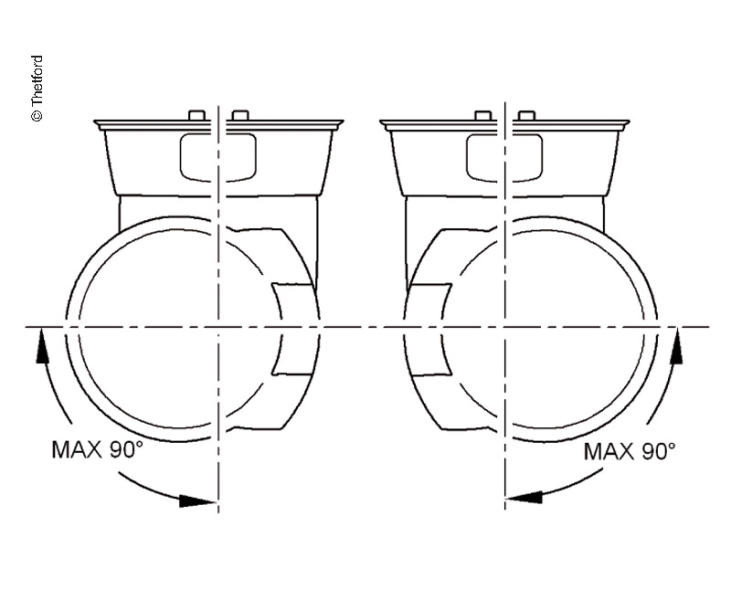

Fixed WC "Thetford C263-S" with outside tank emptying. Thetford 2xx series (223, 263 etc.) fixed toilets are equipped with a self-pump system that takes the flushing water from the vehicle's main water tank. The toilet bowl rotates 180º.

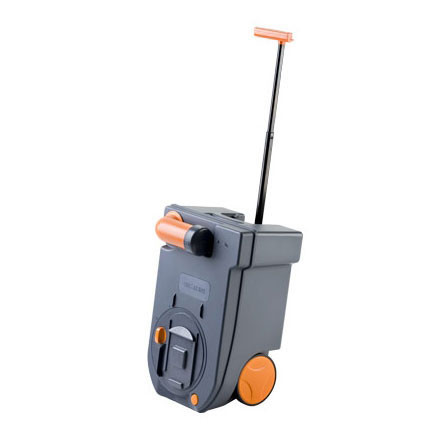

The toilet consists of two parts: a permanently installed toilet and a removable waste tank on the outside of the vehicle. A display indicates when to empty the tank. The residue tank is easily removed through a service door located on the outside of the vehicle (service door not included and can be ordered separately here).

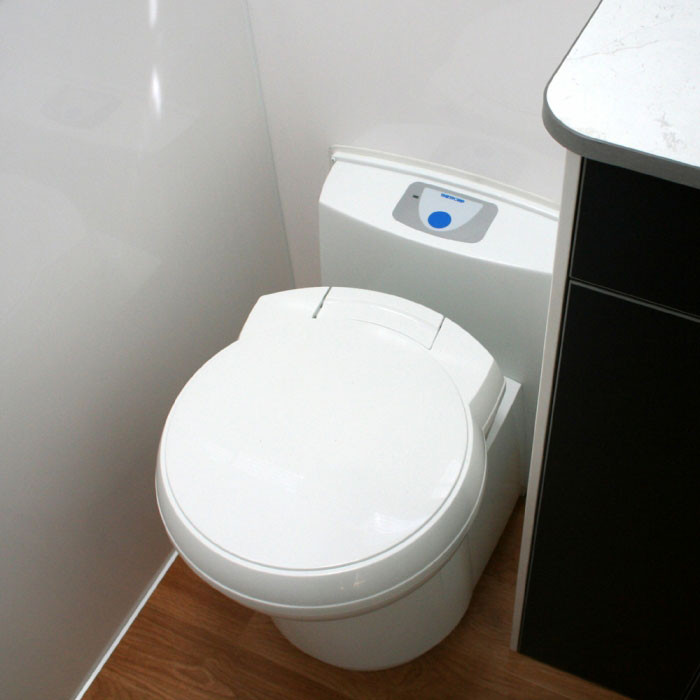

Variant C263-S is mounted affixed to the side wall of the vehicle. The control panel must be mounted on the vehicle wall.

Mounting instructions can be found here

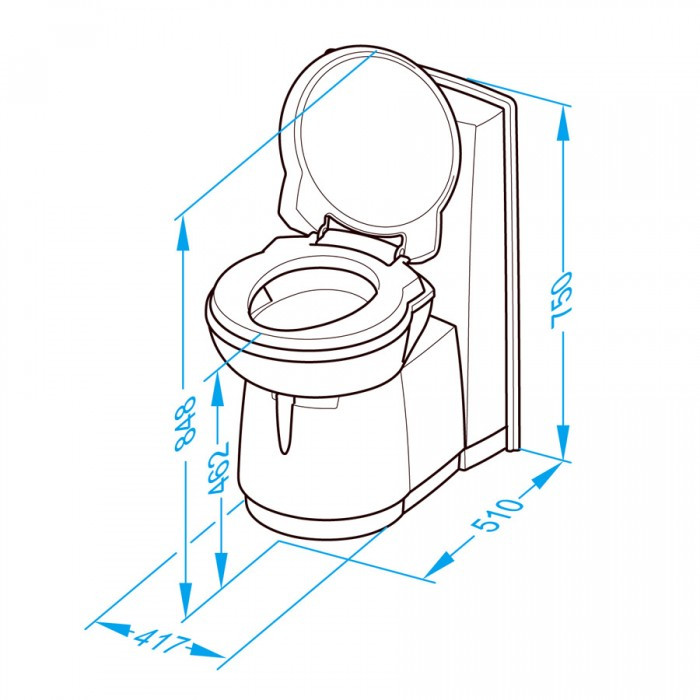

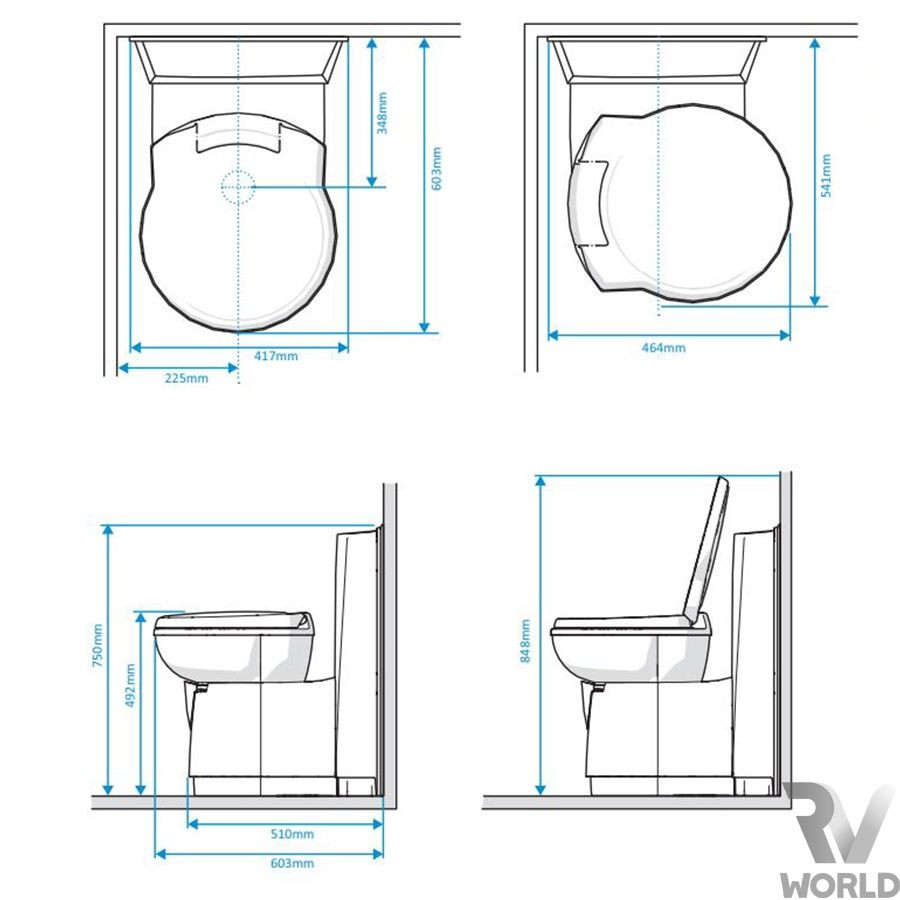

Specifications:

• Waste tank capacity: 17,5l
• Seat height: 46,2 cm

• Overall height: 75 cm
• Total width: 41,7 cm
• Total depth: 60,3
• Colour code residue bowl: orange
• Electric rinsing system with water intake from the main tank
