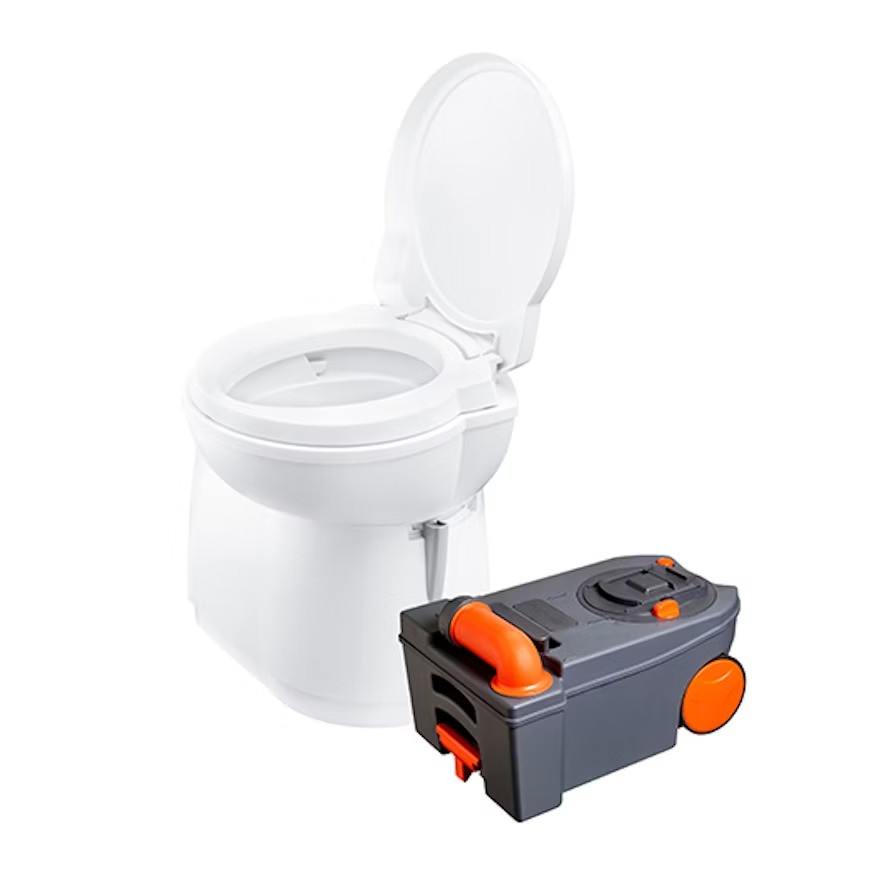

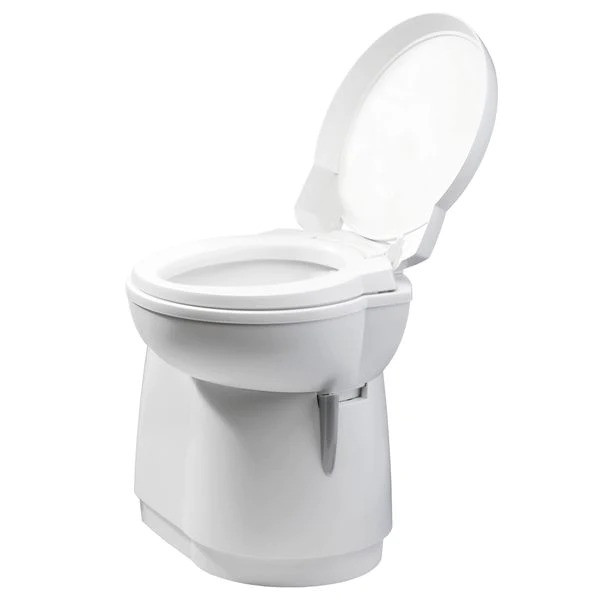

Fixed WC Thetford C263-S with tank emptying from outside, in-ground installation

Description

Fixed WC "Thetford C263-S" with outside tank emptying. Thetford 2xx series (223, 263 etc.) fixed toilets are equipped with a self-pump system that takes the flushing water from the main water tank of the vehicle. The toilet bowl rotates 180º.

The toilet consists of two parts: a permanently installed toilet and a removable waste tank on the outside of the vehicle. A display indicates when to empty the tank. The residue tank is easily removed through a service hatch on the outside of the vehicle
(service door is not included and can be ordered separately from here).

Variant C263-S is recessed into the side wall of the vehicle. The control panel must be mounted on the vehicle wall.

Variant C263-CS is mounted on the side wall of the vehicle.

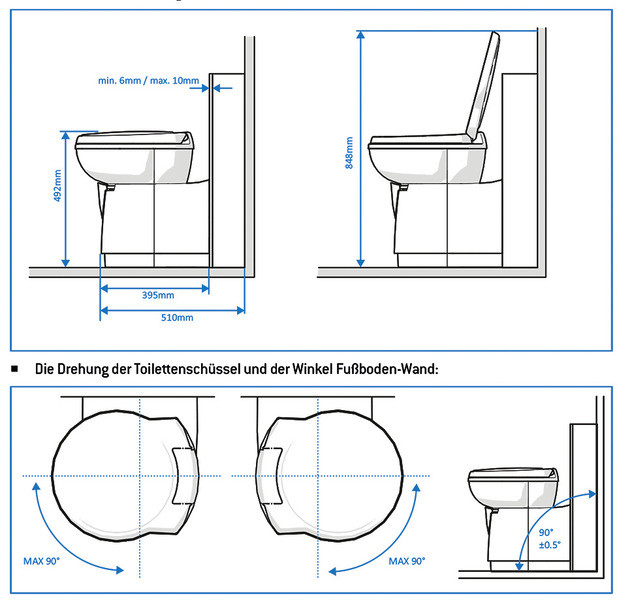

Mounting instructions can be found here

Specifications:

• Waste tank capacity: 17,5l
• Seat height / width: 46,7 x 37,9 cm

• Overall height: 48,8 cm
• Overall width: 34,1 cm
• Total depth: 60,3
• Colour code waste bowl: orange
• Electric rinsing system with water intake from the main tank
