Floor mounted SOG ventilation system

Description

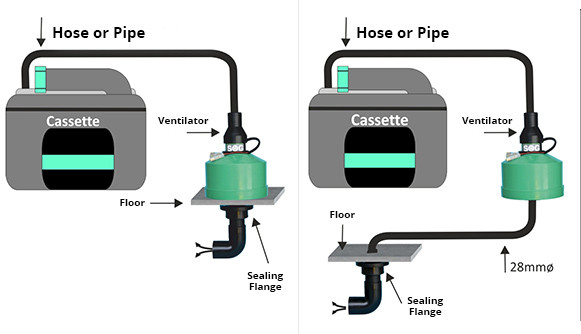

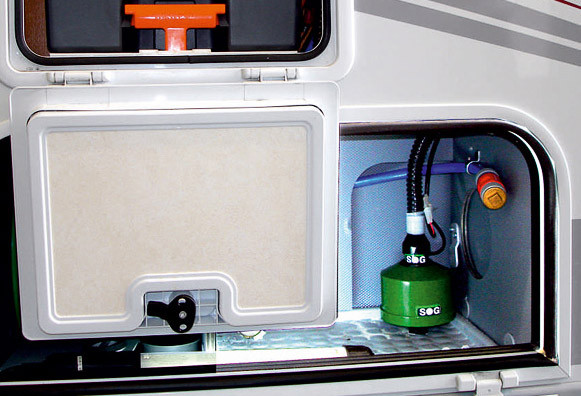

SOG type venting system compatible with all Thetford Cassette Toilet models (version to be selected) with the venting filter mounted in the floor of the waste tank compartment. The use of the floor SOG system is recommended when the door of the waste tank compartment is positioned towards the driver's side of the vehicle, i.e. in the seating area.

The SOG aeration system can be retro-fitted to the Thetford C 200 toilet waste tank.

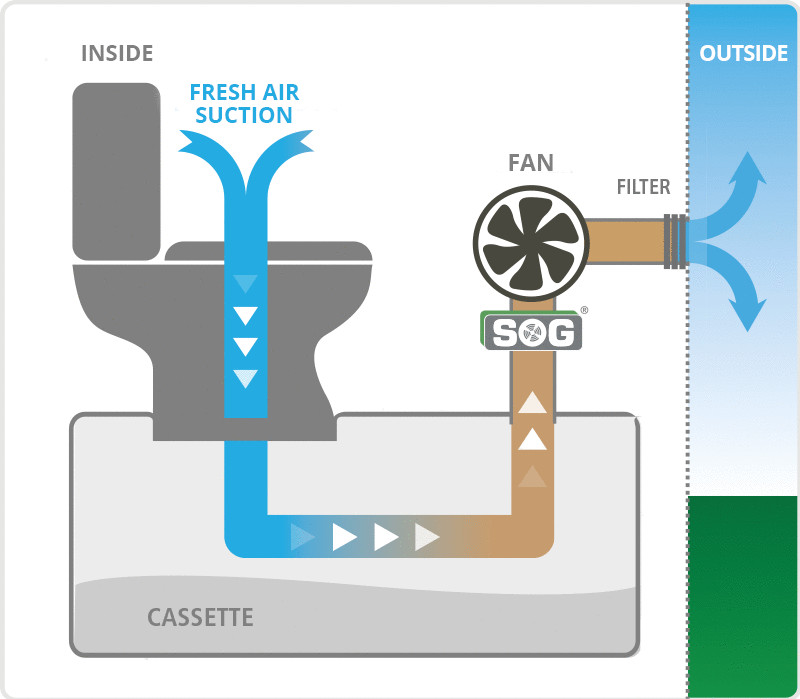

The system makes the use of sanitary solutions unnecessary (except for maintenance and cleaning), as the active ventilation prevents any odours - even during use!

Assembly is done by replacing the pressure valve on the waste tank. Requires connection to 12V electrical supply.

Advantages:

• Fan starts only when in use, so low energy consumption
• efficient extraction due to high fan speed
• activated charcoal filter neutralises exhaust gases
• no chemical additives needed

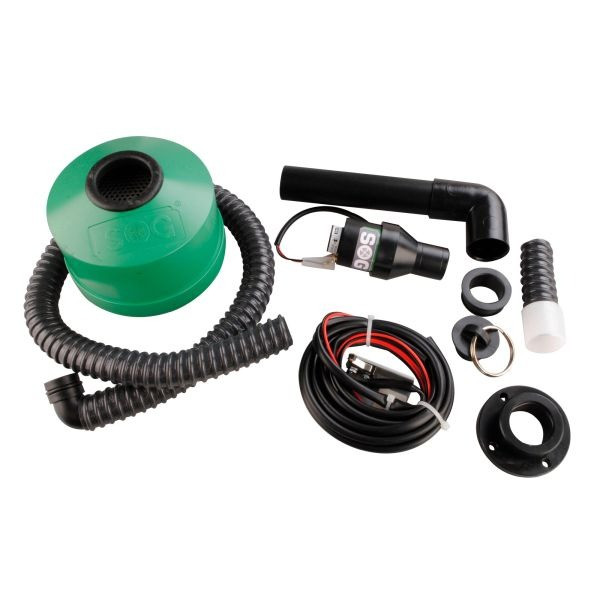

Package contains: fan, adapter parts, filter housing with activated carbon filter, set of cables with switch, assembly instructions.

Activated carbon filters must be changed annually!
