Fothermo 10l boiler with direct feed from photovoltaic panels

Description

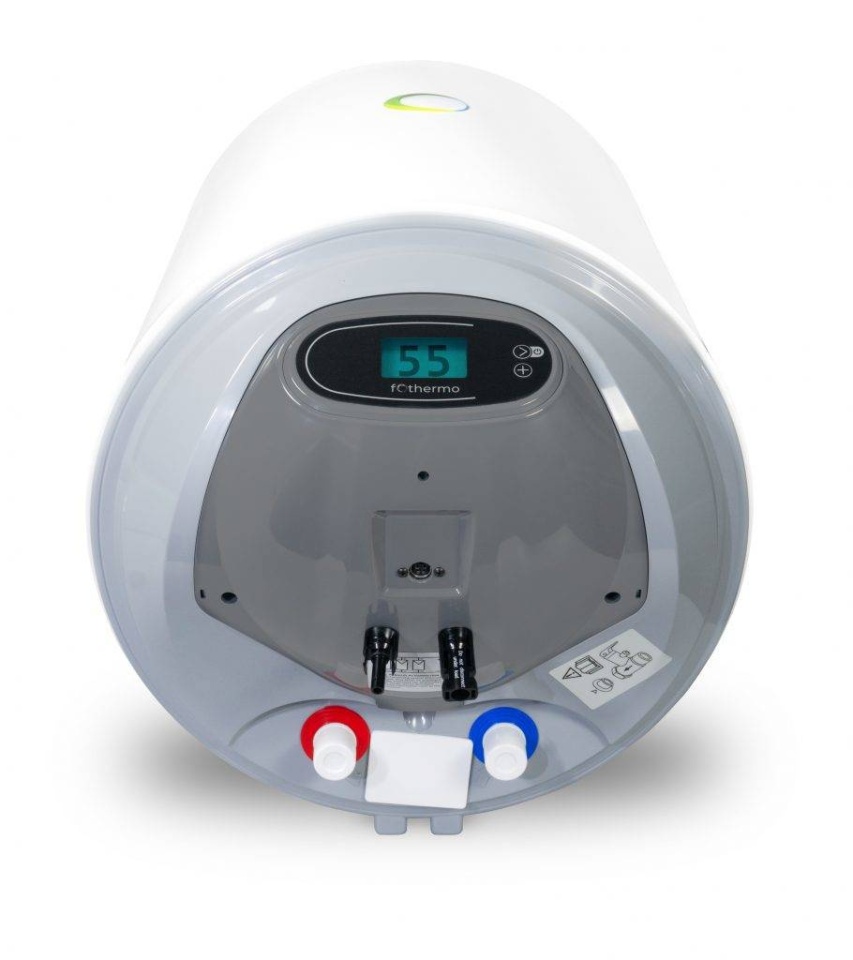

Fothermo's 10 litre boiler heats water with the energy generated by solar panels. The solar panels are connected directly to the boiler via MC4 plugs (the boiler has a built-in MPPT controller).

Features:

- 10 litre photovoltaic hot water boiler.

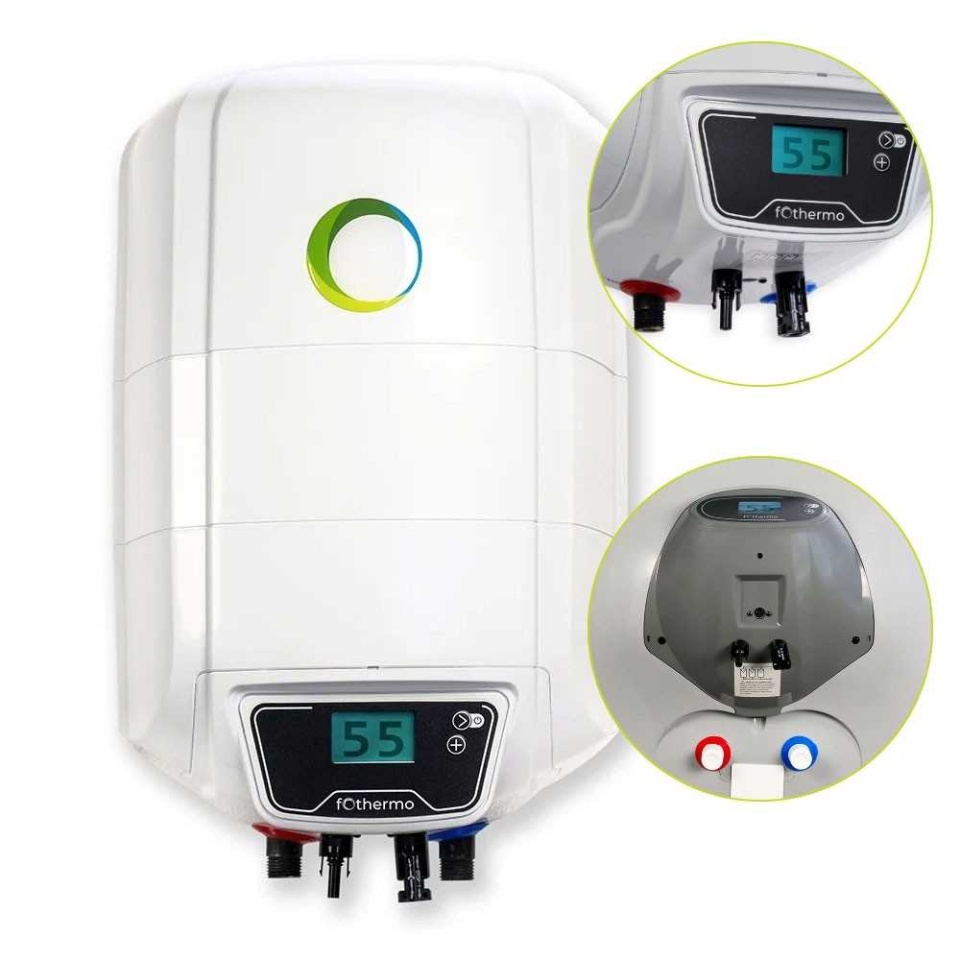

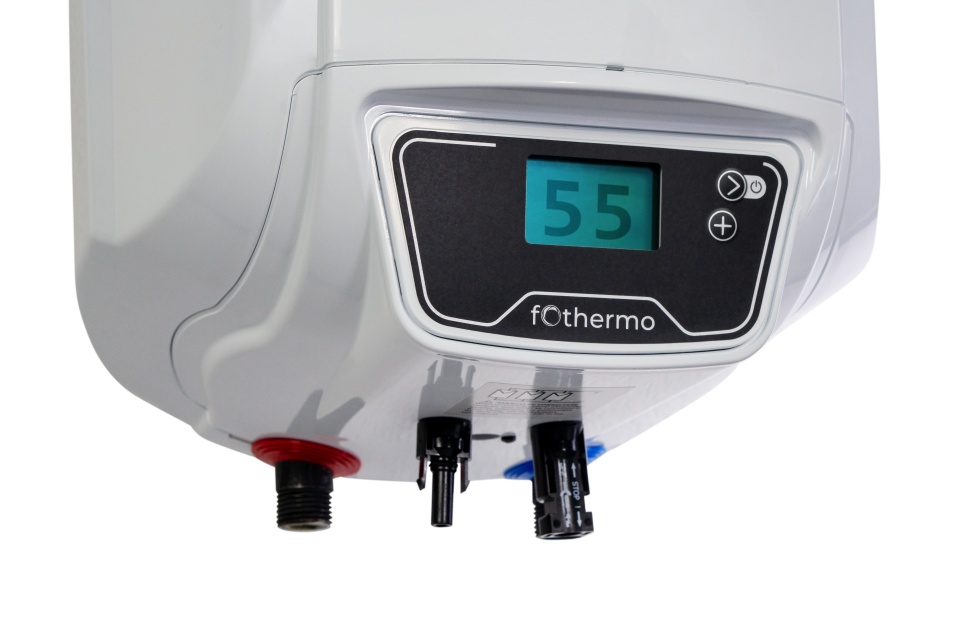

- Digital display: displays current power and energy savings.

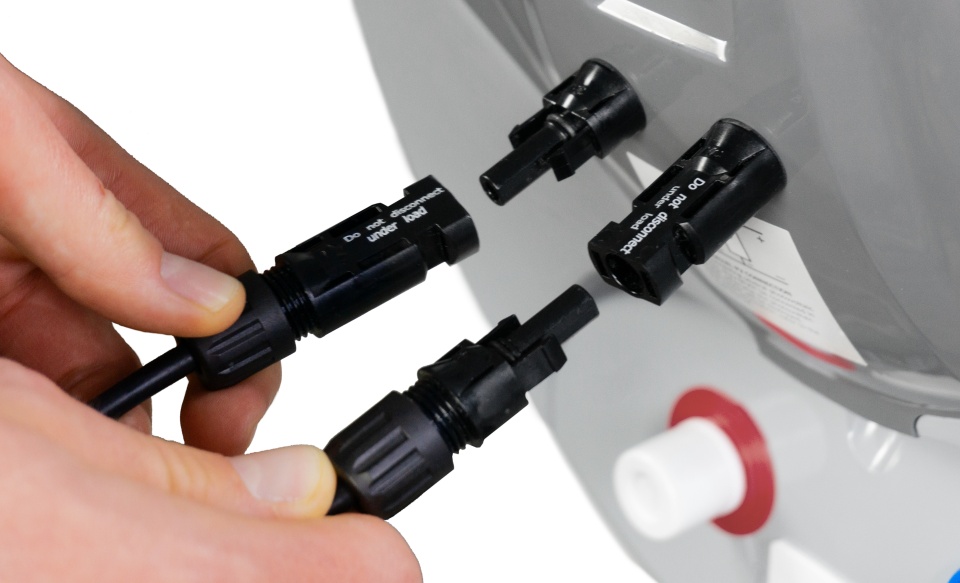

- MC4 photovoltaic connections.

- No mains connection required

- No specialist required for installation.

- Optional heating possible via 220V mains (mains transformer not included).

- Heats water to 65° in about 60 min

- Made in Germany

Solar panels:

- We recommend connecting a 150Wp solar module.

- Connect modules with an output of at least 100Wp and a nominal voltage of 18V.

- Connect max. 3 modules of 325Wp in parallel.

Specifications:

- Volume: 10 litres;

- Heating power up to: 550W;

- Maximum current consumption: 15,5A

- Water temperature: max 65 °C;

- Water connection: 1/2 inch;

- Protection class: IP24

- Dimensions: 280x280x280x440 mm;

- Weight: 7,2 kg.
