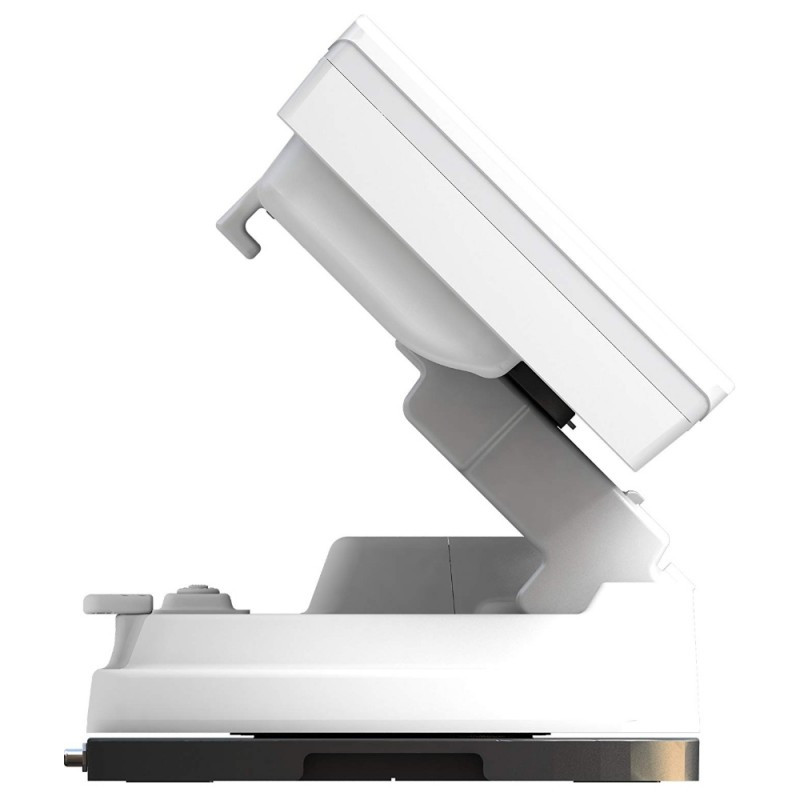

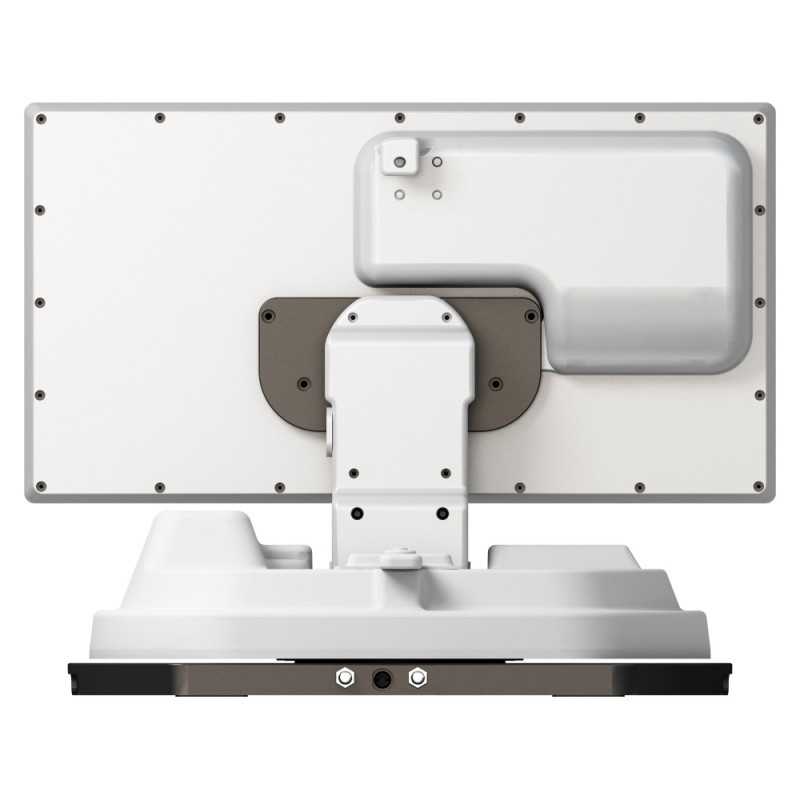

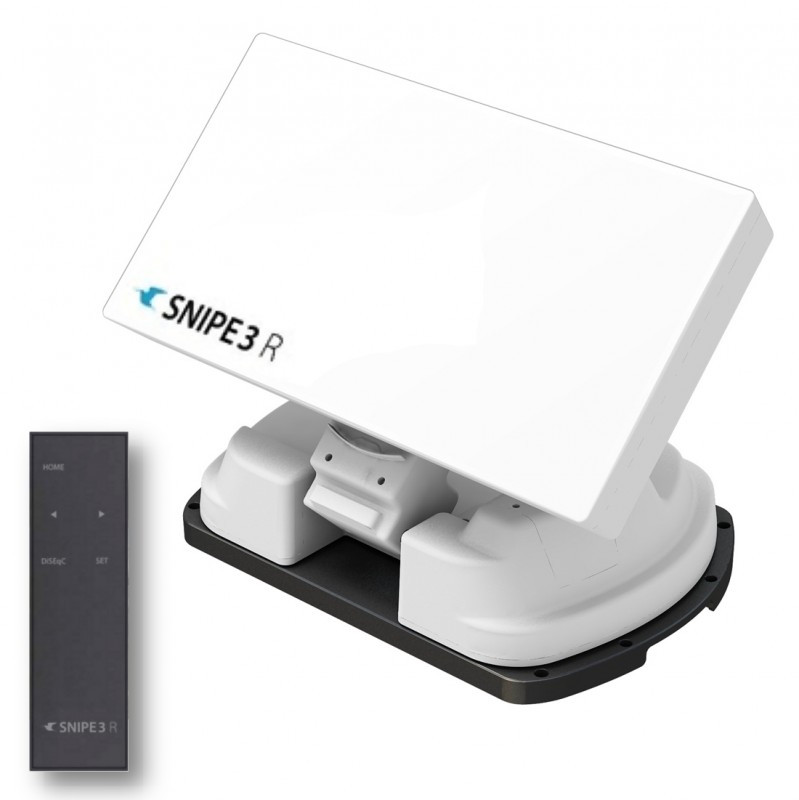

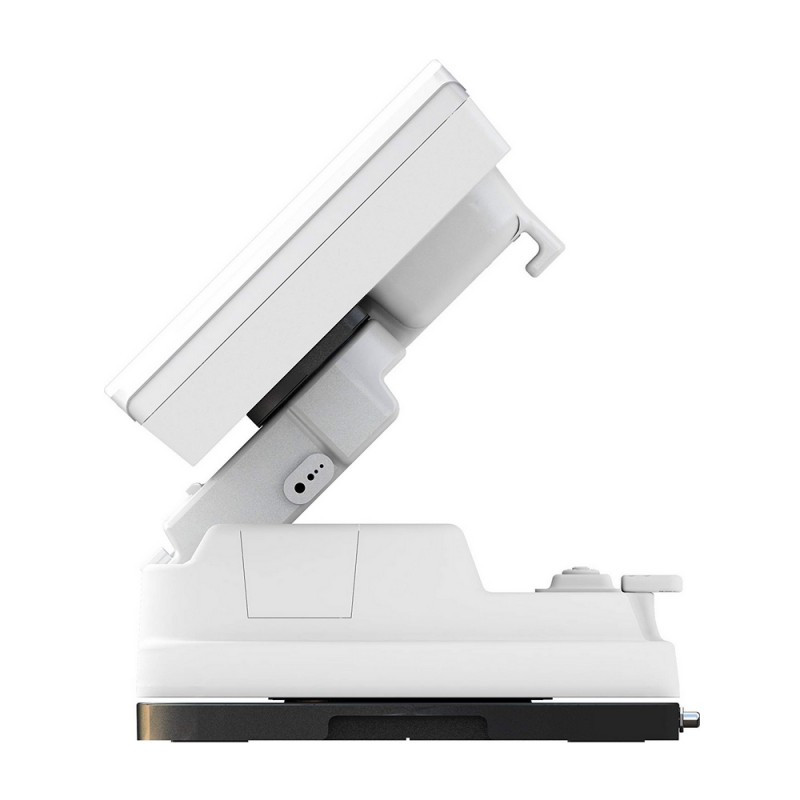

Fully automatic satellite dish with GPS "Selfsat Snipe 3R"

Description

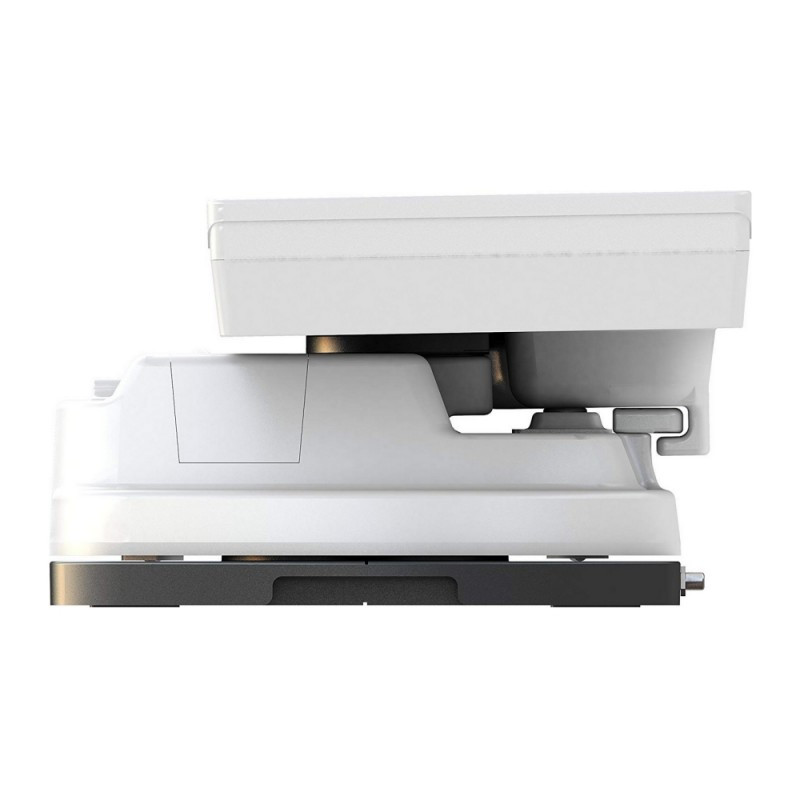

The Selfsat Snipe 3 R is the world's first automatic remote-controlled flat antenna. Selfsat Snipe 3R is an automatic satellite dish with control via Bluetooh app (IOS or Android). Due to its compact design, the Snipe 3R takes up very little space and is ideal for mounting on the roof of caravans or motorhomes. It comes with an integrated GPS mode that makes it easy to align with the desired hopping at the push of a button. The antenna switches off automatically as soon as you switch off the receiver or start the vehicle.

Features:

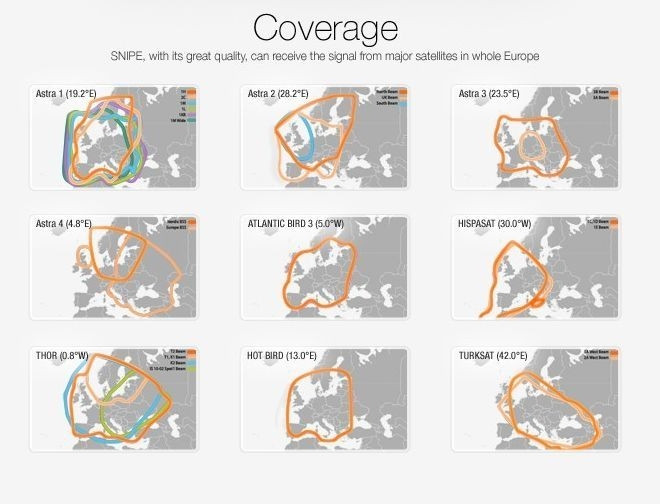

- 10 pre-programmed satellites (Turksat, Astra 2, Astra 3, Astra 1, Hotbird, Eutelsat 9, Astra 4, Thor, Eutelsat 5W, Hispasat) in addition to which 2 more can be added.
- Intelligent transponder management with the possibility to store 12 transponders
- Play 4k UHD programmes
- Built-in high voltage protection circuit to avoid short circuits on the LNB
- Features an ultra waterproof and water drainage system
- Lightweight and rust resistant thanks to reinforced plastic
- With one LNB for 1 receiver/TV

Technical Data:

LNB input frequency: 10.7~12.75GHz
Polarisation: vertical and horizontal
Gain: 33.7 dBi at 12.7 GHz

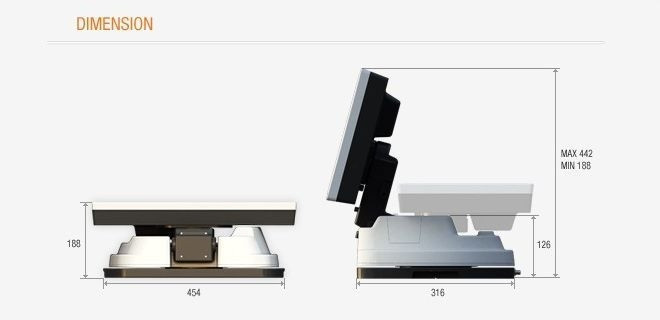

Dimensions (L x W x H): 515 x 355 x 201 mm
Weight: 10.3 kg (without housing, mounting plate and accessories)
Minimum EIRP: 50 dBw
Altitude: automatic, 15-90°
Azimuth: automatic, 360°
Tilt: automatic, -45° to +45°
DiseqC: 1.0 / 1.1
Satellite search time: max. 180 s
LNB output: 1
LNB output frequency: 950~2.150MHz
LNB L.O. Frequency: 9.75/10.6 GHz
Operating Temperature: -30 to +60 °C
Supply voltage: 12V DC
Power consumption: 30 W (during search)

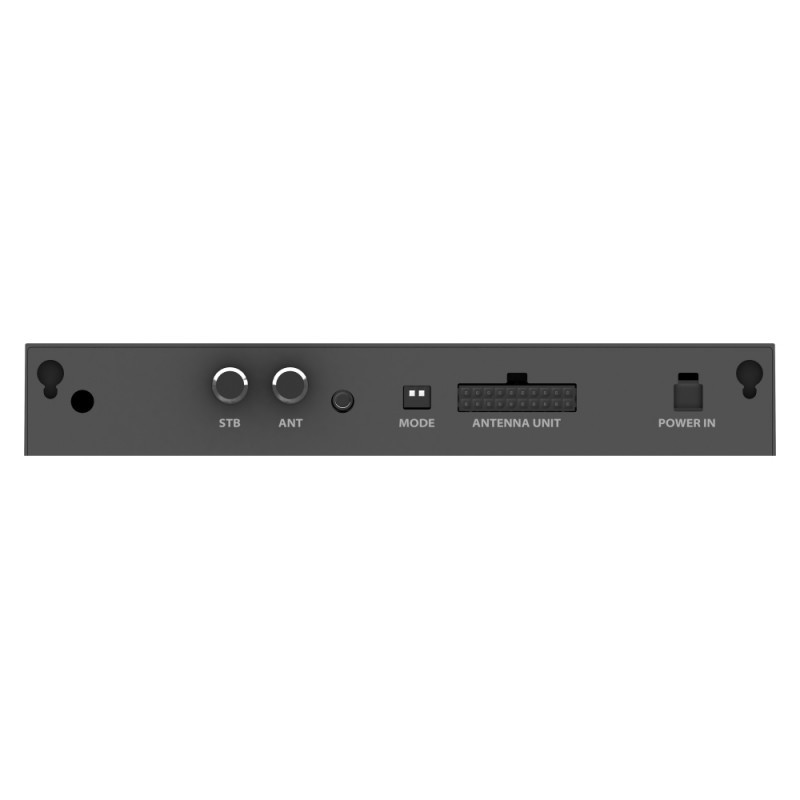

Control unit: width: 200 mm, height: 30 mm, depth: 145 mm

Package contains:

Selfsat Snipe 3 Black Line

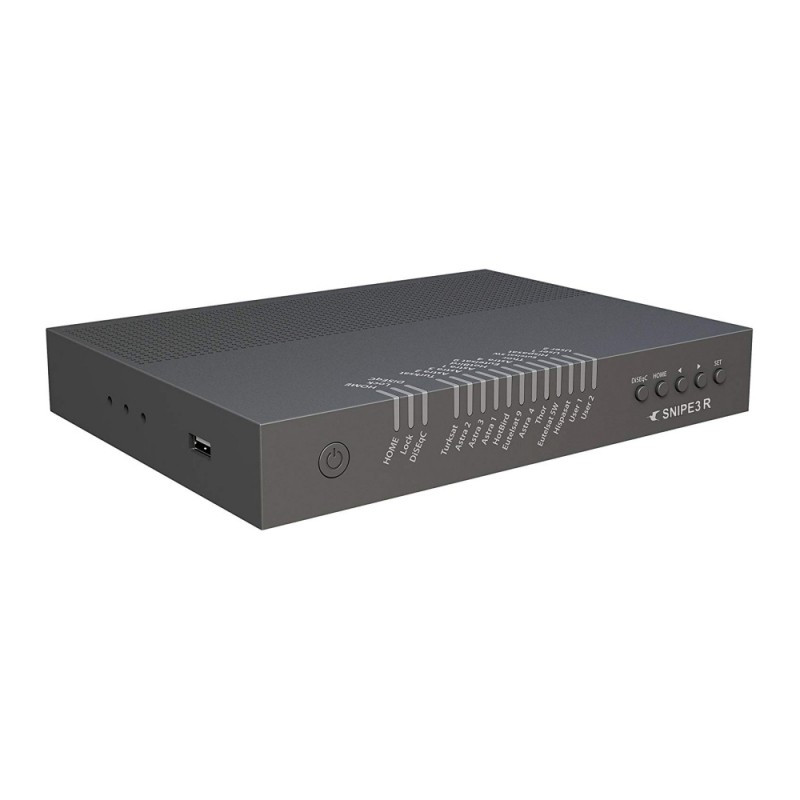

Controller
Mounting plate
12V connection cable
Controller cable (7m) and coaxial cable
Other materials required for mounting (cable feed-through device, screws, spanner, etc)
Instructions for use
