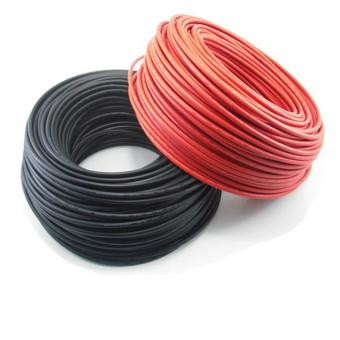

FY multiwire electrical conductor, PVC insulation, 4 mmp, 5 m

RON 58.00 (VAT included)
Free shipment for orders > 60 Euro
Product code Colour Total price Quantity Stock
18125 Black
RON 58.00
out of stock
18127 Red
RON 58.00
on stock
Add to Favorites
How can we help?
Ask for details

Description

FY multiwire electrical conductor, PVC insulated, 4 mmp, 5 m, made of resistant copper, plastic sheathed. The product can be used for connections in photovoltaic systems, electrical switchboards, indoor and outdoor wiring. It is a cable used for lighting installations and fixed electrical installations.

Specifications:

  • Product type: FY cable
  • Length: 5 m
  • Section diameter (mmp): 4
  • Insulation colour: Black or Red
  • Insulation material: PVC
  • Conductor material: Copper

The correct cable is selected based on the maximum current that must pass through that system. The table below indicates the cable size and its correspondence to the maximum current (for cables up to 5 metres total length - if there are 2 cables, the total length is the sum of them). If you can't find a thick enough cable, use two cables per connection rather than one very thick one.


Nominal conductor cross-section (mm²) Maximum allowable current (A)
0.50 mm² (0.50 mm²) 12 A
0.75 mm² (0.75 mm²) 15 A
1.00 mm² A 19 A
1.50 mm² A 24 A
2.50 mm² A 32 A
4.00 mm² A 42 A
6.00 mm² A 54 A
10.00 mm² A 73 A
16.00 mm² A 98 A
25.00 mm² A 129 A
35.00 mm² A 158 A
50.00 mm² A 198 A
70.00 mm² A 245 A
95.00 mm² A 292 A

Details

Categories
Solar panels, accessories, 220V: sockets, extension cords, CEE adaptors

Delivery

Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
