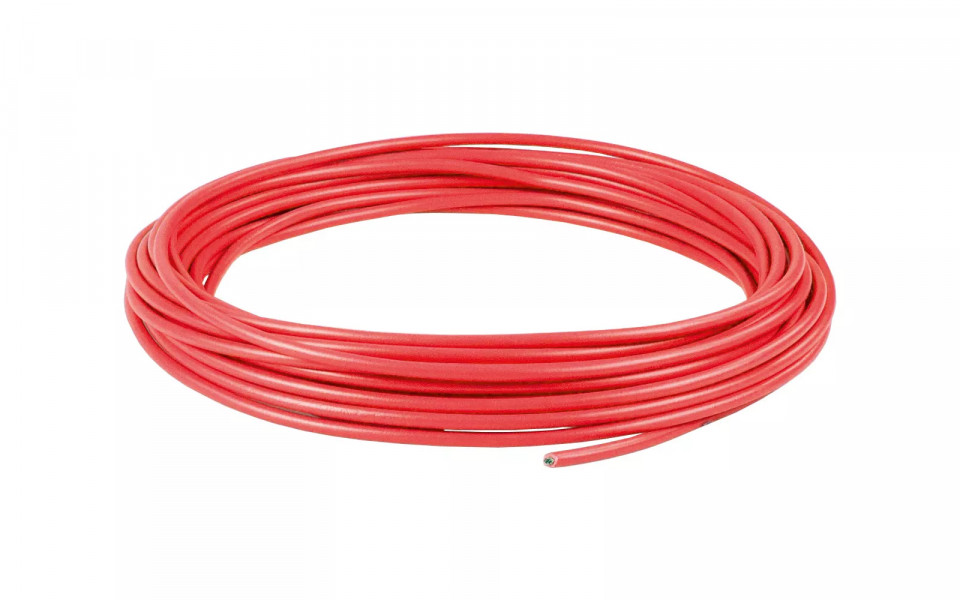

FY multiwire electrical conductor, PVC insulation, 6 mmp, 5 m

AS Schwabe
RON 38.00 (VAT included) RON 48.00
Free shipment for orders > 60 Euro
AS Schwabe
Product code Colour Total price Quantity Stock
19044 Blue
RON 38.00
RON 48.00
on stock
19045 Red
RON 38.00
RON 48.00
on stock
Add to Favorites
How can we help?
Ask for details

Description

FY multi-wire electrical conductor, PVC insulated, 6 mmp, 5 m, made of resistant copper, plastic sheathed. The product can be used for connections in electrical switchboards, indoor and outdoor wiring.

Specifications:

  • Product type: FY cable
  • Length: 5 m
  • Section diameter (mmp): 6
  • Insulation colour: Blue or Red
  • Insulation material: PVC
  • Conductor material: Copper

The correct cable is selected based on the maximum current that must pass through that system. The table below indicates the cable size and its correspondence to the maximum current (for cables up to 5 metres total length - if there are 2 cables, the total length is the sum of them). If you can't find a thick enough cable, use two cables per connection rather than one very thick one.


Nominal conductor cross-section (mm²) Maximum allowable current (A)
0.50 mm² (0.50 mm²) 12 A
0.75 mm² (0.75 mm²) 15 A
1.00 mm² A 19 A
1.50 mm² A 24 A
2.50 mm² A 32 A
4.00 mm² A 42 A
6.00 mm² A 54 A
10.00 mm² A 73 A
16.00 mm² A 98 A
25.00 mm² A 129 A
35.00 mm² A 158 A
50.00 mm² A 198 A
70.00 mm² A 245 A
95.00 mm² A 292 A

Details

Categories
Plug, socket, voltmeter, USB, 220V: sockets, extension cords, CEE adaptors, 12V: sockets, switches, fuses
Brand
AS Schwabe

Delivery

Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
