Hatch 50 x 70 cm MPK "VisionStar L Pro" with retractable mosquito net and blind

MPK
RON 2,099.00 (VAT included)
Free shipment for orders > 60 Euro
MPK
Product code 20220
on stock
Add to Favorites
How can we help?
Ask for details

Description

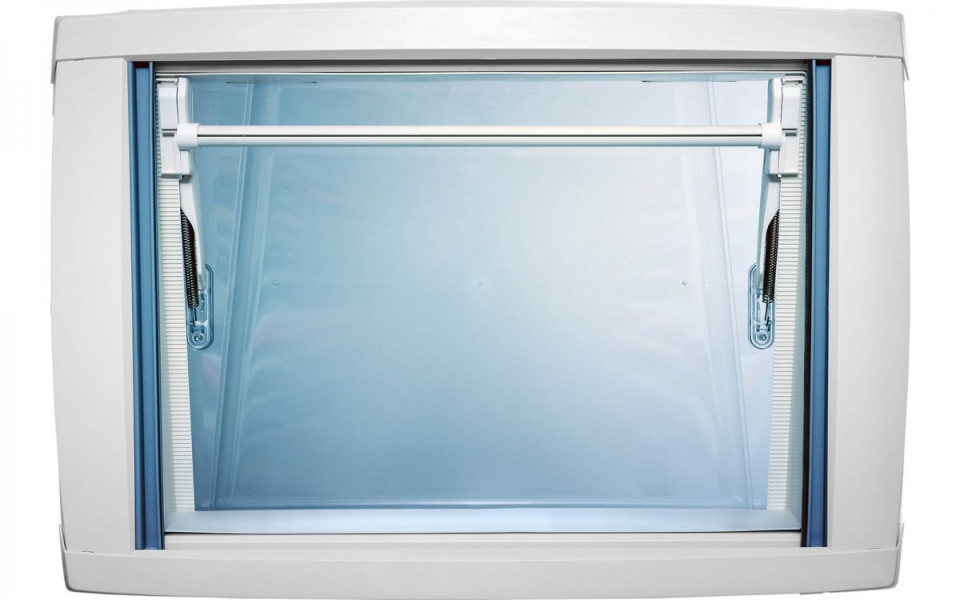

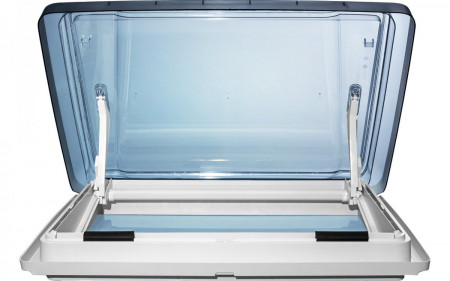

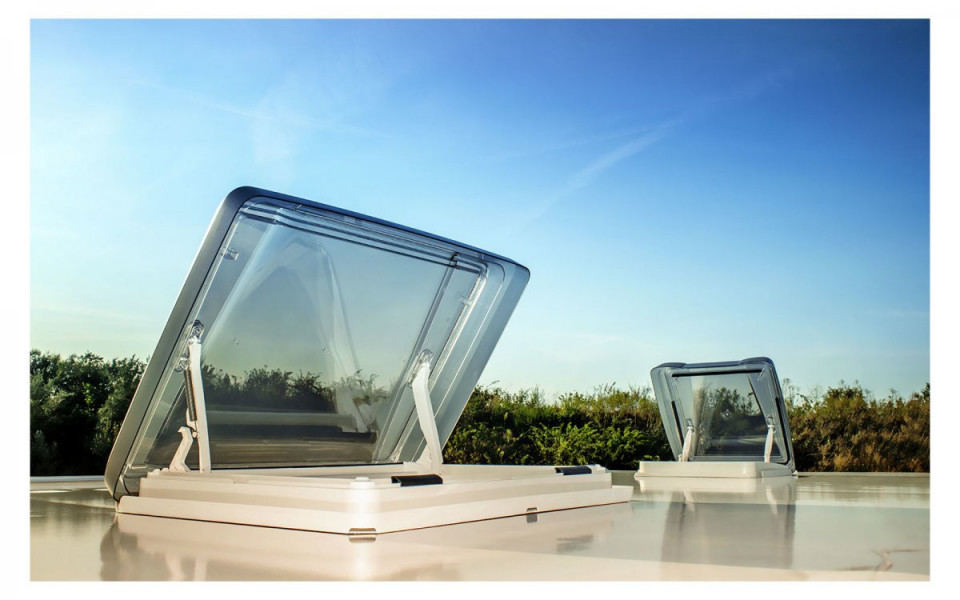

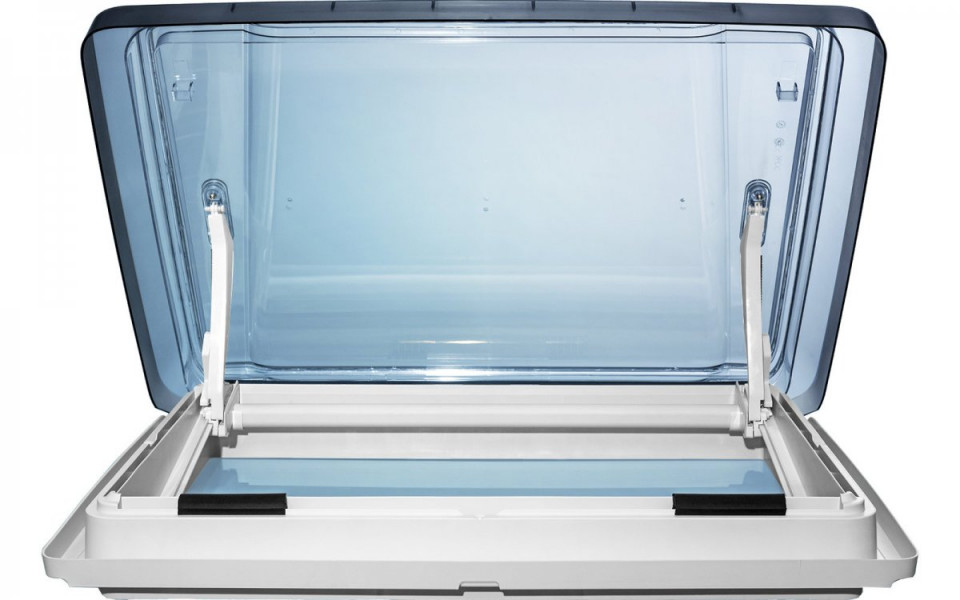

The MPK VisionStar L Pro hatch is equipped with impact-resistant polycarbonate double-glazed glass. Thanks to the flat lid, the noise inside during operation is minimised. It manoeuvres easily with one hand via a spring-loaded handle and locks or unlocks automatically when the opening mechanism is operated. The double-walled outer frame provides better insulation.

The inner frame is fitted with a double-blind and retractable mosquito netting to protect against solar radiation and insects. The cover is smoked for better UV protection.

Installation instructions can be found here

Included in delivery:

1x hatch with outer frame

1x inner frame with blind and mosquito net

1x fixing parts (14 fixing brackets, 4 large plastic screws)

Extra required for installation (not included in delivery):

Seal: elastic sealant, e.g. Dekalin Dekaseal 8936 or SikaLastomer®-710 sealant

Fixing: 14x fixing screws for the top frame Ø 3.5 mm and length equal to the ceiling thickness + approx. 10 mm for the screw to reach the top frame.

For installation on campers on Ducato/Boxer/Jumper chassis it is necessary to use a frame which can be purchased here

Specifications

  • Empty dimensions: 70 x 50 cm
  • Opening area: 150 cm²
  • Hatch dimensions: 81,5 x 58,3 cm
  • Height above roof:
  • For ceiling thickness: 25-60 mm
  • Maximum opening angle: 55 °
?autoplay=1" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen>

Details

Categories
Trays measuring 50 x 70 and 60 x 90 cm, Super discounts
Weight
9.95 kg
Brand
MPK
Select variant
opening with hinged lid
Size
50 x 70 cm (empty size)
