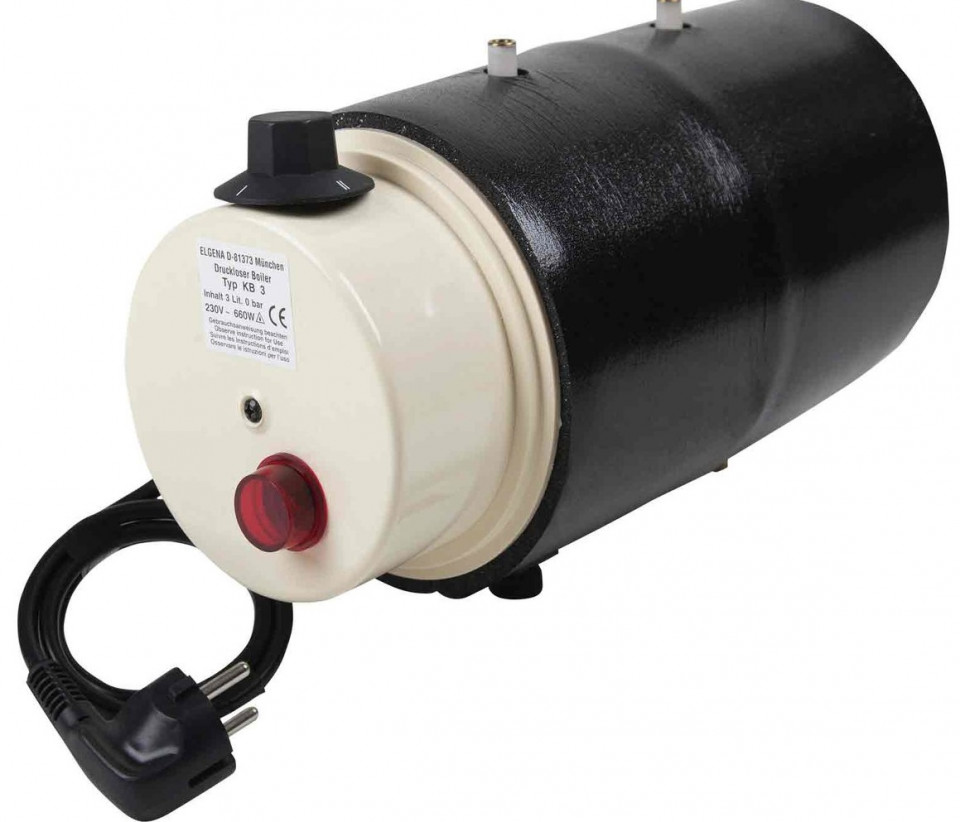

Hot water boiler Elgena KB3, 3l, 230V / 660W

Description

The Elgena KB3 is a low pressure water heater with a capacity of 3 litres that heats water from + 30° to + 80 °C in 15 minutes at 660W

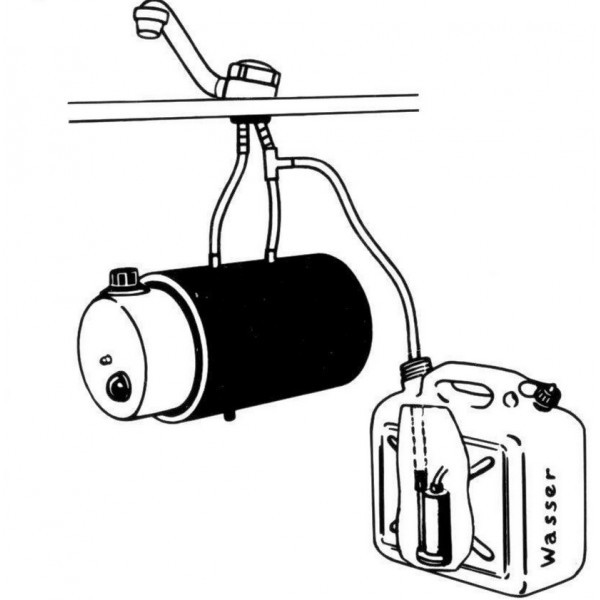

The ELGENA KB3 has been specially designed for supplying hot water to boats, caravans and motorhomes with small dimensions and can be mounted vertically on the wall. It is quick and easy to assemble and is ready for connection to the mains and to any type of submersible pump of max 0,8 bar and without directional valve. It is fitted with thermostat and frost protection for winter operation.

ATTENTION !!! This boiler is compatible with a water pump of maximum 0,8 bar installed WITHOUT directional valve !!!

This boiler version can also be installed vertically (on the wall).

Installation instructions can be found here

Specifications:

Weight: 1 kg
Dimensions (LxWxH): 30 x 16 x 19 cm
Power: 230 V - 660 W (ca.3 A)
Water volume: 3 litres
Thermostat: yes, continuously adjustable up to 80 °C
For food use
Water connection for hose ∅ 10 mm
Power connection: 1m cable with Schuko plug
