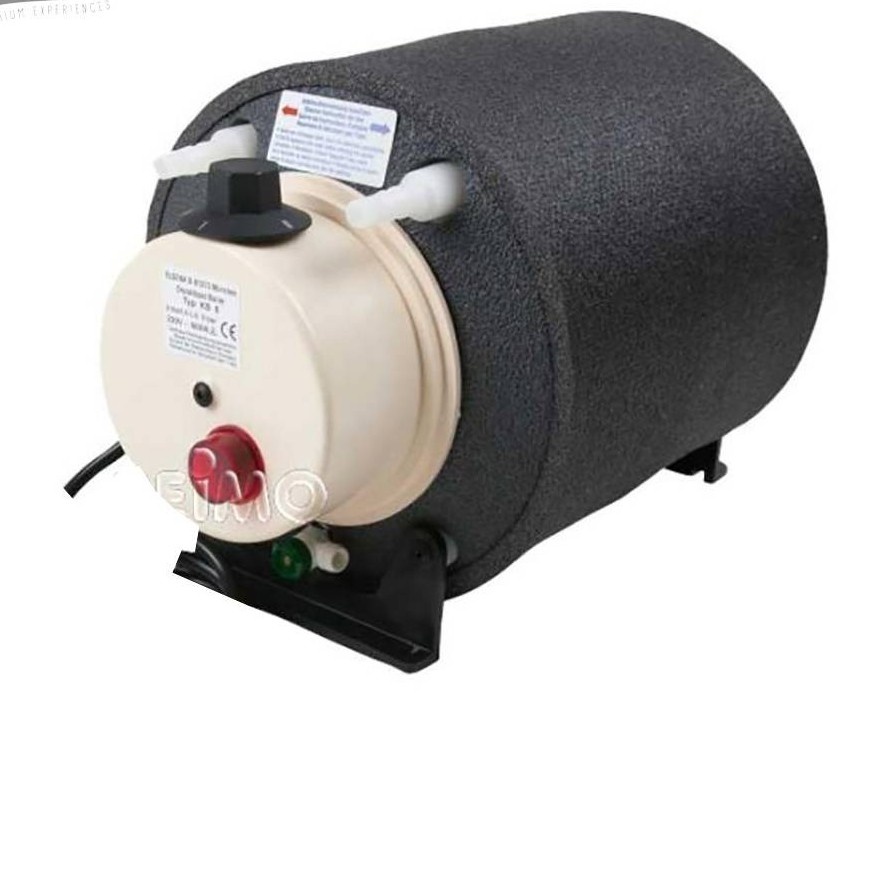

Hot water boiler Elgena KB6, 6l, 12V / 200W

Description

The Elgena KB6 is a low pressure boiler with a capacity of 6 litres that heats water from + 30° to + 80 °C. It has small dimensions and

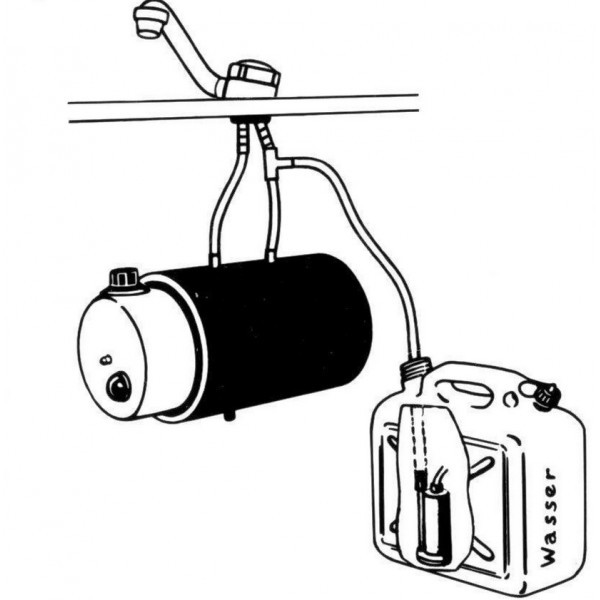

has been specially designed for supplying hot water to boats, caravans and motorhomes. It is quick and easy to assemble and is ready for connection to the mains and to any type of submersible pump max 0.8 bar and without directional valve. It is fitted with thermostat and frost protection for winter operation.

WARNING !!! This boiler is compatible with a water pump of maximum 0,8 bar installed WITHOUT directional valve !!!

Installation instructions can be found here

Specifications:

• Volume: 6 litres
• Mounting position: horizontal - wall mounted
• Heating element: stainless steel V4A / Incoloy
• Voltage / power: 12 V - 200 W (approx. 16 A)
• Heating time: approx. 15 min (55 °C 660 W)

• Connection cable: 12 V 1 m cable 2 x 2.5 mm ²
• Water temperature: continuously adjustable from 30 °C to 80 °C
• Frost protection: adjustable from 0 °C to F
• Water tank: PP plastic / for drinking water

• Insulation: PU-foam with coating
• Water connections: Ø 10 mm for hose connection
• Drain: manual drain valve
• Warranty: 5 years factory warranty
