IMASS gas boiler with instantaneous water heating, for camper, CE approved

Description

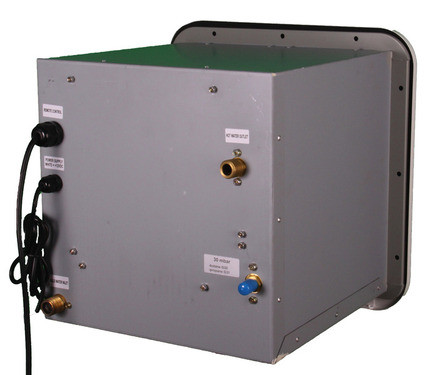

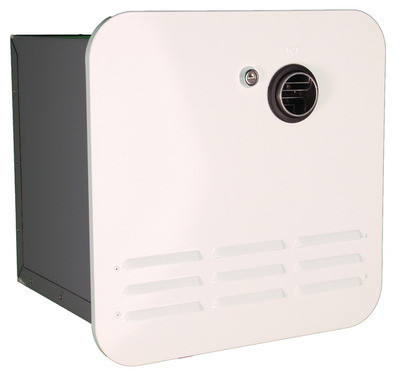

Gas boiler with instantaneous water heating for installation in motorhome. It is CE approved, heats water instantly and requires no pre-heating time. It is mounted on the outside wall of the vehicle.

The IMASS boiler has the following advantages:

• NO pre-heating of water. Hot water is produced as soon as the tap is turned on.
• There is NO limit to the amount of hot water. Thanks to the instantaneous heating, the amount of hot water is not limited, it is used as much as needed.

Installation and operating instructions can be found here

Features:

• Fitted with copper heat exchanger with up to 92% efficiency.
• Burner output: 10 KW
• Gas consumption up to 60 % lower than tank boilers: no need to constantly reheat the water (absolute silence at night)

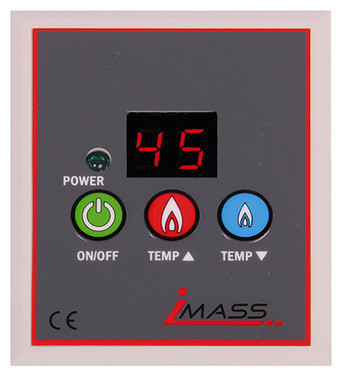

• Variable water temperature selection from 35 to 60°C from the control panel
• No problems with corrosion, bacteria in the tank etc
• Low weight as there is no tank


Specifications:

Gas pressure: 30mbar
Burner power min/max 5/10 kW
Adjustable water temperature : 35 to 60°C i
Water flow min / max: 1,5 / 5 l/min
Water pressure min / max: 0,5 / 5 bar
Max gas consumption: 765 g/h
92% Efficiency
5,0 bar max water pressure
12V connection required / consumption 0,44 A
Installation dimensions: 32 x 32 x 32 x 32 x 32 cm
Weight 12,1 kg
