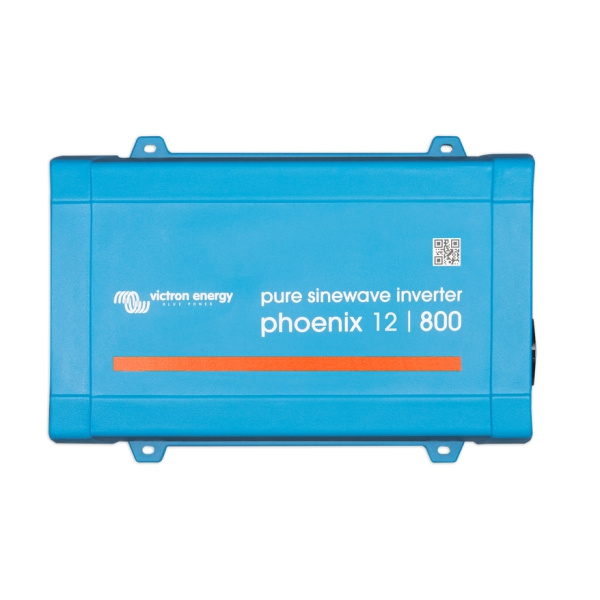

Inverter 12V / 220V 1500 W maximum Victron Energy Phoenix Inverter 12/800
Description
Inverter 12V / 220V 1500 W maximum Victron Energy Phoenix Inverter 12/800. The inverter connects directly to the battery and provides voltage conversion from 12V DC to 220V AC. This Victron Energy inverter allows you to power household equipment requiring 120VAC or 230VAC, using leisure or automotive batteries rated at 12-Volt DC.The pure sine-wave output provides 800VA continuous power, 1500 Watt peak power with high efficiency, 1-Watt consumption in no-load ECO power mode. This inverter can be operated and monitored using computers, tablets and smartphones thanks to the VE.Direct communication port (cables and dongles sold separately). The high starting power is used to switch on equipment that requires high loads, such as power converters for LED lamps or power tools. In ECO mode, the inverter will switch to standby when the load decreases.
Datasheet can be downloaded here
Specifications
- Dimensions: 305x216x105 mm;
- Weight: 5,5 kg;
- Power at 25°C: 800VA;
- Power generated at 40°C: 560W;
- Peak power: 1500W;
- Output voltage / frequency: 230VAC +/- 3%; 50Hz +/- 0,1%
- Input voltage: 9.5 - 17 V;
- Maximum efficiency: 90%;
- Power at zero load: 8W
- Minimum battery capacity: 150A
- Battery cable dimensions (not included): 0 - 1.5m: 25 mm²
- Operating temperature range: -40 to +65°C (fan cooling);
- Humidity: maximum 95%;
- Standards: EN 60335-1 / EN55014-1 / EN 55014-2
Details
Delivery
Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
