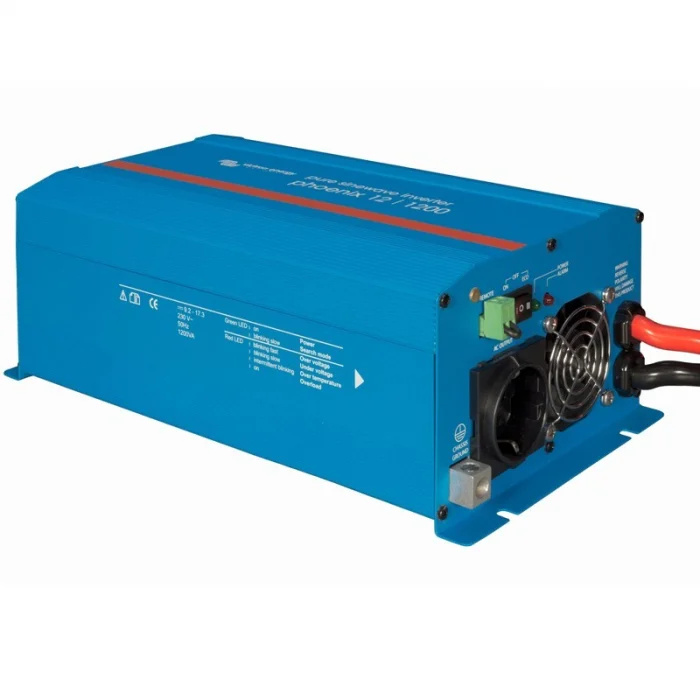

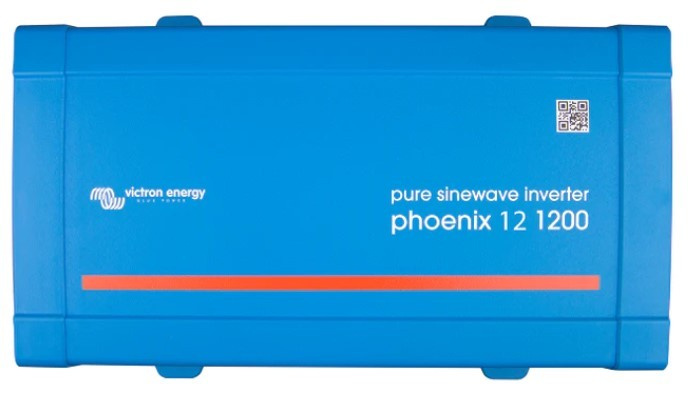

Inverter 12V / 220V 2200 W max Victron Energy Phoenix Inverter C 12/1200

Description

Inverter 12V / 220V 2400 W maximum Victron Energy Phoenix Inverter C 12/1200. The inverter connects directly to the battery and provides voltage conversion from 12V DC to 220V AC.This Victron Energy inverter allows you to power home equipment requiring 120VAC or 230VAC, using recreational or automotive batteries rated at 12-Volt DC.The pure sine wave output delivers 1200VA continuous power, 2200-Watt peak power with high efficiency, with 1-Watt consumption in no-load ECO power mode. This inverter can be operated and monitored using computers, tablets and smartphones thanks to the VE.Direct communication port (cables and dongles sold separately). The high starting power is used to switch on equipment that requires high loads, such as power converters for LED lamps or power tools. In ECO mode, the inverter will switch to standby when the load decreases.

Features:

Low battery voltage alarm activation and reset to preset voltage levels
automatic battery disconnection for low battery voltage and automatic restart on preset voltage levels

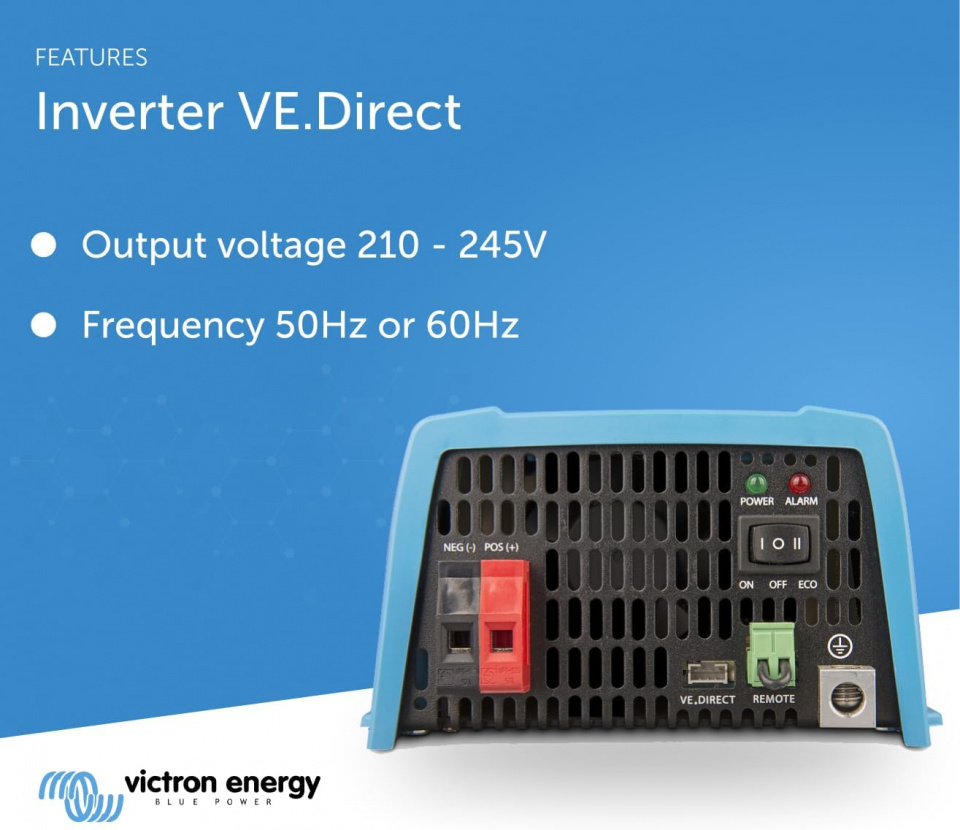

variable output voltage 210V - 245V
variable frequency 50Hz or 60Hz
ECO mode on/off with possibility to set it on sensitivity levels
complete diagnosis of possible faults on the basis of sequences of switching on of the working leds
short-circuit protection
overheating protection which can be due to overload or high ambient temperature

Datasheet can be downloaded here

Specifications
