Kemo Electronic M227 Tank water level indicator 20 - 50 cm high, 10 levels

Description

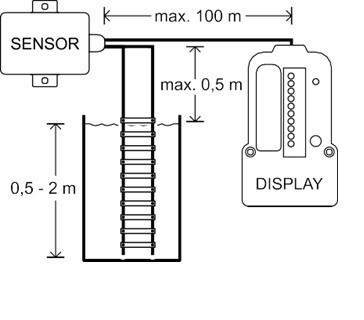

Level gauge for measuring the water level in water tanks (works also for dirty water) or any other non-flowing liquids. The display is realised by means of 10 LEDs in 10 levels, each level representing 10%. The sensor module can be mounted on the wall at a distance of max 0.5 m from the tank, and the display panel at a distance of max 100m from the sensor module.

The connection cable is not included and must be purchased separately.

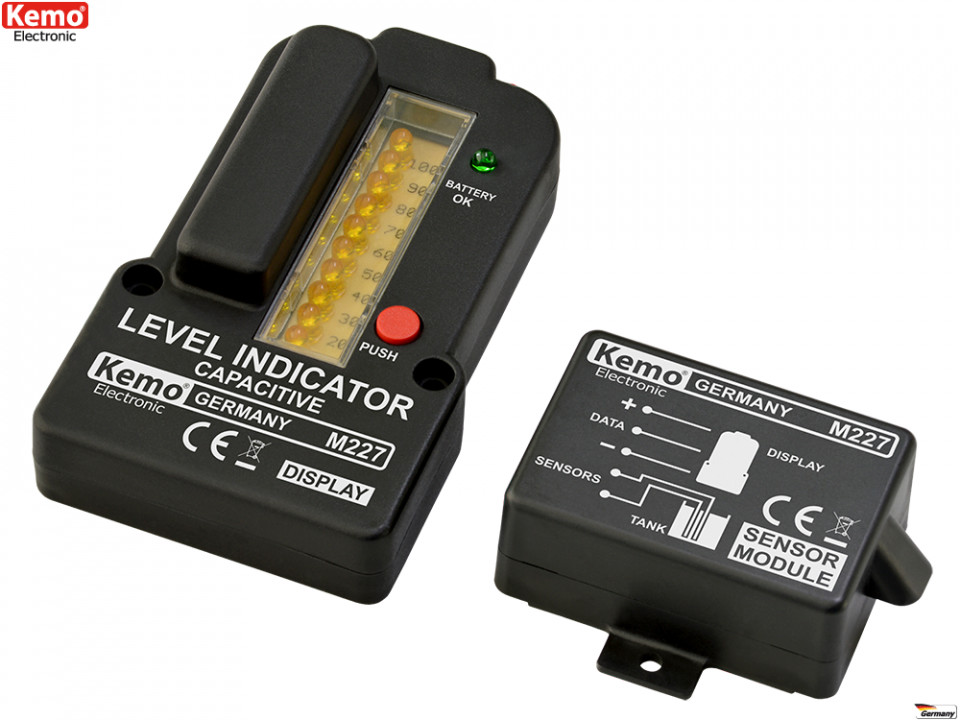

The package contains:

1 sensor module
1 control panel with display

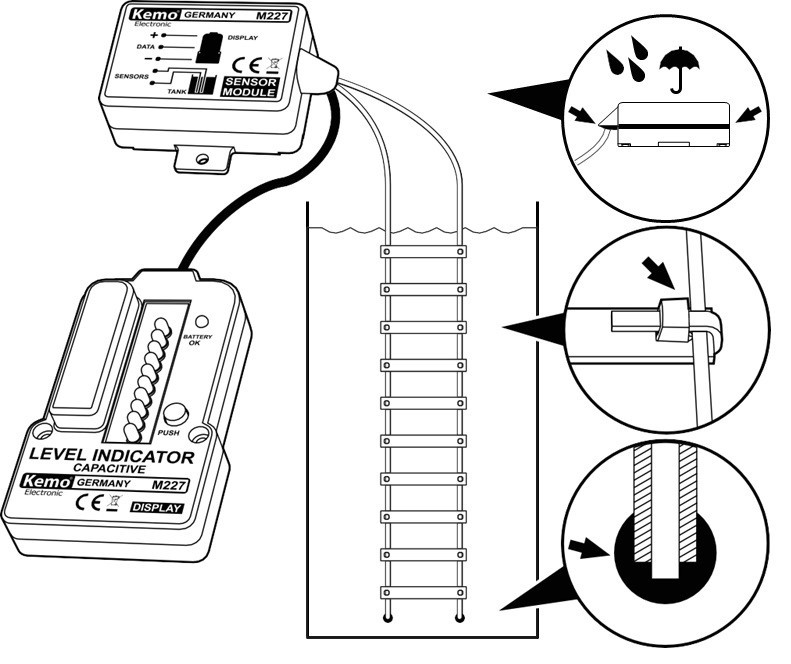

10 measuring rods for immersion in the tank
20 plastic quick clamps

Must be purchased separately:

-1 9V battery

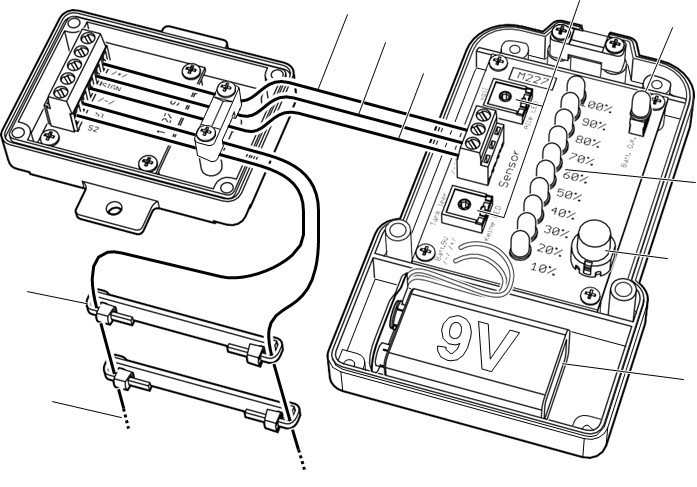

- connection cable between sensor module and tank: 2 x 1 insulated cable (0.25 - 1 mm²), length must correspond to the measuring area in the tank (0.5 - 2m) + distance between sensor module and tank.
- cable between sensor module and display panel (0.1 - 0.3 mm²), max 100m

Specifications:

Operating voltage: 9 V block battery
Display duration: As long as test button is pressed
Current consumption: Only as long as test button is pressed: approx. 10 - 20 mA (depending on how many LEDs light up)
Measuring principle: capacitive (the capacitance between the two measuring leads changes when the liquid level changes) n

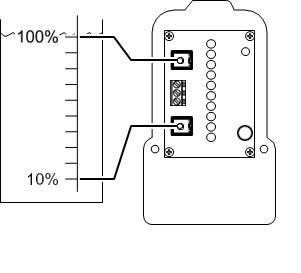

Display: 10 LEDs corresponding to 10 units: 0 = 0% / 10 = 100%.
Accuracy: approx. 10%.
Measurable filling height: approx. 0.5 - 2 m
Maximum cable length between sensor module and display unit: 100 m
Display dimensions: approx. 131 x 78 x 36 mm
Dimensions Sensor Module: approx. 83 x 51 x 32 mm (without fixing straps)
Weight: 270g
