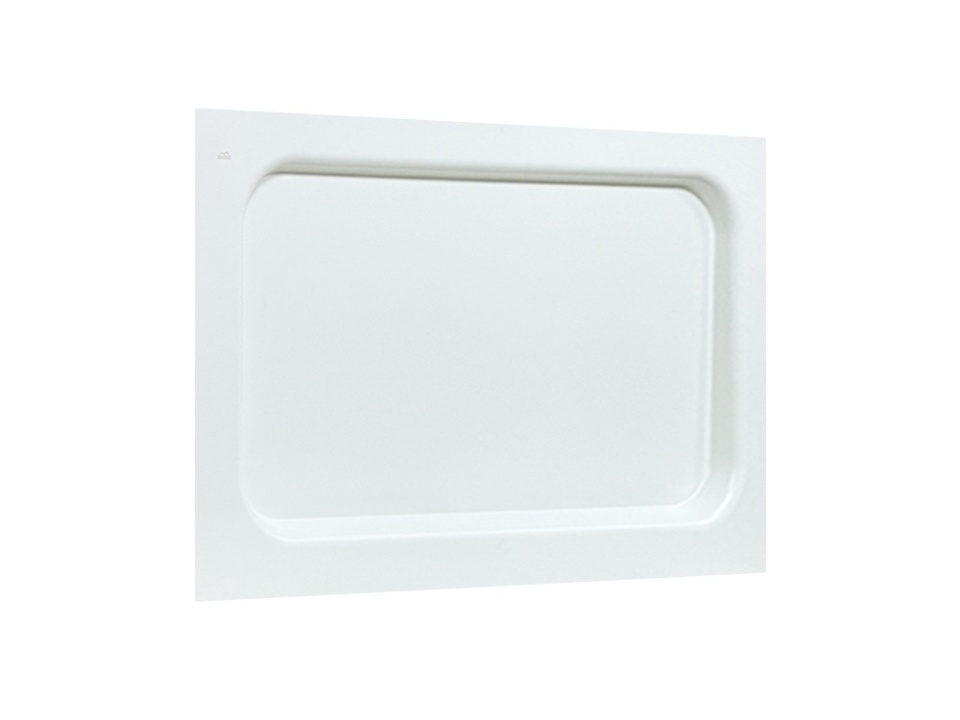

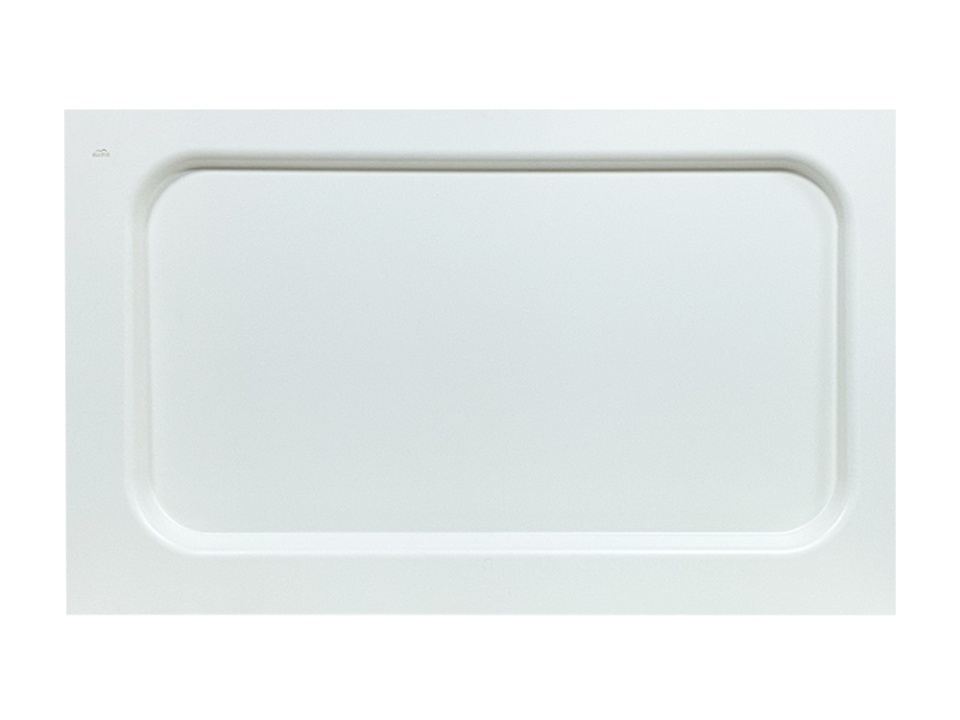

Left centre panel Ducato, Boxer, Jumper 133 x 80 cm
Description
Panel for left centre area (behind driver's seat, opposite sliding door) Ducato, Boxer, Jumper, H2/H3 - L2/L3/L4, 2007 - 2023.
MASIS panels are designed to fit into the specified space precisely. The panels are easy to install, the manufacturer's recommendation is to attach them to the vehicle using self-tapping screws which can be purchased separately from here
There is a 25 - 30 mm gap between the panel and the outside wall of the vehicle, which is necessary for the insulation and the window frame. To install the window: first cut out the required gap in the wall of the vehicle and in the Masis panel; make a wooden frame to be placed between the Masis panel and the outside wall; then mark and cut out the required gap in the panel
Specifications:
Material: ABS 3 mm
Max window size (void): 1000 x 500 mm
Storage compartment dimensions: 400 x 130 x 60 mm / 520 x 150 x 60 mm
Distance between new panel and vehicle wall: 25-30 mm (for insulation and window frame)
ATTENTION !!! Due to the size, this product has a fixed transport charge of 20 RON
Details
Delivery
Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
