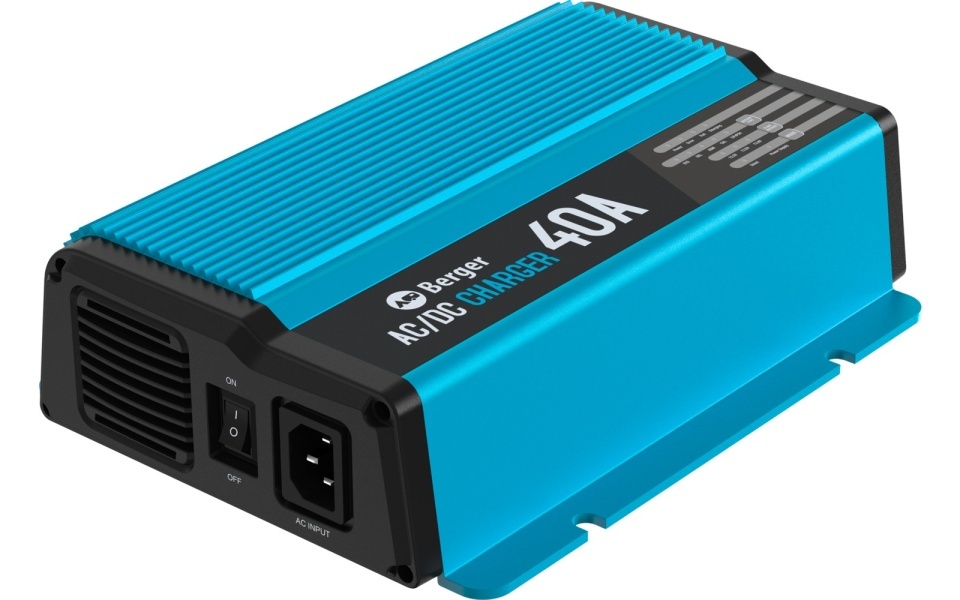

Mains charger Berger BCA40, 220V / 12V, with cables included, 40A

Description

The Berger BCA40 charger is a mains charger for charging batteries from 230V mains. . With an efficiency up to 90 %, these rectifiers are provided with 3 charging steps.

Features:

Details:

• compatible with lead-acid and LiFePO4 batteries
• 3 charging steps for battery efficiency and durability: maintenance voltage, power and temperature compensation
• protection against overheating, short circuits, reverse polarisation
• silent: with silent cooling fan
• aluminium housing with pre-drilled holes, protection class IP20
• Efficient: over 90 % efficiency


Specifications

• Input voltage and frequency: 220-240 V
• Standby power consumption: 5 W
• Rated output current: 12 V 40 A
• Current consumption: 1 mA
• Operating temperature: -25 °C to +45 °C
• Dimensions (LxWxH): 28.6 x 19 x 7.2 cm
• Weight: 1.7 kg

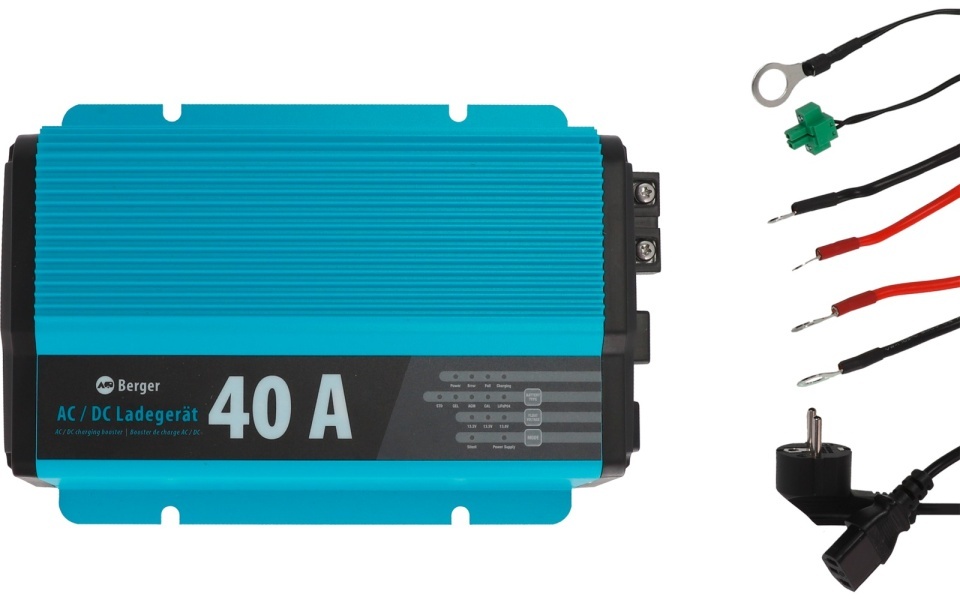

Package contents: charger, input cable, output cable, temperature compensation cable

The min/max charging current is specified in the individual specifications of each battery model and is generally:

10A for 15 - 100 Ah batteries
15A for batteries 20 - 150 Ah
20A for batteries 25 - 200 Ah
30A for batteries 45 - 280 Ah
40A for batteries 50 - 400 Ah
