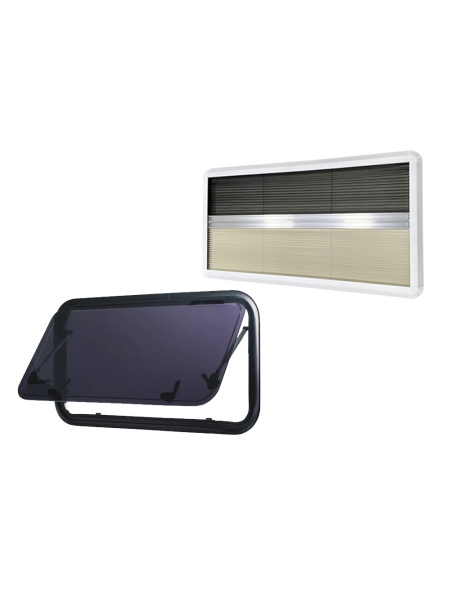

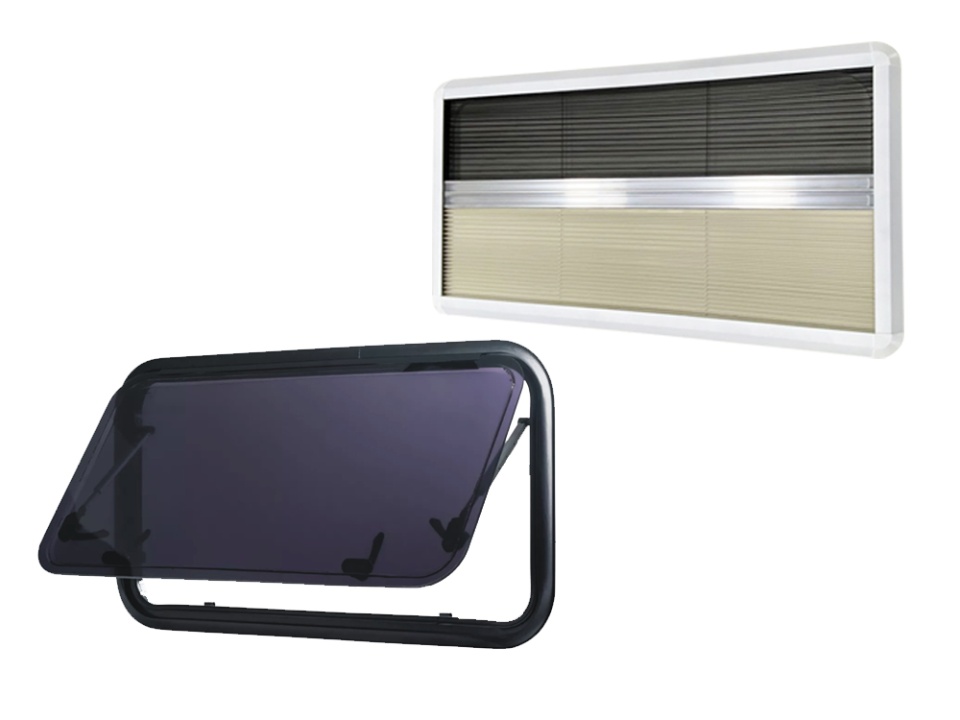

MASIS aluminium-framed window with built-in blind, 850 x 450 mm

Description

WINDOW:

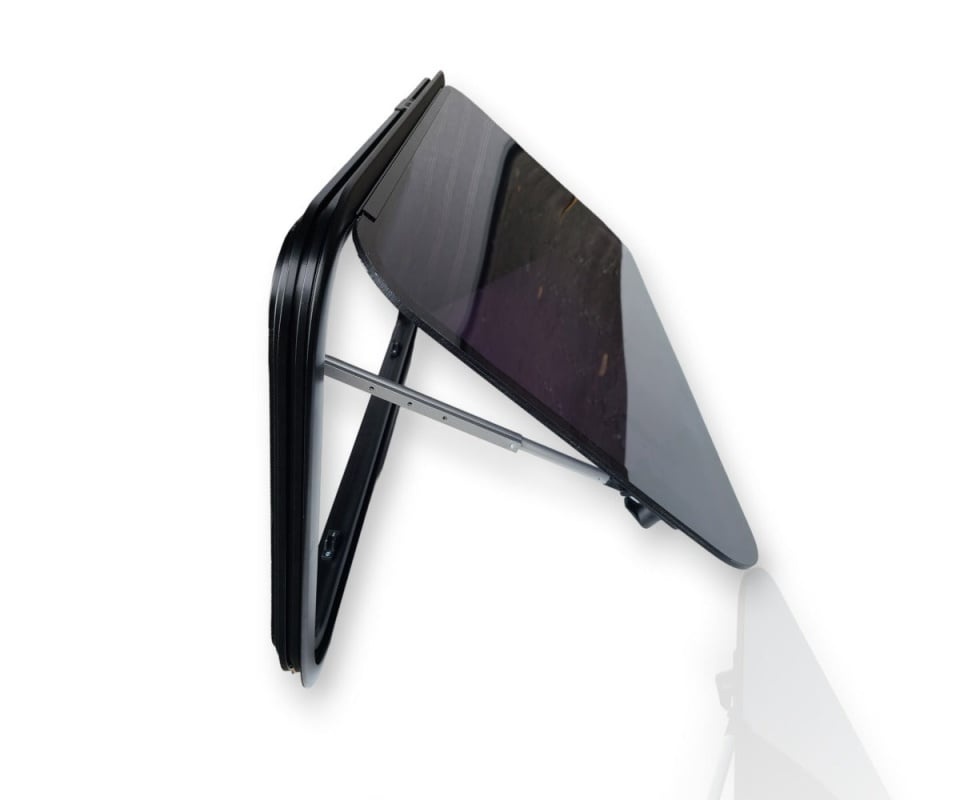

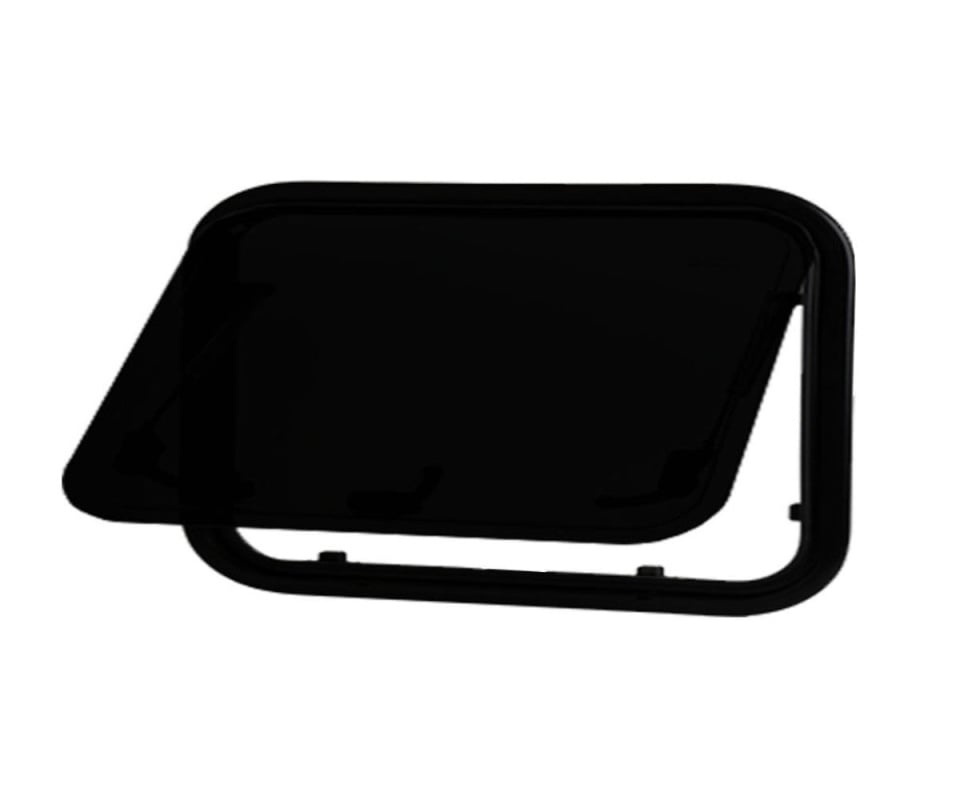

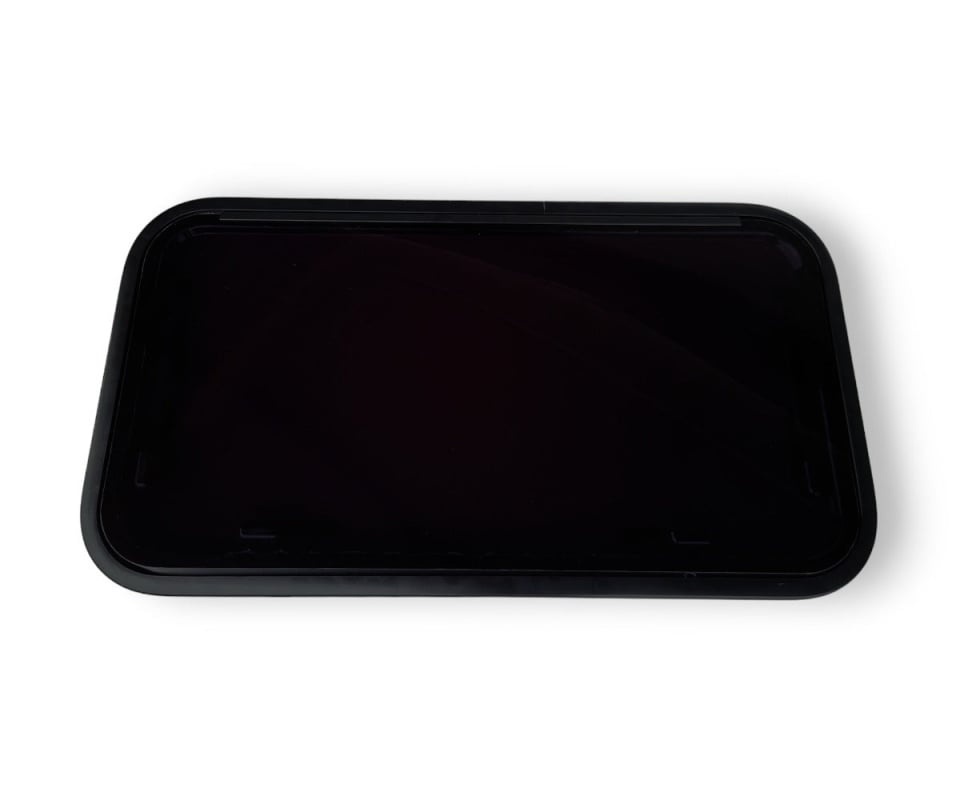

MASIS aluminium-framed window, 850 x 300 mm. MASIS windows feature a black aluminium frame and double acrylic glazing. This size is typically used in the rear area where the bed is located. In this version, the arms have a 3-position click-clack mechanism and allow the window to open to an angle of 70°.

The standard gap between the window and the installation opening must be 1.5 mm, and the minimum wall thickness must be 26 mm. To ensure the required thickness, you can construct a wooden frame, particularly if you are using a MASIS panel for the interior.

Specifications:

Overall dimensions (mm): 880 x 480 x 40
Installation dimensions (opening): 850 x 450 mm
Window dimensions: 810 x 410 mm
Corner radius: 80°
Opening angle: 70°
Wall thickness: 25–30 mm (± 2 mm)
UV
protection Panes: acrylic
glass Colour: light
black Black

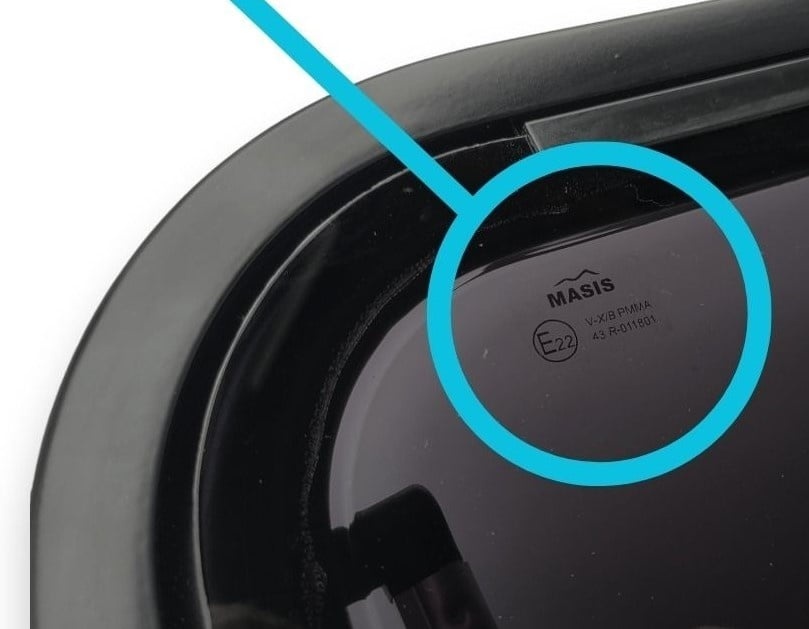

aluminium frame Marking: CE 43R

BLIND:

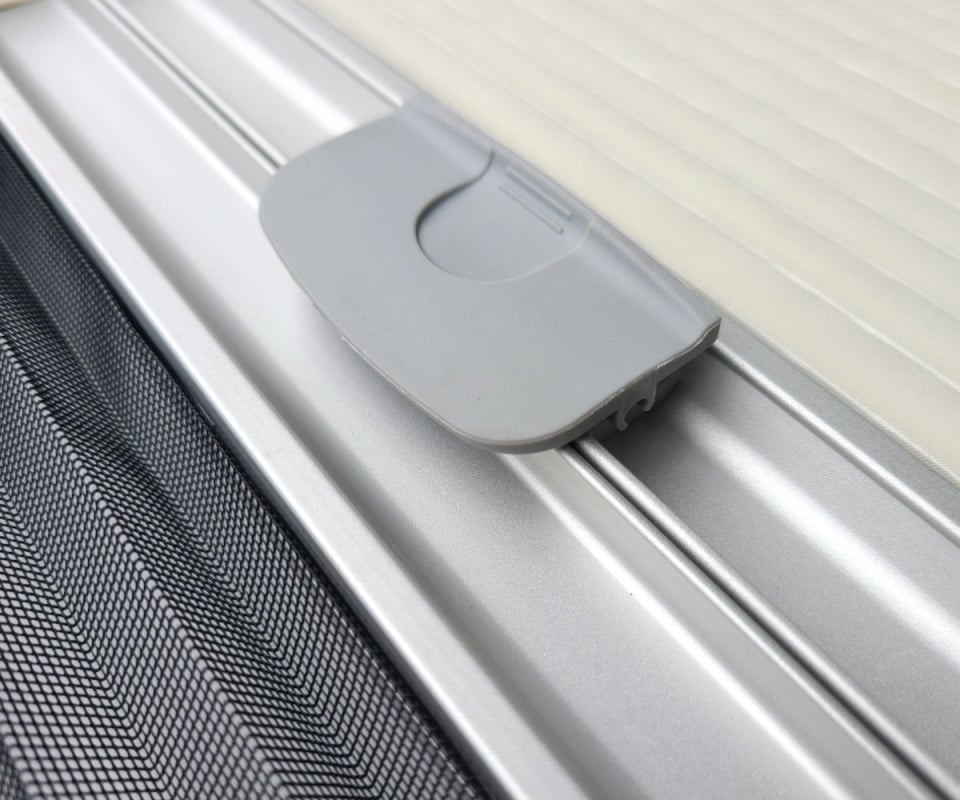

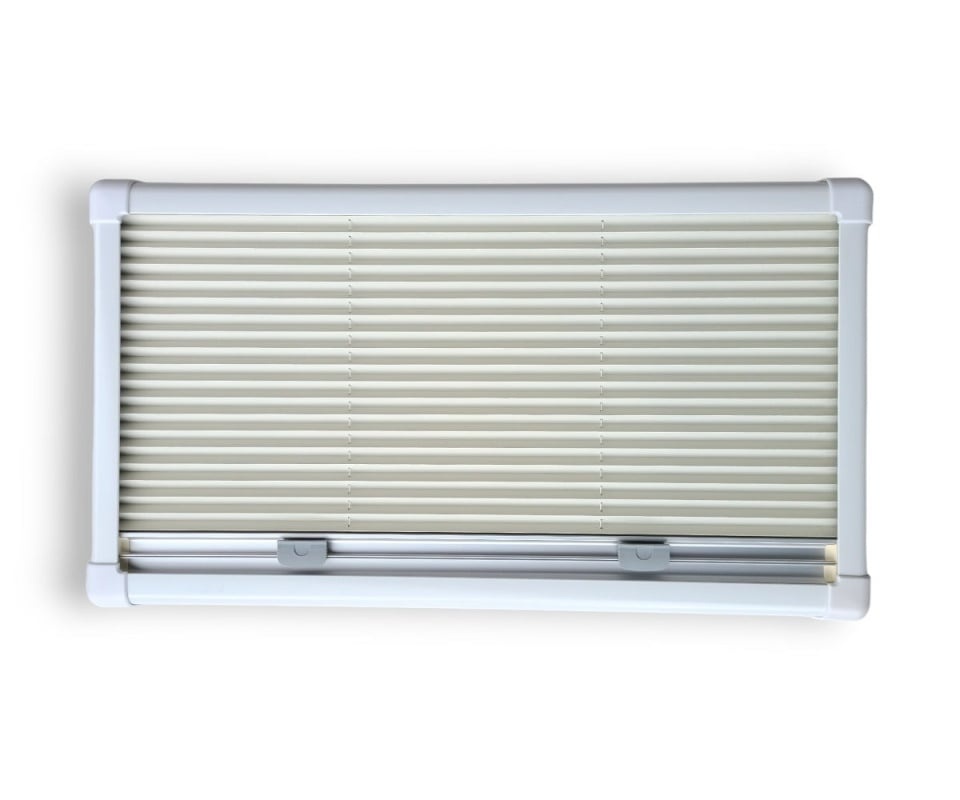

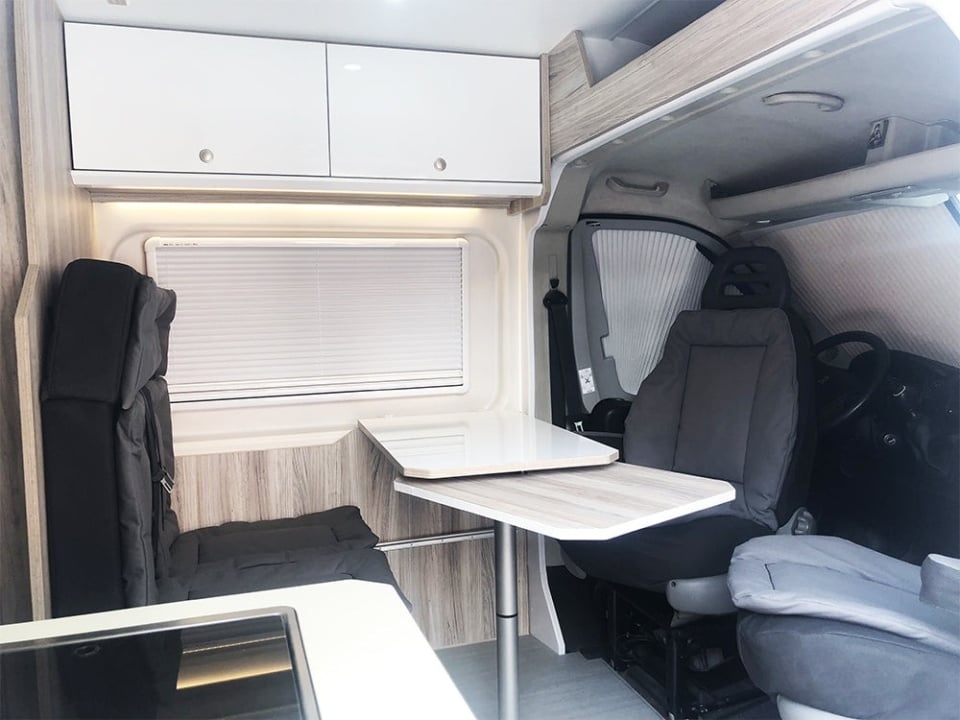

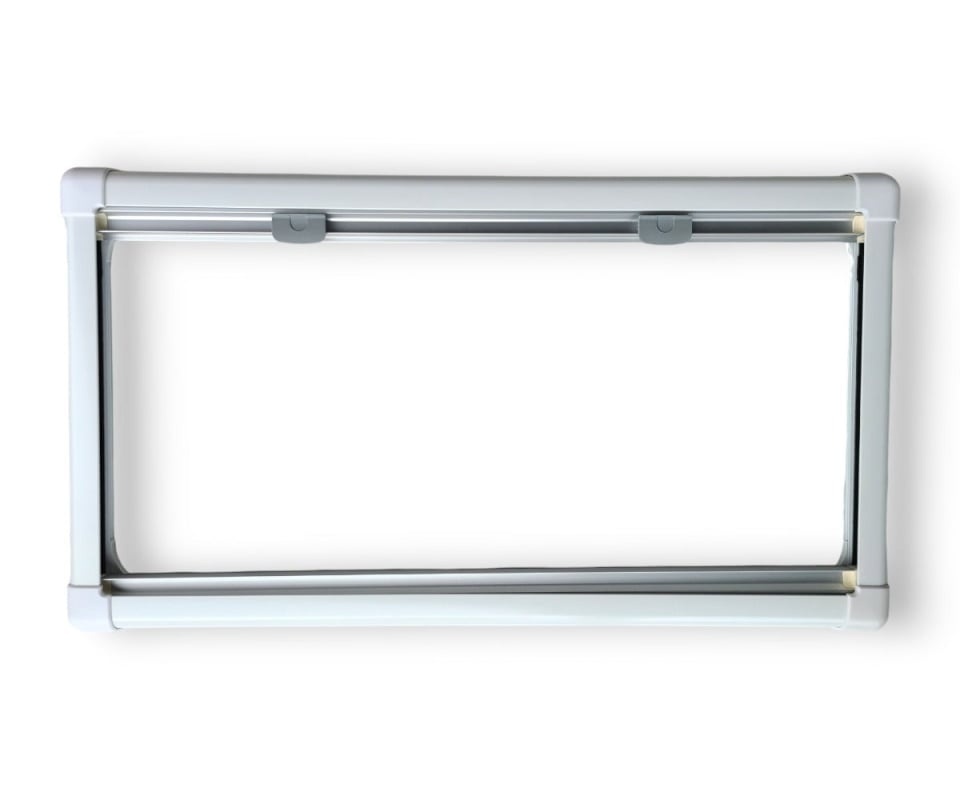

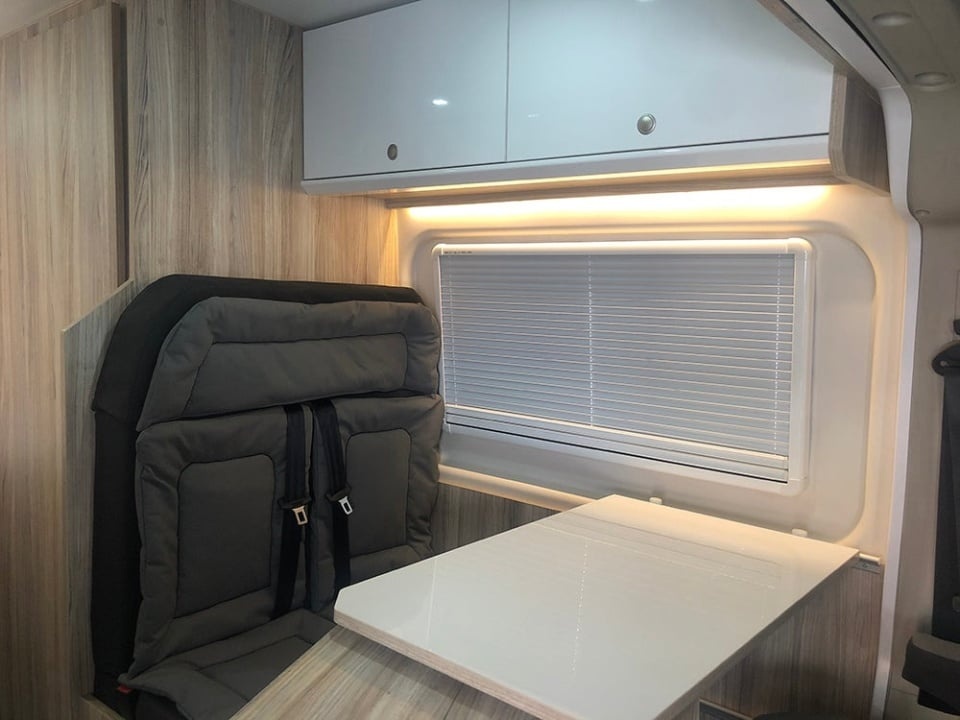

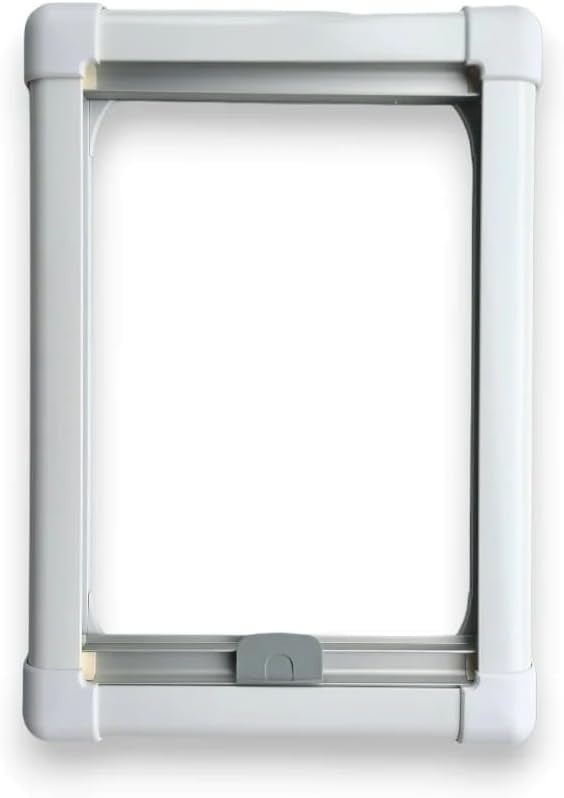

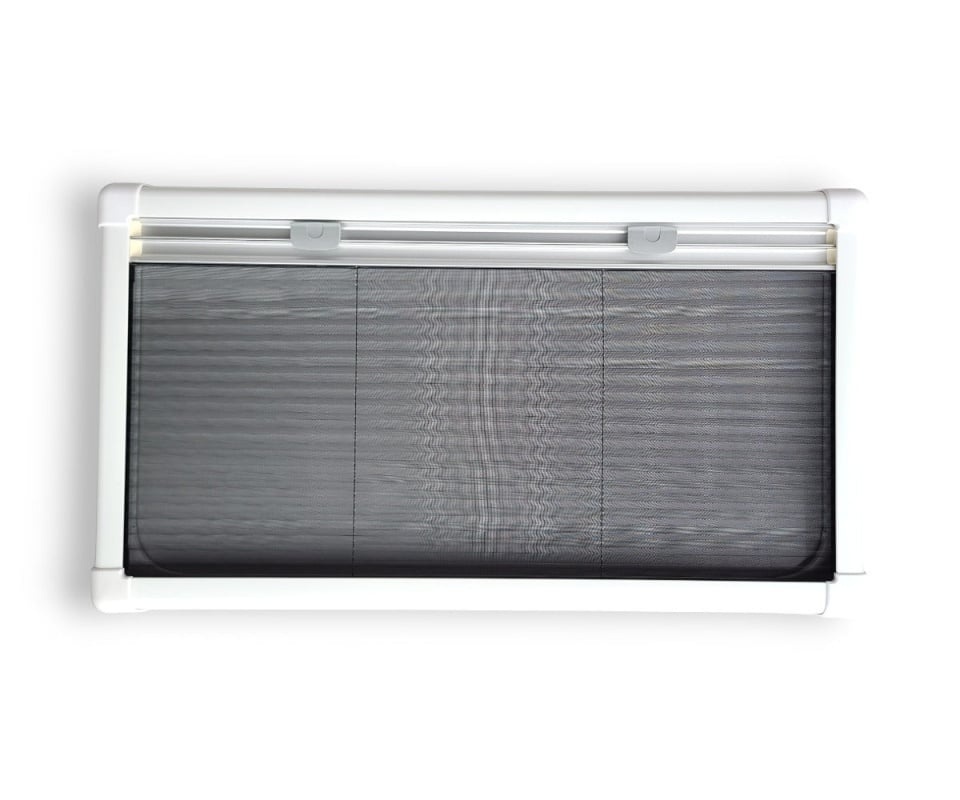

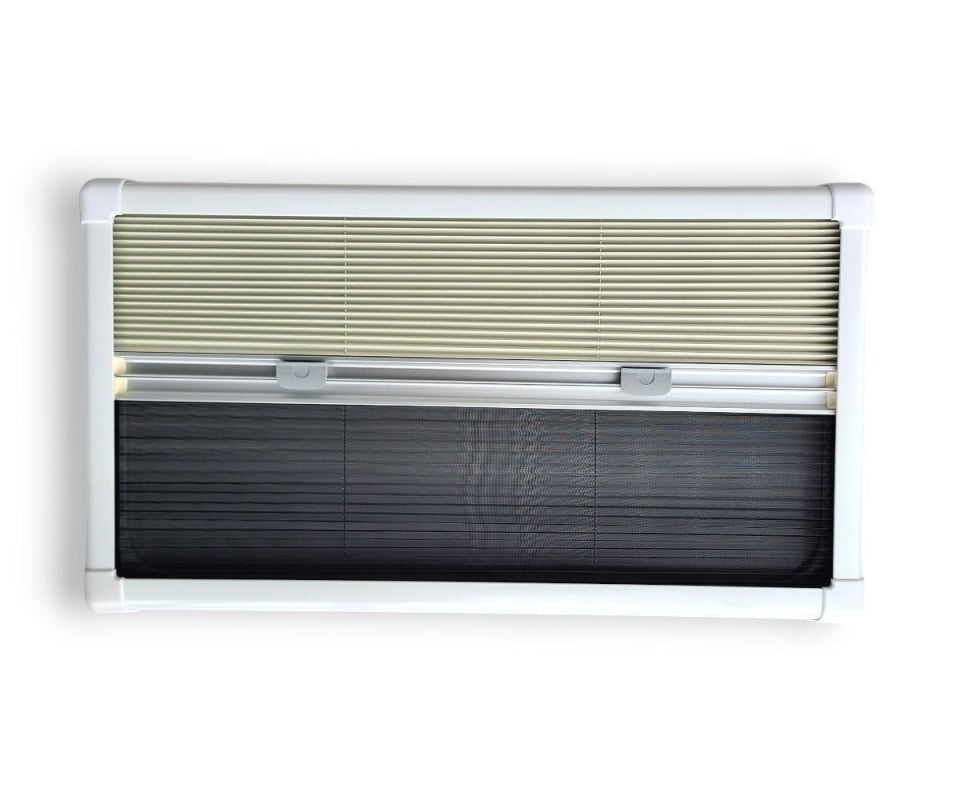

Blind and mosquito net cassette 850 x 450 mm (overall dimensions including frame are 900 x 500 mm). The blind and insect screen are adjustable independently of each other. Masis blackout blinds with integrated mosquito net provide effective protection against light and insects. They fit perfectly into the side windows of motorhomes and caravans, offering functionality and an elegant design.

Features

• Blackout blinds with reflective backing. The blinds have a reflective outer surface and reflect strong sunlight, preventing the vehicle from overheating.
• Effective mosquito net. The integrated mosquito net is an essential feature that prevents insects from entering.

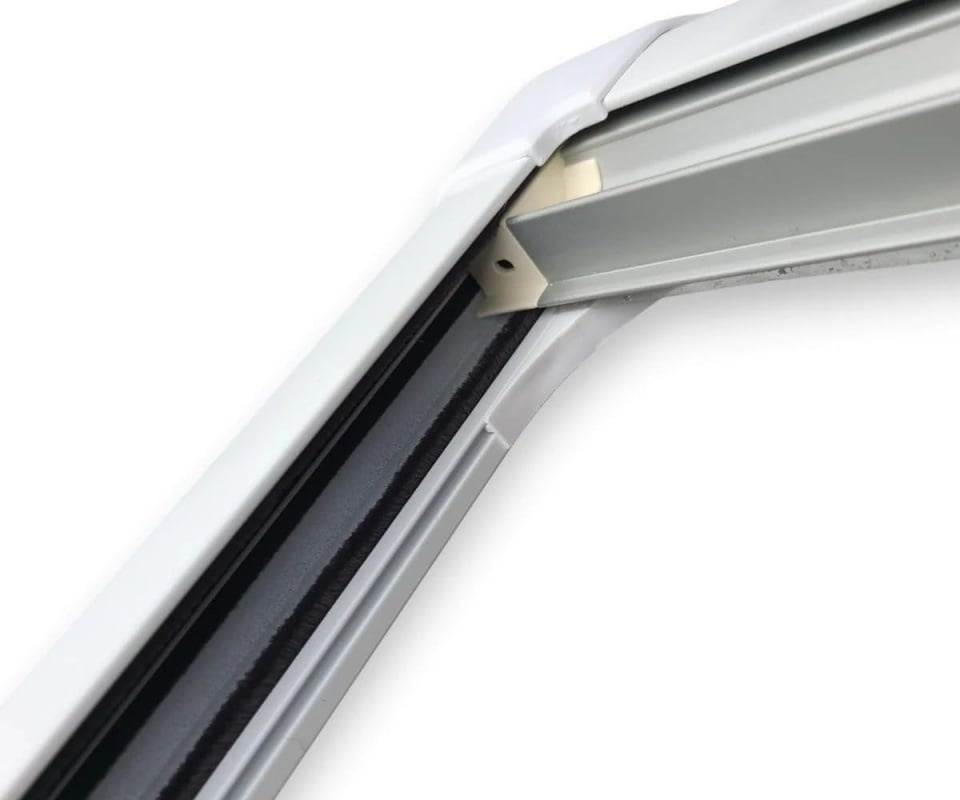

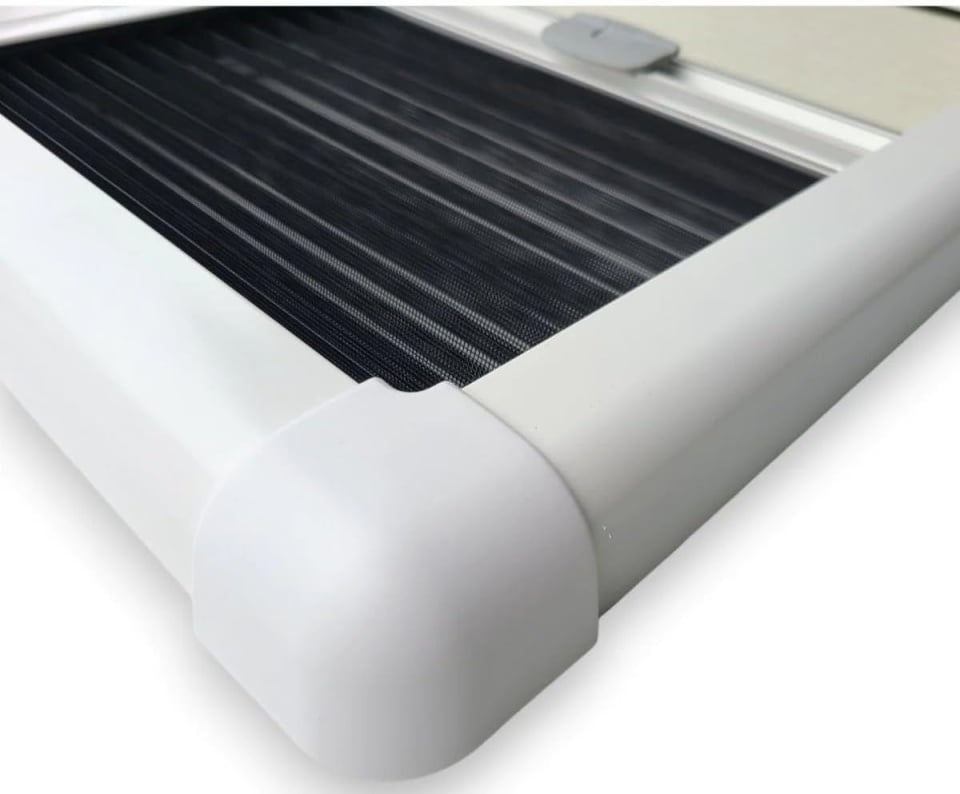

• High-quality aluminium frame and clean installation. The cassette frame is made of aluminium and is installed by securing it with screws at each corner.

Specifications:

• Internal dimensions: approx. 814 x 413 mm
• External dimensions: approx. 900 x 500 x 37 mm (H x W x D)
• Material: Aluminium frame
