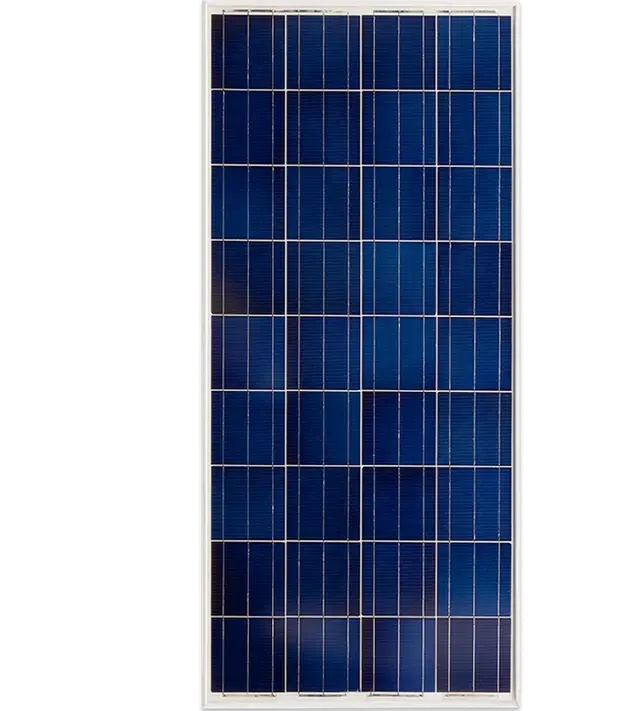

Monocrystalline photovoltaic panel 185W, Victron "Blue Solar"

Description

Monocrystalline photovoltaic panel 185W, Victron "Blue Solar".

Features:

- Low voltage-to-temperature coefficient improves operation at high temperatures.
- Exceptional low-brightness operation with high light sensitivity across the full spectrum of sunlight.
- 25-year warranty on power output and performance characteristics.
- 5-year warranty on materials

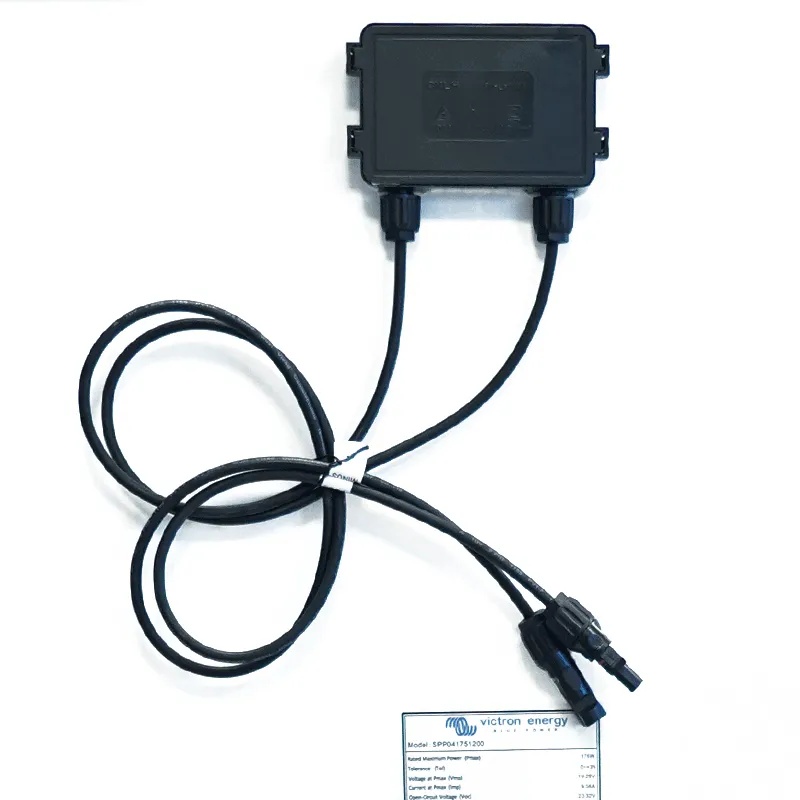

- Water-resistant, watertight multi-functional junction box provides a high degree of security
- High power bypass diodes minimise shadow-induced performance degradation.
- Enhanced EVA (ethylene-vinyl acetate) encapsulation with three-layer base plate fulfils the most stringent safety requirements for high voltage operation.

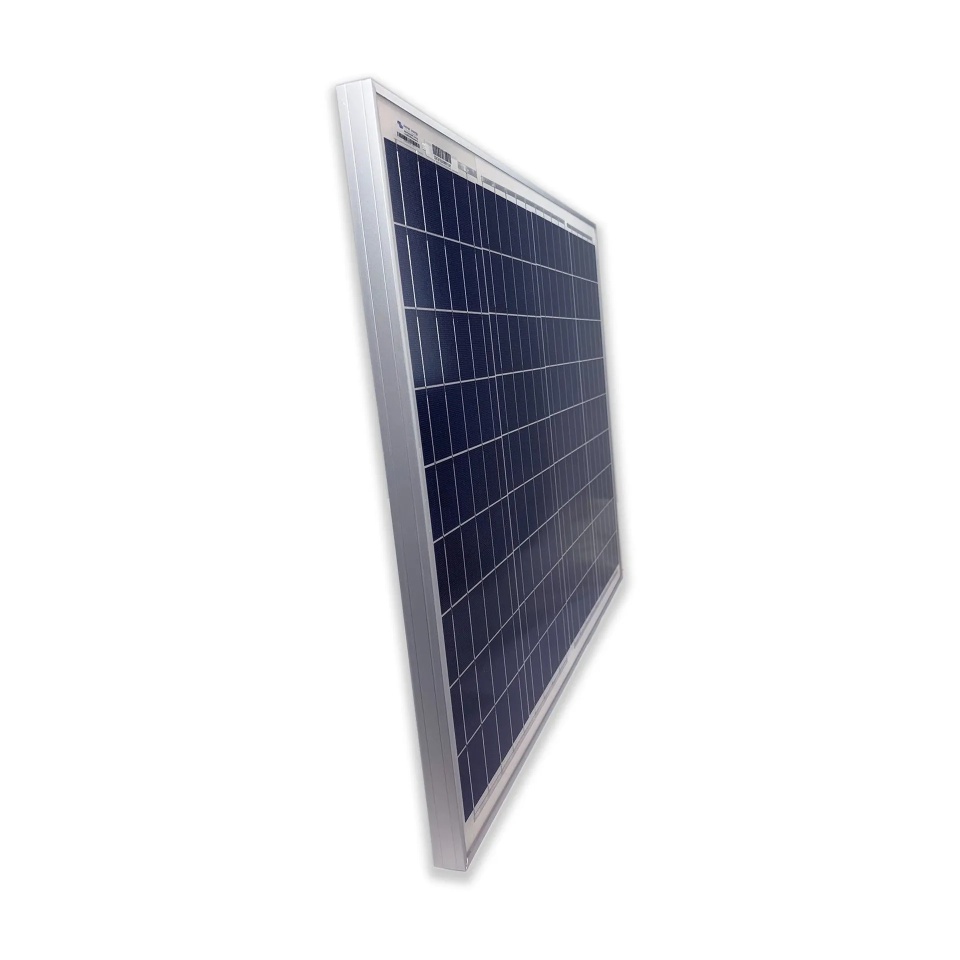

- Robust anodised aluminium frame ensures that the modules can be roof mounted using a range of standard mounting systems - High translucency, top quality treated glass with high translucency provides increased rigidity and impact resistance

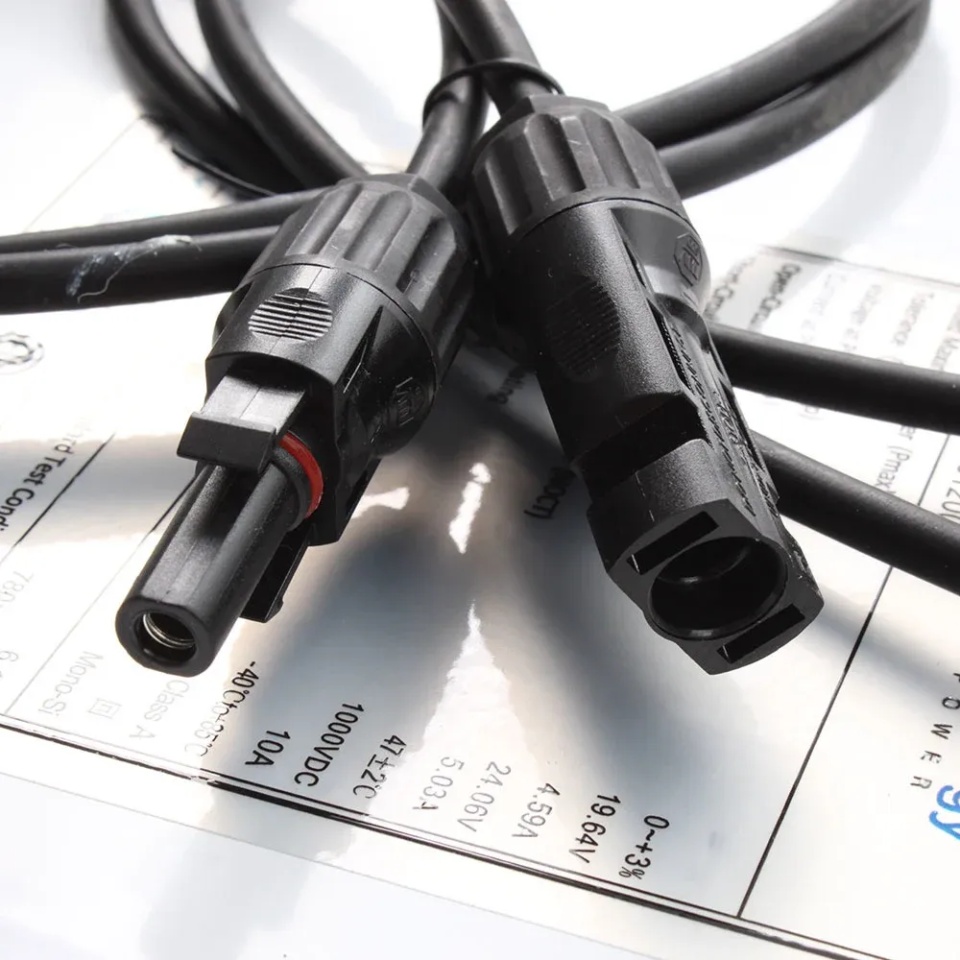

- Factory wired quick-connect system with PV-ST01 connectors.

Panel Specifications:

• Maximum Rated Power (Pmax): 185 W
• Maximum Voltage (Volts): 19.68 V
• Max Current (Imp): 9,41 A
• Dimensions: (L x W x H): 148.5 x 66.8 x 3 cm
• Weight: 9,1 kg
  Operating range: -40°C +85°C
• Manufacturer warranty:
  • 25 years at 80% of capacity
  • 5 years for manufacturing defects

Full datasheet you can download here

ATTENTION !!! Due to the size, this item has a fixed transport cost of 30 RON

Fixing brackets must be ordered separately:

• Corner profiles and if necessary connection profiles for 2 panels
• Aluminium profiles
• Set of profiles with cable feed through the ceiling
• It is recommended to glue on the caravan or caravan with "Dekasyl MS-5" or Sikaflex 554 adhesive.
