Mounting package for DC-DC and solar charging of lithium batteries

Description

Mounting package for DC-DC or solar charging of lithium batteries. It is an all-in-one solution designed to optimise lithium battery charging in your caravan or motorhome. This package includes all the necessary elements to ensure an efficient and reliable connection to the alternator and solar panels, thus guaranteeing optimal performance of your electrical system.

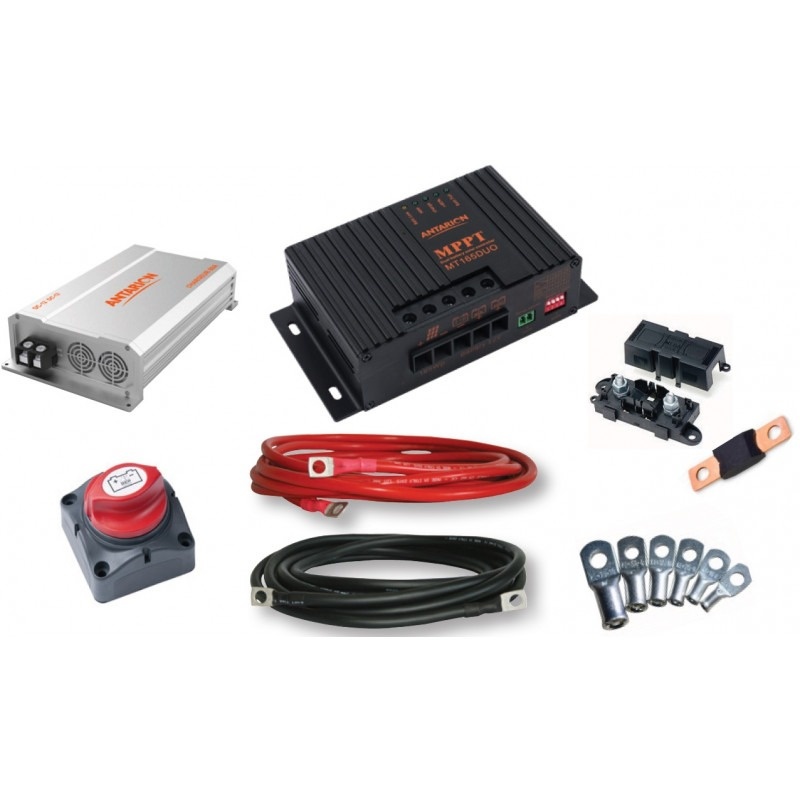

The pack contains:
- 8 metres of red cable and 8 metres of 16mm² black cable
- 4 lugs Ø 8 mm and 6 lugs Ø 6 mm
- 1 DC/DC charger 40 A
- 2 fuse holders and 2 60 A fuses
- 1 solar panel regulator ANTARION MPPT 15 A
- 1 battery switch with cable and terminals
- 1 connection bar 600 A (busbar)

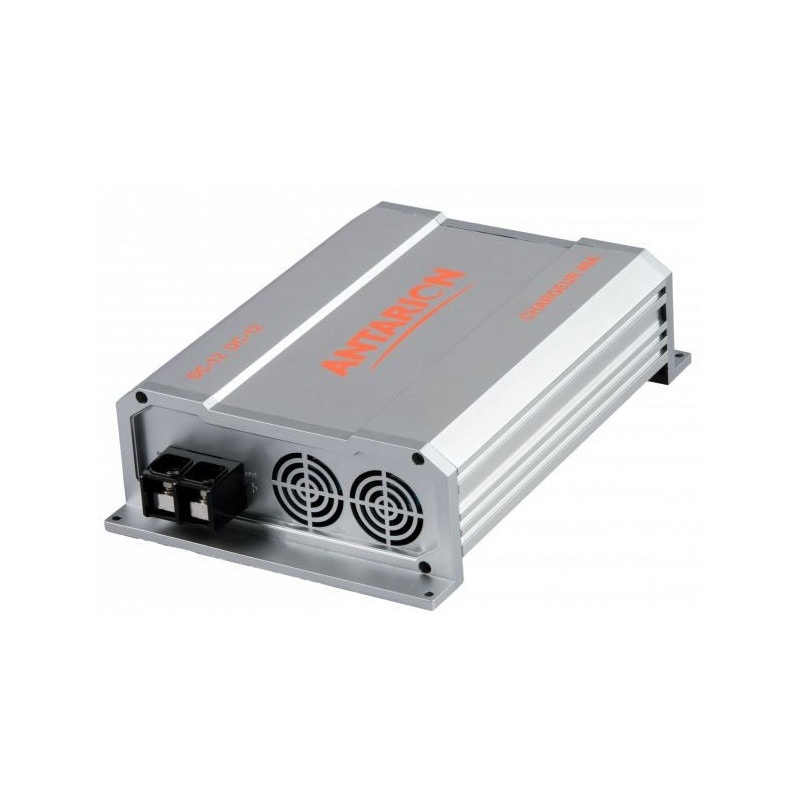

The ANTARION DC-DC40 charger is compatible with 100% of vehicles with alternator, including EURO 6 equipped with intelligent alternators. It ensures optimal charging of the auxiliary battery while the engine is running. This DC DC charger adapts to any type of battery: acid, gel, AGM or lithium, thanks to its adjustable IUOU charging feature.
Features:
- Enhances charging while driving by utilising the energy supplied by the alternator
- Adjustable charging voltages and parameters via front panel DIP switches
- Quick and easy to install
- Integrated over-voltage, under-voltage and short-circuit protection
- Compatible with all vehicles, including EURO standard vehicles
Specifications:
Charging current: 40A
Load transformation 12 V => 12 V
Input voltage 8V - 16V
Efficiency: 90
No load current consumption: < 0,4 A
Dimensions: 260 x 175 x 68 mm
Distance between mounting holes: 25 x 16.5 cm
Weight: 1,9 kg
