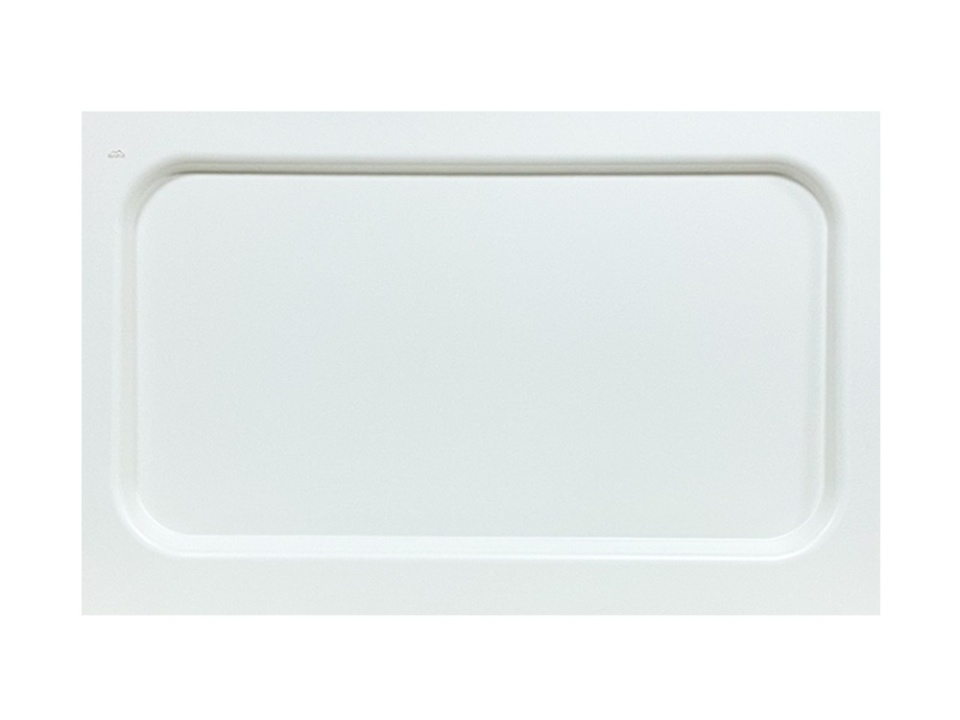

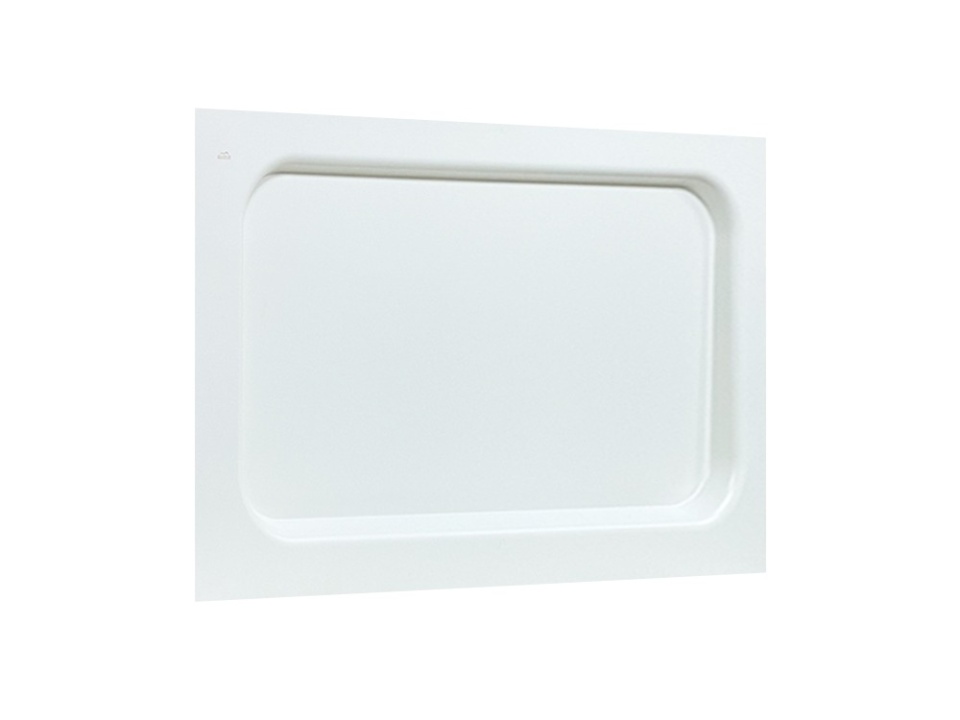

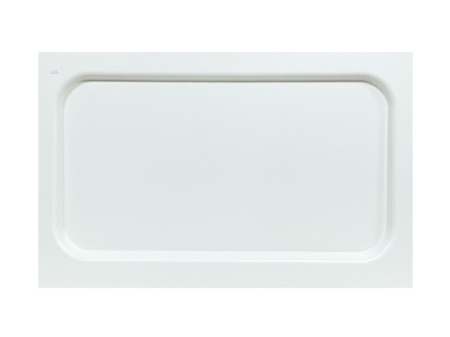

Panel for rear LEFT PAT area Ducato, Boxer, Jumper, 128 x 80 cm
Description

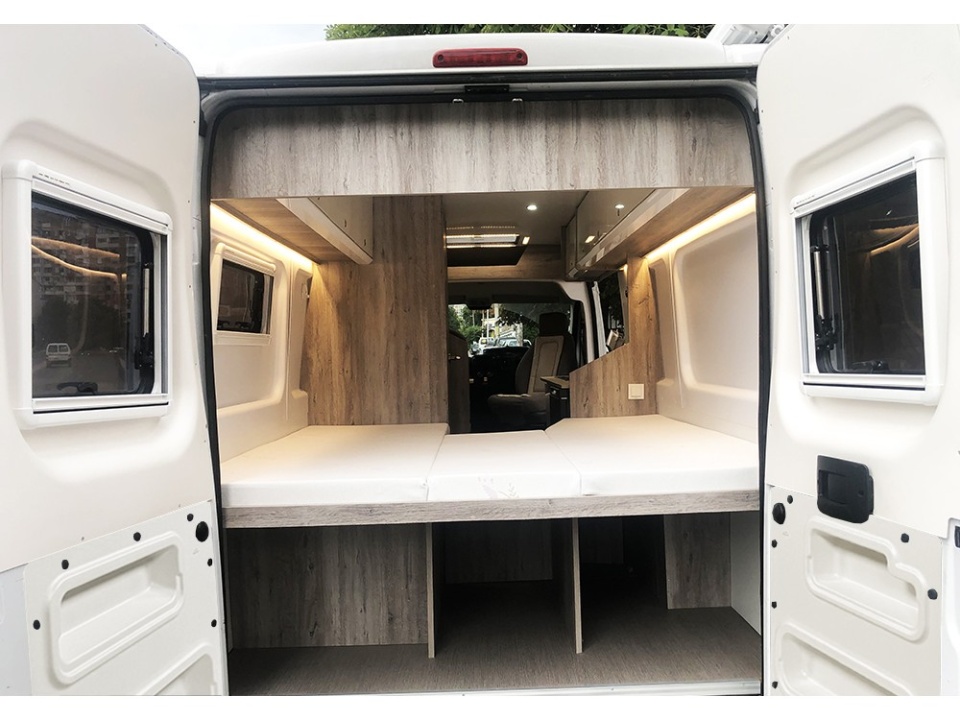

Panel for the rear area, where the bed is currently. This version allows a window to be cut out and fitted. It is compatible with Ducato, Boxer, Jumper, H2/H3 - L2/L3/L4, 2007 - 2023.
MASIS panels are designed to fit into the specified space precisely. The panels are easy to install, the manufacturer's recommendation is to attach them to the vehicle using car clamps or self tapping screws.

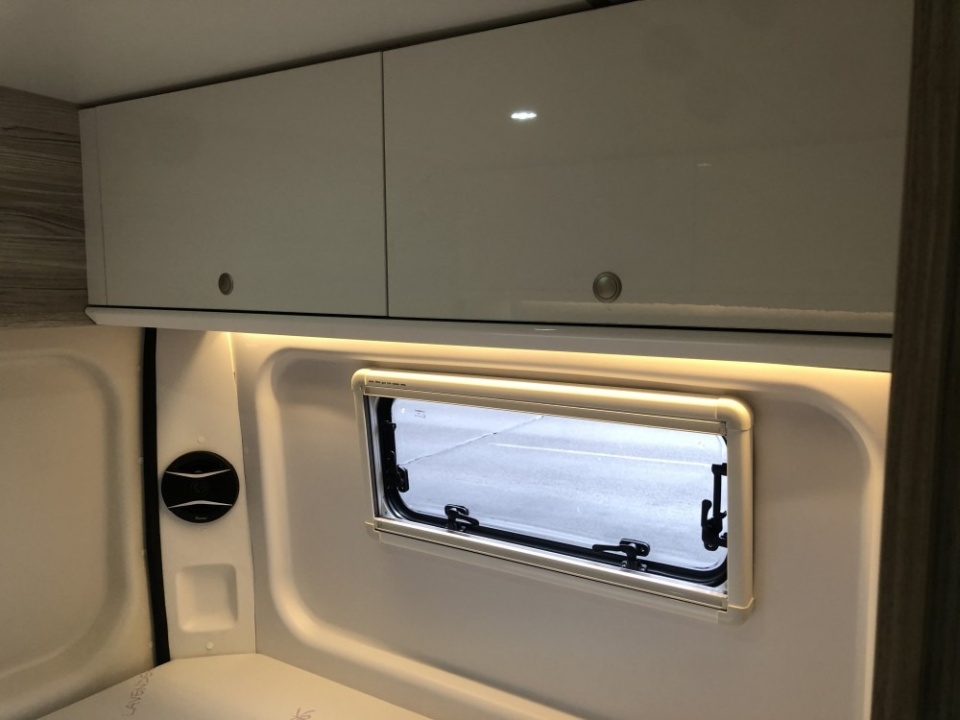

A 25 - 30 mm space is left between the panel and the outside wall of the vehicle, which is necessary for the insulation and the window frame. To install the window: first cut out the required gap in the vehicle wall; make a wooden frame to be placed between the Masis panel and the outside wall; then mark and cut out the required gap in the panel
Specifications:

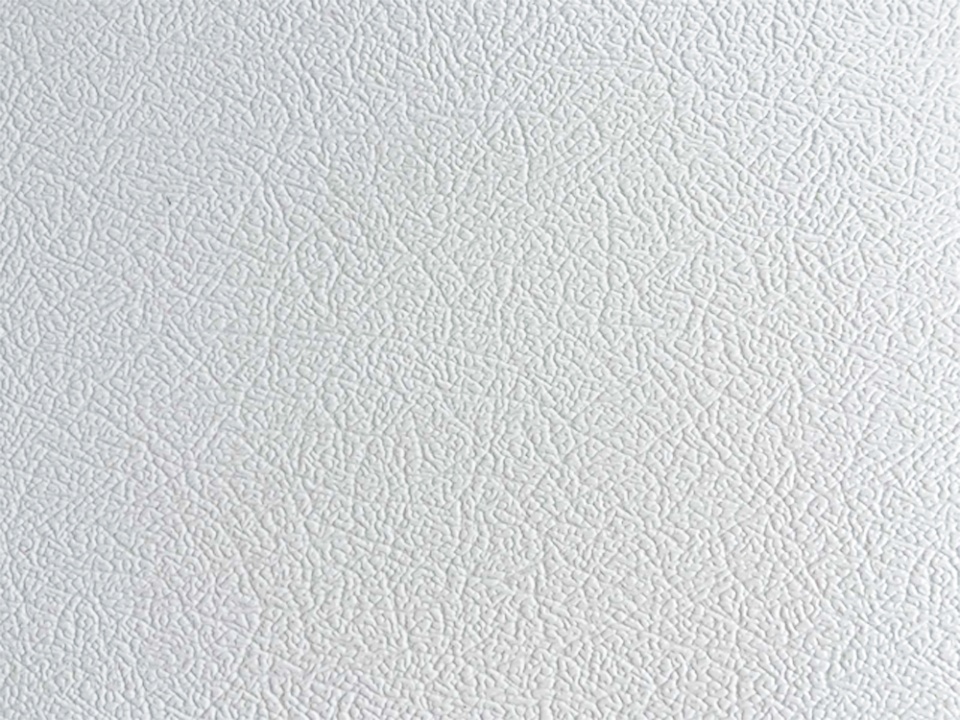

Material: ABS 3 mm
Max window size (gap): 1000 x 500 mm
Distance between new panel and vehicle wall: 25-30 mm (for insulation and window frame)
ATTENTION !!! Due to the size, this product has a fixed transport charge of 20 RON
Details
Delivery
Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
