Panel with 8 LED lighting switches and automatic fuses, marine standard

RON 239.00 (VAT included)
Free shipment for orders > 60 Euro
Product code 63558
on stock
Add to Favorites
How can we help?
Ask for details

Description

  • PROFESSIONAL MARINE ELECTRIC PANEL. This 8-switch panel is designed specifically for marine and RV applications with industrial-grade components that withstand harsh environments. The panel includes built-in circuit breakers for each switch, providing reliable overload protection for all critical systems on your boat or vehicle.
  • SAFE: Each circuit is protected by an automatic thermal fuse. In the event of an overload, the fuse immediately cuts power to that circuit. Once the problem is solved, the fuse resets by a simple mechanical trip.
  • PROTECTION: Designed with an IP65 rating and constructed of marine-grade ABS plastic, this panel resists damage from salt water. The included gasket creates a watertight barrier, making it suitable for exposed locations on yacht boats and other marine vessels.

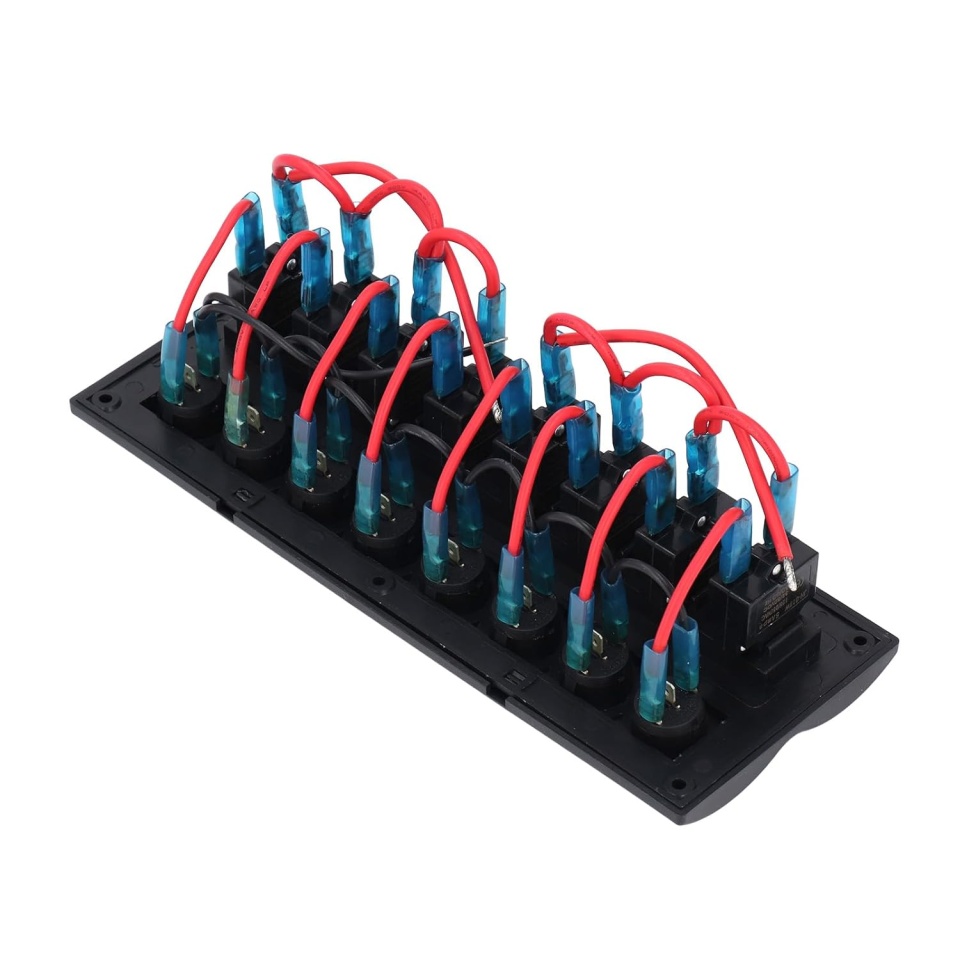

  • It is pre-wired with clearly labelled terminals and includes all necessary mounting hardware for quick installation. The intuitive design features colour-coded positive and negative connections, allowing direct setup of navigation lights to bilge pumps bilge pumps fish finders and other 12V marine electronics.
  • VERSATILE POWER DISTRIBUTION SOLUTION: With 8 independently controlled circuits (5A x 2 10A x 3 15A x 3), this panel handles diverse electrical needs from basic lighting to high power devices. Ideal as a main power distribution centre for fishing boats, sailboats, powerboats, motorboats, caravans and motorhomes.
  • Features oversized illuminated switches for easy operation in low light conditions and includes customisable labelling stickers for clear circuit identification. The slim 235x90mm profile fits most dashboards while providing complete control over your vessel's electrical systems.
Specifications:
  • Material: ABS
  • Input voltage: DC12V
  • Panel size: 235 x 90 mm
  • Mounting void: 210 x 70 mm
  • Relay (8 positions): 5A x 2, 10A x 3, 15A x 3
  • Operating temperature: -25℃ to 80℃
  • Waterproof Level: IP65

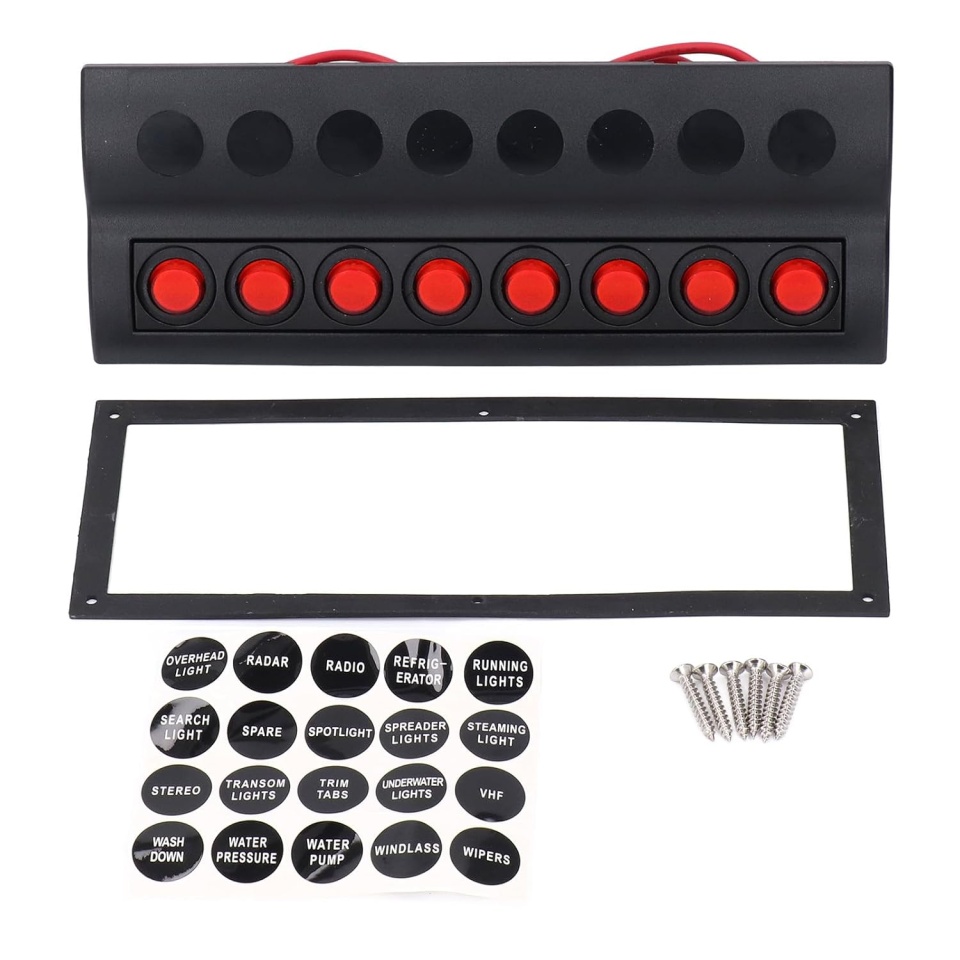

          Package Contains: 1 x Panel, 1 x Sticker, 6 x Fixing Screws, 1 x Sealing Gasket
