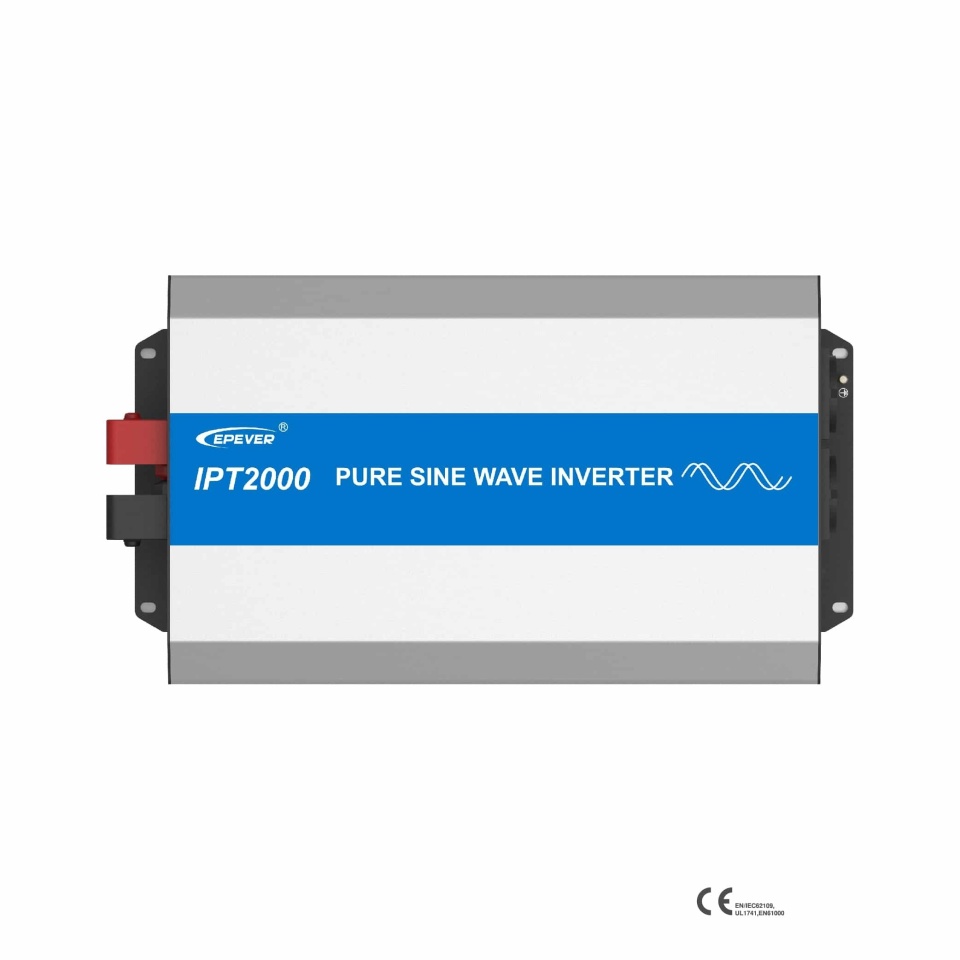

Pure sine voltage inverter, 12V/4000W max, Epever

Description

The IPT series of high-frequency sine wave inverters adopts an intelligent all-digital all-digital design and a dual closed-loop voltage-current control algorithm. Characterised with fast response, high conversion efficiency, low total harmonic distortion (THD) and high-reliability operation, this series can be widely used in DC-AC off-grid systems (such as vehicle systems, security monitoring systems, emergency lighting systems), household power systems, field power systems and other systems requiring higher power quality).

- Continuous output power: 2000W
- Surge power: 4000W @ 5S
- Output Voltage: 220VAC (±3%); 230VAC (-7%~+3%)
- Output frequency: 50/60Hz ± 0.2%
- Output wave: pure sine wave
- Output distortion THD: THD ≤ 3% (resistive load)
- Load power factor: 0.2 ~ 1 (load power ≤ continuous output power)
- Rated input voltage: 12VDC
- Input voltage range: 10.8 ~ 16.0VDC
- Rated output efficiency: >88%
- Maximum output efficiency: >94% (30% loads)
- Idle current: <0.2A
- No load current: <1.2A
- RS485 com port: 5VDC/200mA
- Input terminal: M10
- Dimensions: 420 x 228 x 118 mm
- Mounting size: 395 x 145 mm
- Mounting hole diameter: Φ6mm
- Net weight: 7.8 kg
- Working Temperature: -20℃~+60℃ (see derating curve)
- Storage Temperature: -35℃ ~ +70℃
- Relative Humidity: ≤95% (N.C.)
- IP20 Certification
- Altitude: <5000 m (if the altitude exceeds 1000 metres, the rated power will be reduced according to IEC62040)
