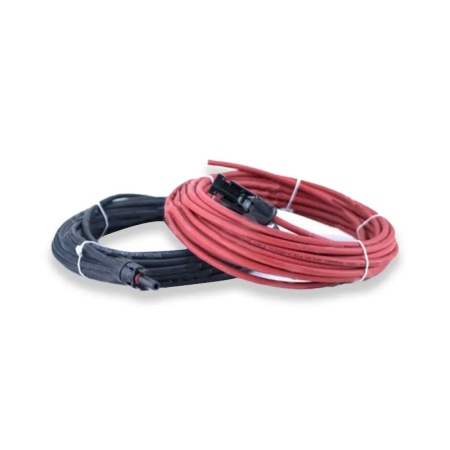

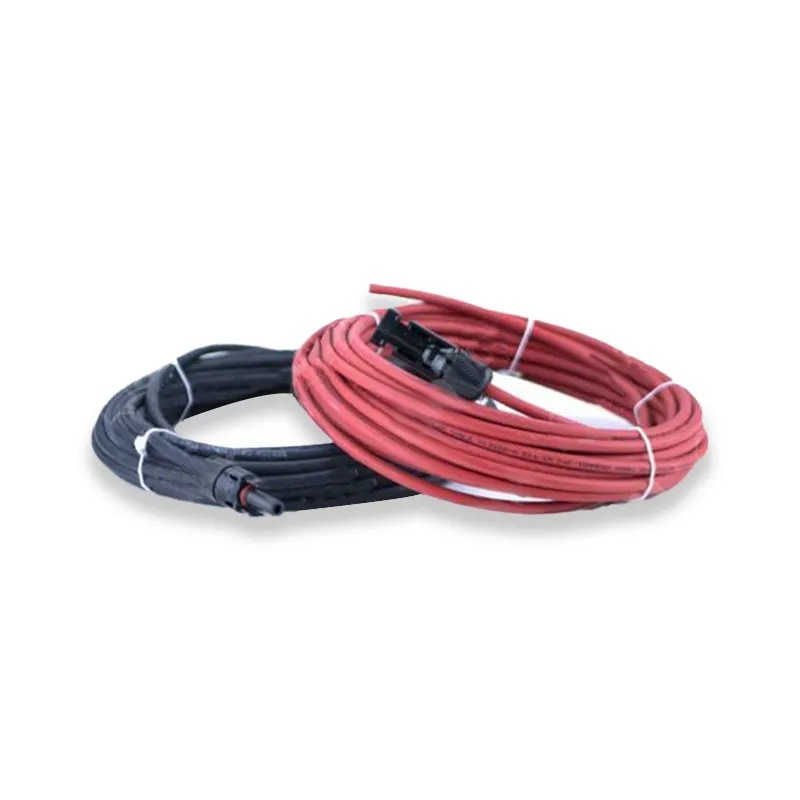

Red black solar cable diameter 6 mmp, length 10m with MC4 plugs for controller connection

Ultimatron
RON 239.00 (VAT included)
Free shipment for orders > 60 Euro
Ultimatron
Product code 88555521
on stock
Add to Favorites
How can we help?
Ask for details

Description

10 linear metre red-black solar cable, cross-section area 4sqm with MC4 shoes

This extension cable runs between the solar panel and the charge controller or between two solar panels, allowing more space between both items. Like all other solar panel extension cables, this product allows for greater customisation of your solar power system.

It is made of high quality materials. The inner conductor material has low resistivity and generates little heat.

Specifications:

  • Cable length: 10 metres
  • Electrical resistance: 1500V
  • Conductor cross-section: 4 mm2
  • Cable diameter: 6 mm
  • Connectors: MC4 + tubular

The correct cable is selected on the basis of the maximum current that must pass through that system. The table below indicates the cable size and its correspondence to the maximum current (for cables up to 5 metres total length - if there are 2 cables, the total length is the sum of them). If you can't find a thick enough cable, use two cables per connection rather than one very thick one.


Nominal conductor cross-section (mm²) Maximum allowable current (A)
0.50 mm² (0.50 mm²) 12 A
0.75 mm² (0.75 mm²) 15 A
1.00 mm² A 19 A
1.50 mm² A 24 A
2.50 mm² A 32 A
4.00 mm² A 42 A
6.00 mm² A 54 A
10.00 mm² A 73 A
16.00 mm² A 98 A
25.00 mm² A 129 A
35.00 mm² A 158 A
50.00 mm² A 198 A
70.00 mm² A 245 A
95.00 mm² A 292 A

Details

Categories
LiFePO4 batteries, tester, terminals, connection cables
Weight
5.43 kg
Brand
Ultimatron

Delivery

Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
