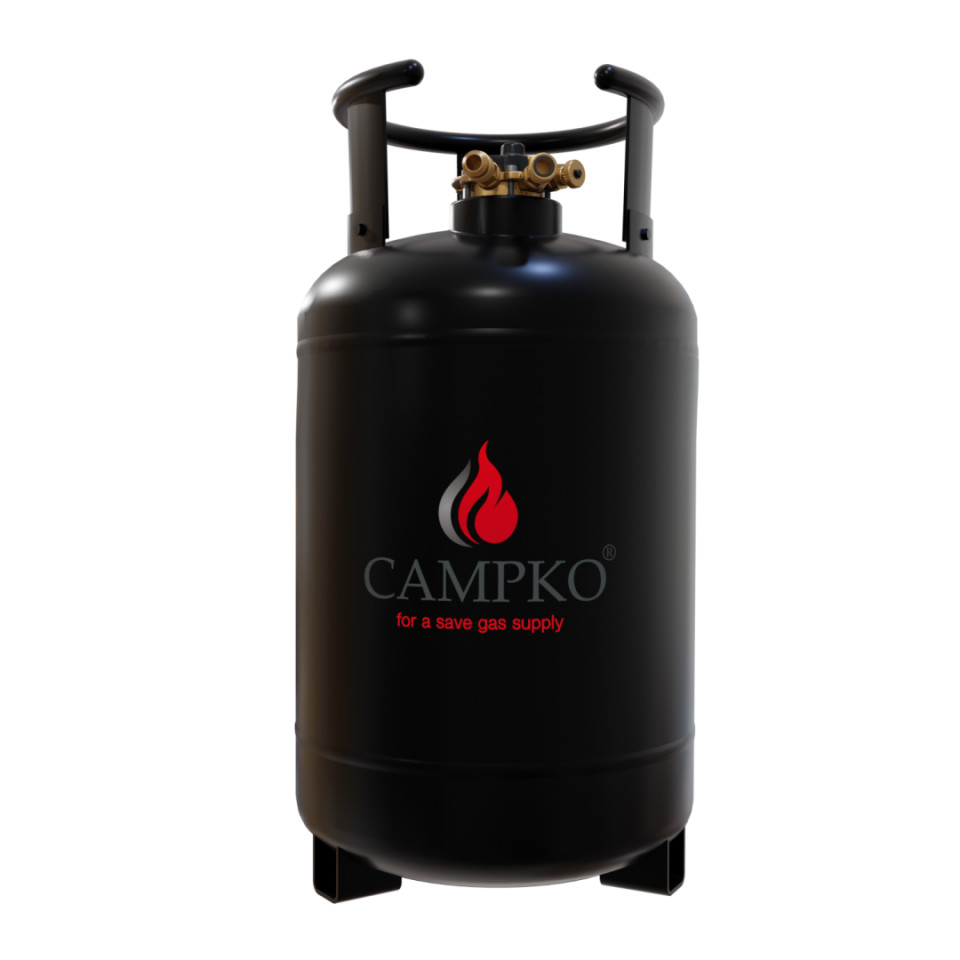

Refillable steel LPG tank with multivalve and filling indicator, 30l

Description

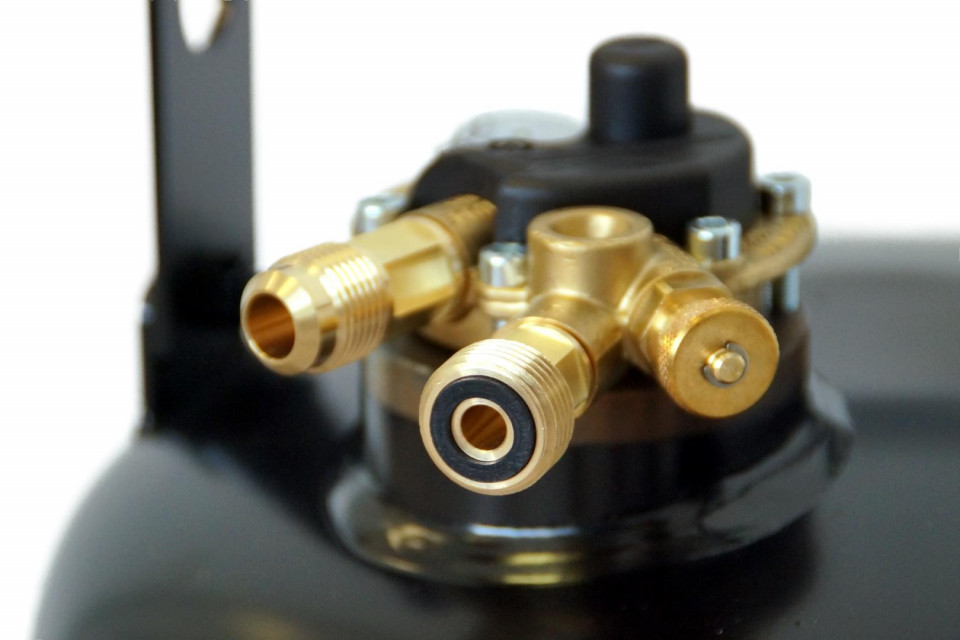

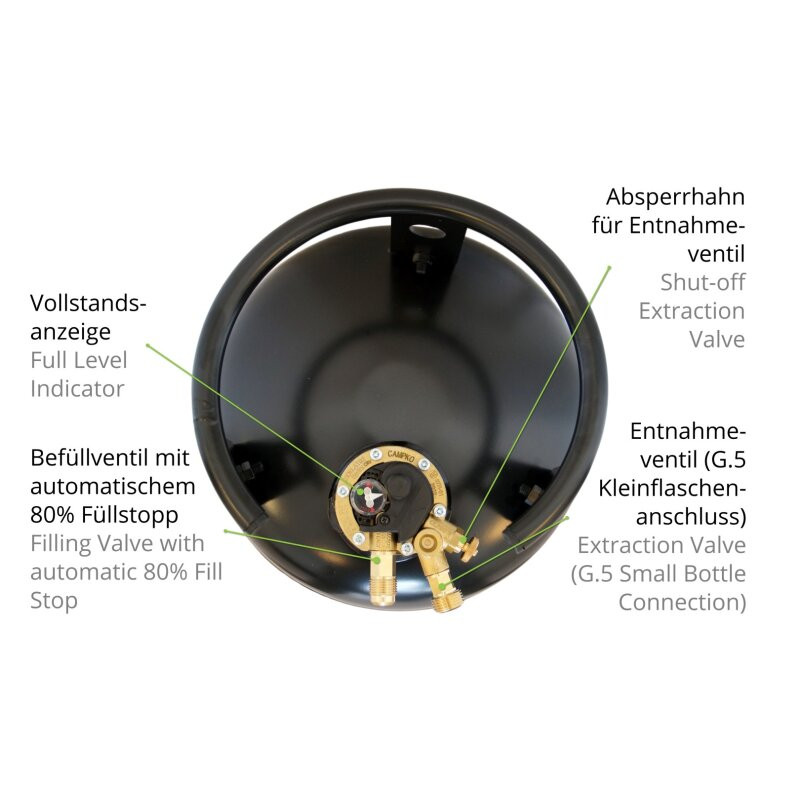

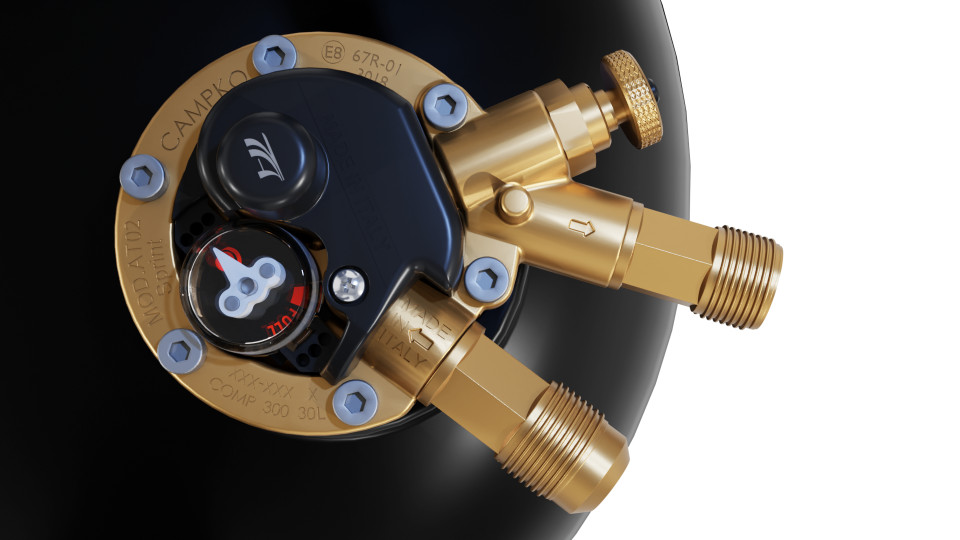

LPG tank with multivalve and filling indicator (indicates complete filling and complete emptying). This model has the same dimensions as the classic 11kg cylinder (585 x 300 mm) and can be easily installed in its place and fuelled with LPG from any station in Romania or in Europe. In most European countries, LPG fuelling is allowed only with special LPG cylinders / tanks approved ECE 67R-01. Installation instructions can be found here

Fuelling can be done

• directly into the cylinder by using anextension and adaptors for Romania (DISH),Holland (bayonet),Germany (ACME) or Spain (Euronozzle) which must be purchased separately.

• through a nozzle (not included in the package) which can be installed on the vehicle wall or on the service door and which can be purchased separately from here

What is the difference between standard and refillable gas cylinders? The CAMPKO refillable LPG cylinder/refillable tank is equipped with an overfill protection mechanism that prevents overfilling by limiting it to 80% of the total capacity. If the cylinder is filled above this level, under certain conditions (e.g. excessive heat) there is a risk that the liquefied gas inside may expand and damage the valves, taps, filters etc or even explode. The 80 per cent safety level is not possible to control in the case of a conventional cylinder that is filled with LPG in a homemade way.

In addition to the overfill protection mechanism, the CAMPKO cylinder/tank is fitted with a safety valve configured to open at a pressure of 27 bar.

WARNING !!! Due to its dimensions and special gauge, this item has a fixed transport charge of 25 RON

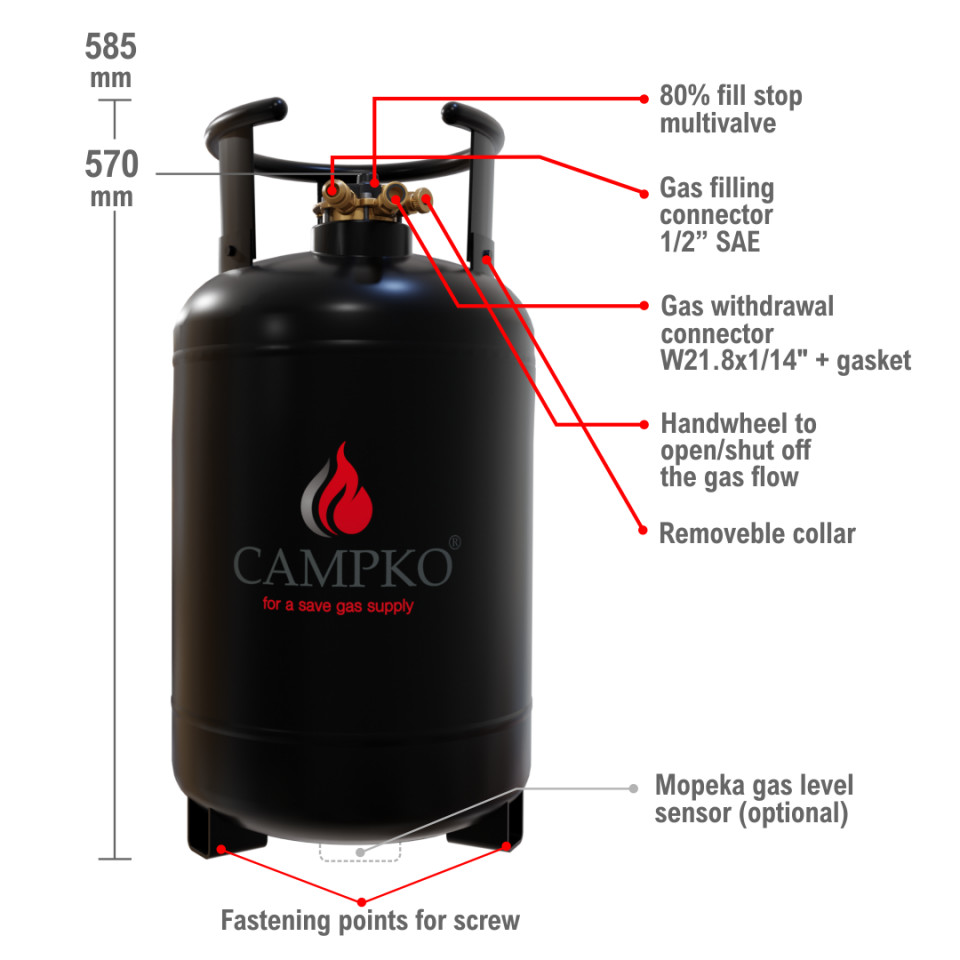

Specifications:

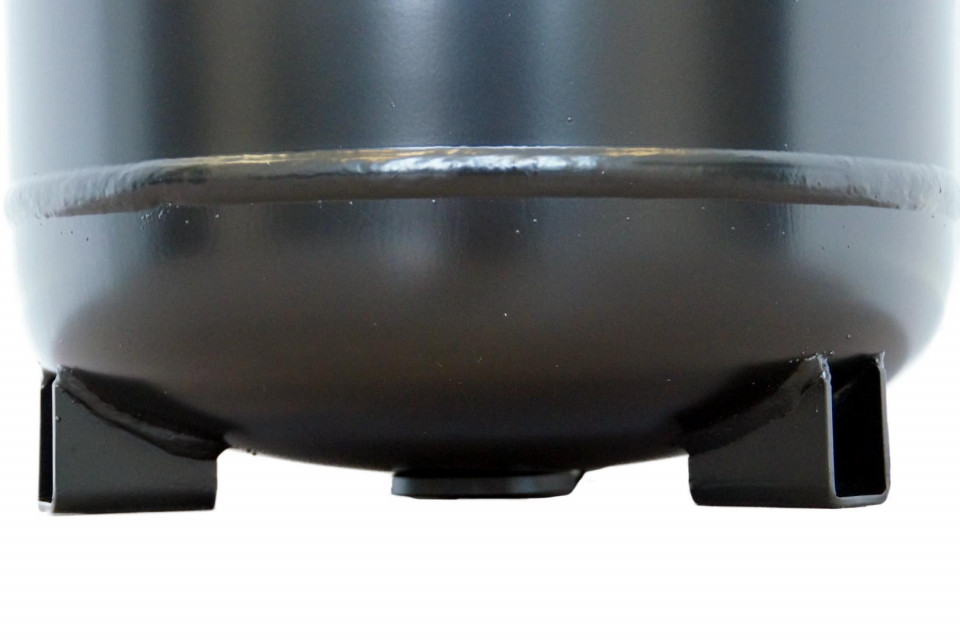

• The 3 legs of the cylinder are provided with holes for fixing to the floor if necessary
• The collar is detachable
• Material: steel
• Overfill valve: yes, limits to 80% of nominal capacity
• Safety valve: yes, max 27 bar
• Gross volume : 30l / net volume 24 litres (= 80%)
• Weight (without gas): 16 kg
• Fill level indicator: yes (gauge)
• LPG supply: thread 3/4-16 UNF (right)
• LPG outlet: G12 (W21,8 x 1/14 left) cylinder type Germany (adaptor for Romania G2 pressure hose can be purchased here )
• Height including collar: 585 mm
• Height without collar: 570 mm
• Diameter: 300 mm
• Homologation norm ECE 67R-01
