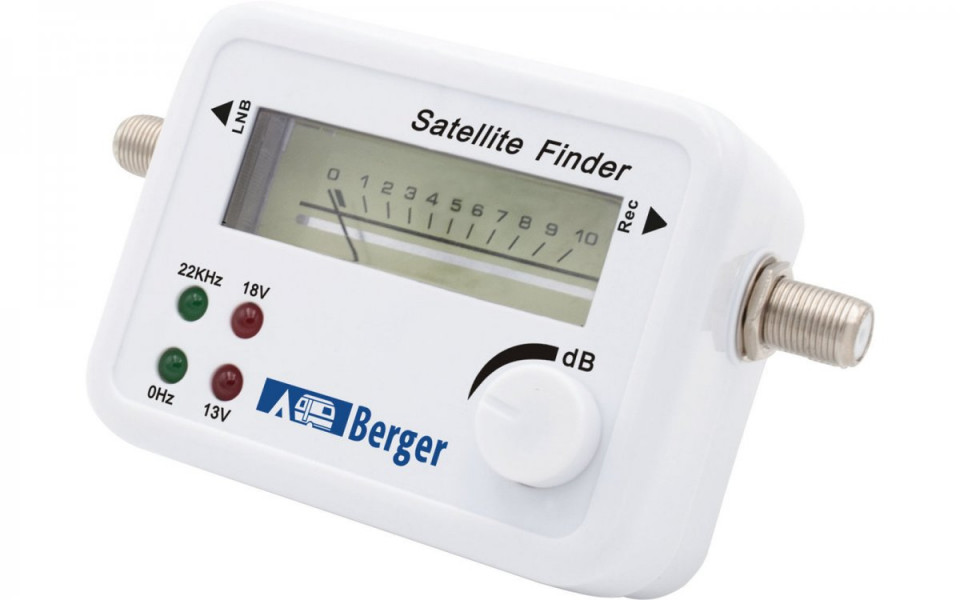

Sat-Finder with analogue display for quick alignment of mobile satellite dishes

Description

The Sat-finder is easy to use and allows quick and precise alignment of the satellite dish with the desired satellite. Sat-finder connects the receiver or TV with receiver to the satellite dish. Finding the satellite is signalled by acoustic and optical signals.

Specifications

• Colour: white
• Display: analogue

Package includes LNB connection cable

Instructions for use:

1 - Connect the LNB to the "LNB" jack and the cable to the receiver or TV with receiver "RECEIVER" jack
2 - Switch on the receiver and if the connections are correct, the SAT finder's SAT display should be illuminated.
3 - Point the antenna approximately in the desired direction. HINT: Orient, if possible, by the position of other antennas within line of sight or to the south (satellites that can be received in Europe are located on the southern horizon).
4 - Adjust the signal attenuation wheel to 50%. Rotate the antenna (elevation and azimuth) until the signal reaches 99%. Adjust the signal attenuation knob again to 50% and turn the antenna again until the signal strength reaches 99%. Repeat this operation until you have maximum signal quality. You can see on the built-in LEDs at what level you are receiving the signal: 22kHz = High Band , 0kHz = Low Band , 18 V = Horizontal , 13 V = Vertical
5. Switch off the SAT finder and connect the LNB directly to the receiver.
