Sensor for measuring water level in 12 - 24 cm tanks

Description

This sensor has been specially designed for accurate measurement of the water level in tanks (clean or grey water)

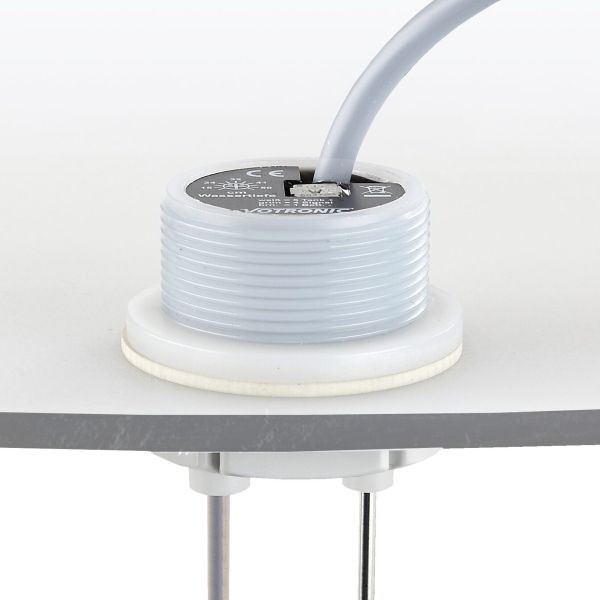

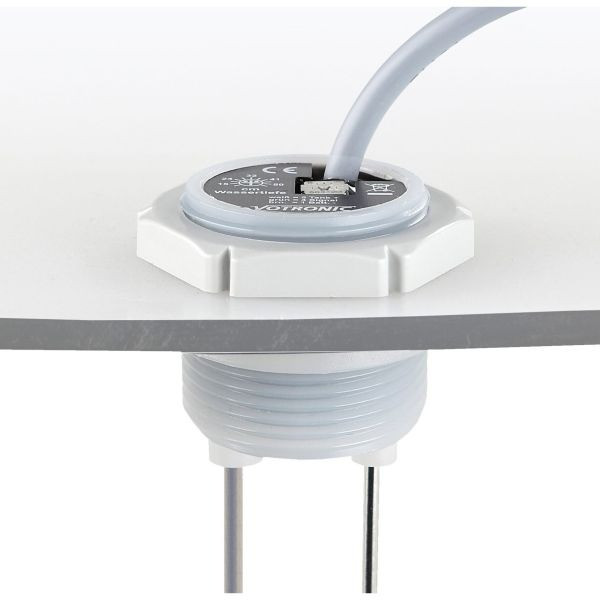

A special feature of these tank sensors is that the tank electrodes can be installed on the top of the tank from both inside and outside. For clean water tanks, there is also the option to attach the sensor (38 mm) to the bottom of the tank.

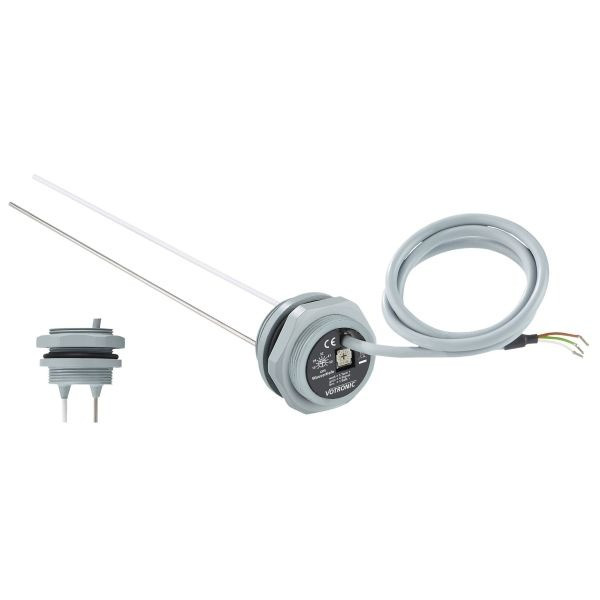

The measuring electrodes shorten to the individual tank height.

Specifications:

Tank mounting: top/bottom
Robust, fully electronic capacitive measuring method
Not influenced by dirt or deposits in the water
Compatible with plastic and metal tanks
Stepless, linear filling level signal
Wide range of installation options
Suitable for 12V/24V continuous operation
Compatible with Votronic display to be purchased separately here or here

Installation instructions can be found here
