Sliding door panels Ducato, Boxer, Jumper

Description

Panelling for sliding door Ducato, Boxer, Jumper, H2/H3 - L2/L3/L4, 2007 - 2023. The sliding door can be fully padded using 3 types of panels:

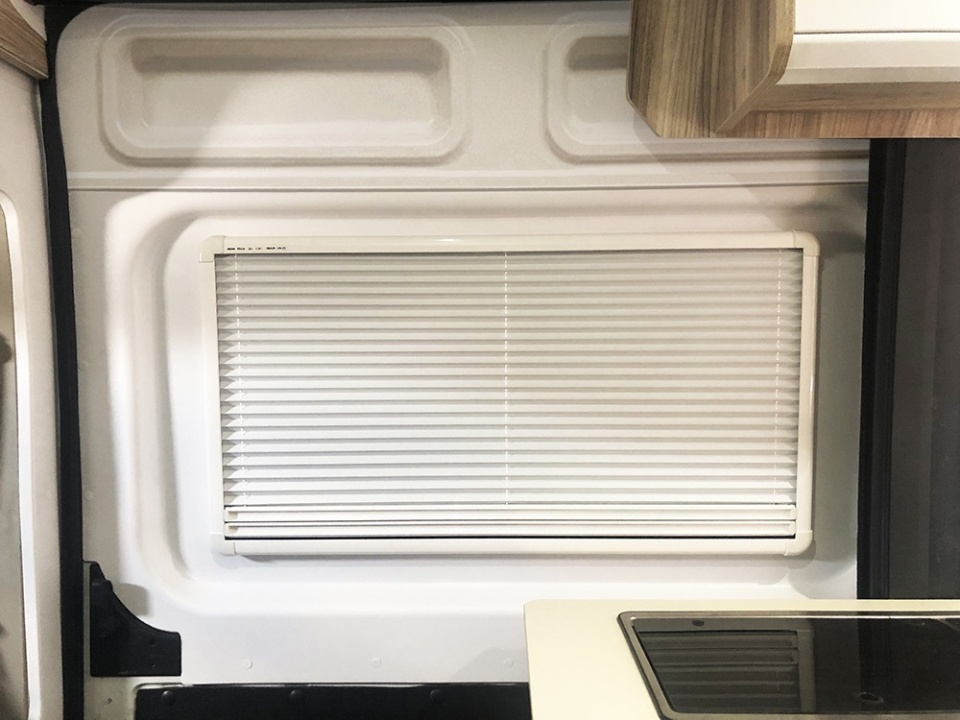

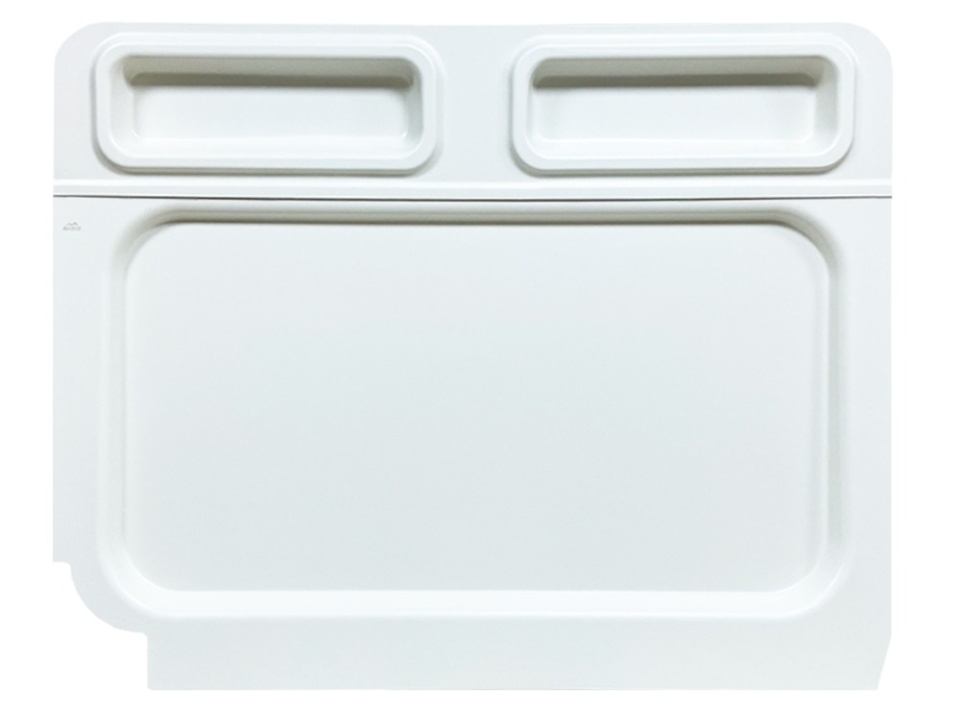

- for the top of the door. The panel is designed with 2 storage compartments. In this panel a window with maximum dimensions of

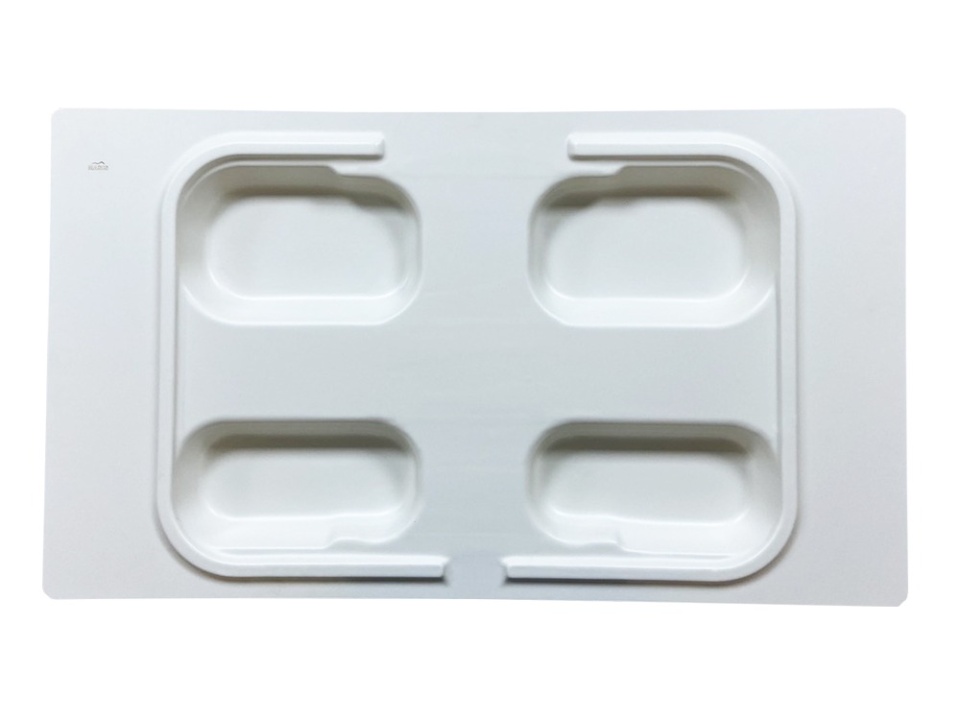

- The panel is designed with 4 storage compartments.

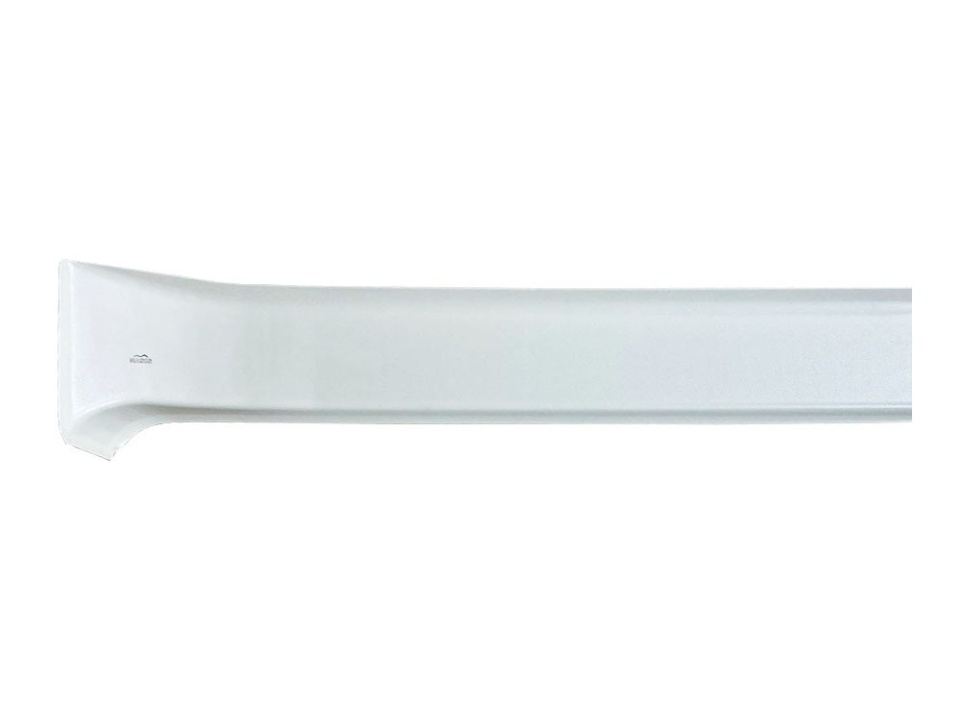

- above the sliding door. It can be used for

MASIS panels are designed to fit into the specified space precisely. The panels are easy to install, the manufacturer's recommendation is to attach them to the vehicle using self-tapping screws which can be purchased separately from here

Between the panel and the outside wall of the vehicle there remains a space of 25 - 30 mm necessary for the insulation and the window frame. To install the window: first cut out the required gap in the wall of the vehicle and in the Masis panel; make a wooden frame to be placed between the Masis panel and the outside wall; then mark and cut out the required gap in the panel

Size: 1300 x 1030 mm

Dimensions storage compartments: 460 x 130 x 60 mm x 2

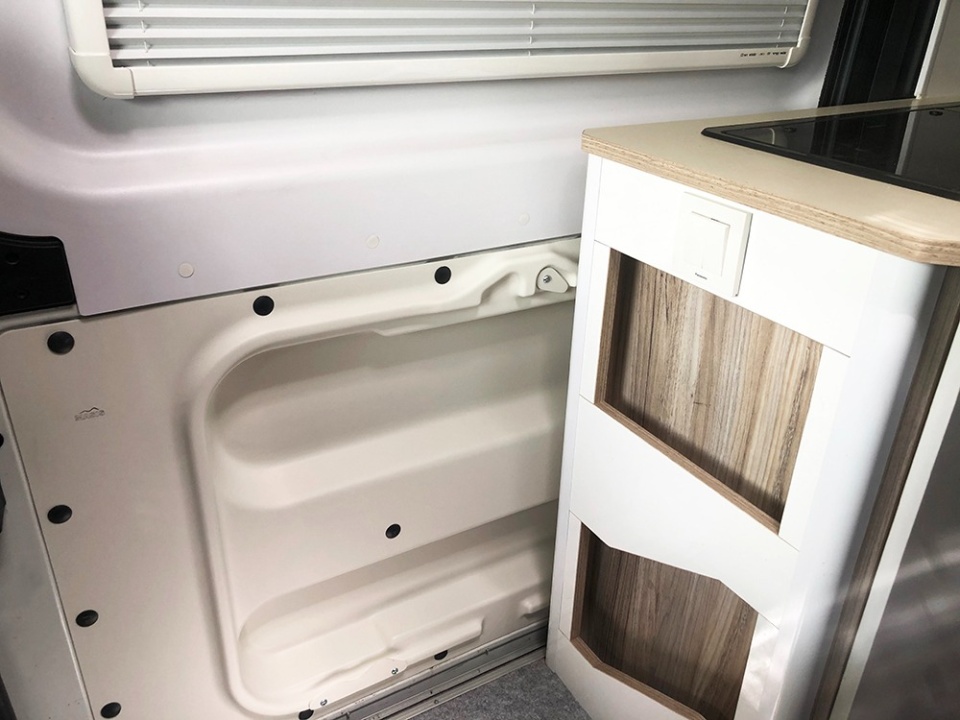

Lower side panel:

Size: 1150 x 675 mm

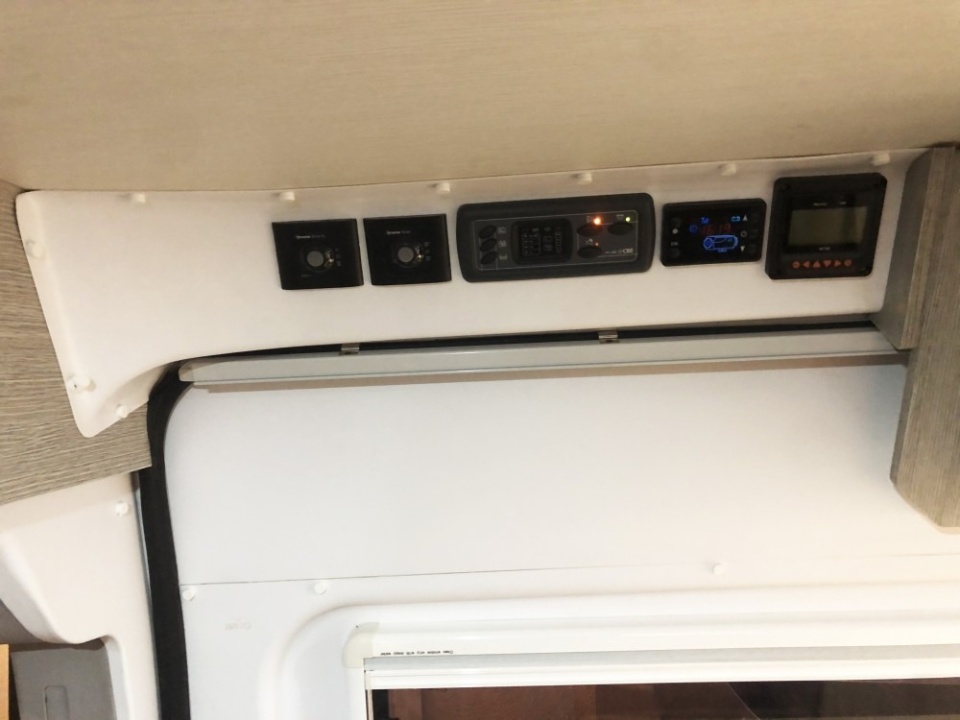

Panel above door:

Size: 1240 x 200 mm

ATTENTION !!! Due to the size, this product has a fixed transport charge of 20 RON
