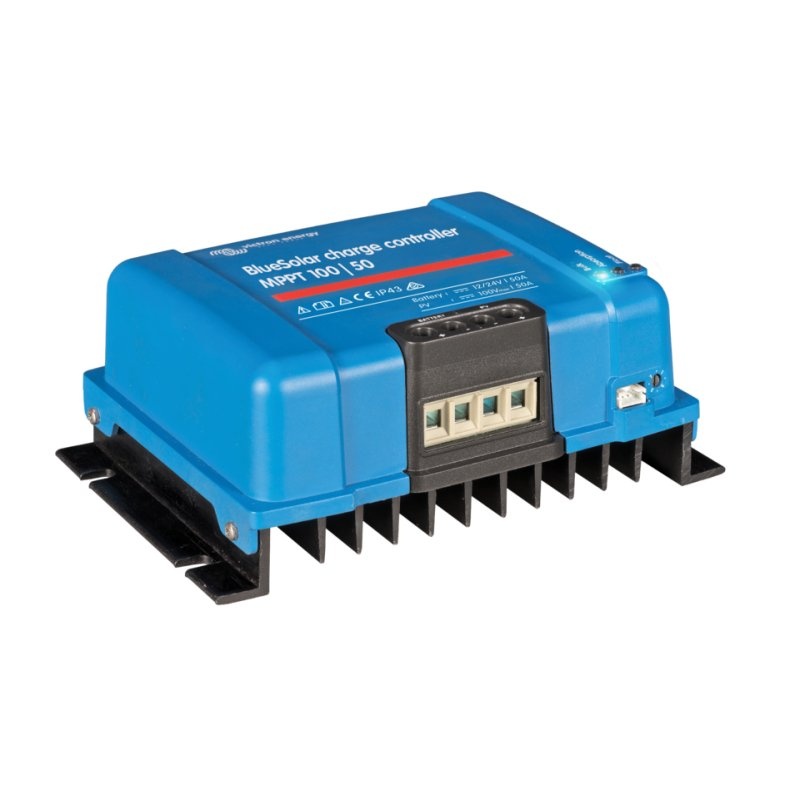

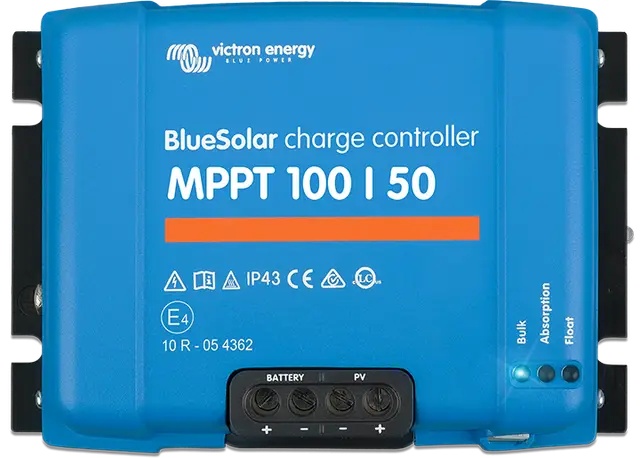

Solar charger 12V 24V 24V Victron Energy BlueSolar BlueSolar MPPT 100V 50A

Name: Solar charger 12V 24V 24V Victron Energy BlueSolar BlueSolar MPPT 100V 50A
Brand: Victron
SKU: SCC020050200

RON 888.00 (VAT included) RON 998.00

Free shipment for orders > 60 Euro

How can we help?

Ask for details

Description

A solar charger collects energy from solar panels and transmits it to the batteries. Using the latest, fastest technology, Victron BlueSolar maximises this energy collection, intelligently managing it to achieve a full charge in the shortest possible time. BlueSolar maintains the integrity of the batteries, extending their lifespan.

The BlueSolar charge controller will charge even an extremely discharged battery. The BlueSolar Regulator can operate with a battery voltage of 0 volts (provided the cells are not completely sulfated or otherwise damaged).

BlueSolar charger description meaning:

100 = 100V maximum voltage from photovoltaic panels. The maximum voltage is specified in the panel specifications
50 = 50A is the maximum charging current that can be transmitted to the batteries
BlueSolar = remote control and monitoring of the extended features of the BlueSolar MPPT charger can be done by attaching a Bluetooth key and pairing it with your smart phone or other device via VictronConnect(NO direct bluetooth connection)
IP43: Protection against penetration by tools, wires, etc. with a diameter of 2.5 mm or more and protection against drops falling on the equipment with an angle of inclination of 60° from vertical

Detailed technical specifications for the controller can be found here

WARNING!!! According to the law no. 39/2023 the displayed price of this product has 9% VAT exclusively for individuals and public institutions. The order will be recalculated with 19% VAT for legal entities.

Features:

Ultra-fast maximum power point tracking (MPPT).
Advanced maximum power point detection under partial shading conditions.
Programmable charging algorithm and eight other pre-programmed algorithms selectable by a rotary switch.
Extensive electronic protection.
Internal temperature sensor.
Optional external battery voltage and temperature sensing and fully discharged battery recovery function.

Specifications:

Model: BlueSolar MPPT 100/50
Nominal voltage: 12 V-220 W, 24 V-440 W
Maximum charging current: 50A
Maximum voltage from photovoltaic panel: 100V
Maximum photovoltaic input power: 700W(12V); 1400W(24V)
Standby own consumption: 12V: 30mA 24V: 20mA
Working temperature: -30 to +60°C;
Standard: IP43
Dimensions: 130 x 186 x 70 mm
Plugs for connecting cables: 16 mm² / AWG6
Weight: 1,3 kg

VE.Direct interface

Create a wired data connection from a Colour Control GX to other GX products, computer or other devices.

Ultra-fast Maximum Power Point Tracking (MPPT)

In unfavourable weather conditions, when the light is constantly changing, the 100/15 MPPT regulator harvests power up to 30% more efficiently than PWM charge regulators and up to 10% more efficiently than the slowest MPPT regulators.

Advanced maximum power point detection under partial shading conditions

Under partial shading conditions, two or more maximum power points may be present on the power-voltage curve, the innovative BlueSolar algorithm maximises energy harvest by locking to the optimal MPP.

Charging power

By connecting all charges at charging power, battery overcharging is avoided. Charging power disconnects the load when the battery is discharged to the preset voltage (48V model: relay interface).
Alternatively there is the option to choose an intelligent algorithm for battery management

Battery life through intelligent battery management

When a solar charge controller fails to recharge the battery in one day to its full capacity, the partial charge state will lead to the destruction of the battery in a few weeks or months.
The battery reliability algorithm registers the percentage of battery charge, and increases it daily until the harvested solar energy is enough to fully charge the battery, meaning that the algorithm modulates the level of load disconnection so that once every week 100% charging will be achieved
Flexible charging algorithm

Programmable charging algorithm and eight other pre-programmed algorithms that can be selected by a rotary switch.

Internal temperature sensor

Compensates absorption and floating charging voltage for temperature. Optional external battery voltage and temperature sensing via Bluetooth

Compensates absorption and floating charging voltage for temperature.

Optional external battery voltage and temperature sensing via Bluetooth

A BMV-712 Smart Battery Sensor or Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar charge controllers.

Fully discharged battery recovery function
