Solar charger 12V 24V 24V Victron Energy SmartSolar MPPT 100/15, 15A

Name: Solar charger 12V 24V 24V Victron Energy SmartSolar MPPT 100/15, 15A
Brand: Victron
SKU: 115513

RON 500.00 (VAT included)

Free shipment for orders > 60 Euro

How can we help?

Ask for details

Description

A solar charger collects energy from solar panels and transmits it to the batteries. Using the latest, fastest technology, Victron SmartSolar maximises this energy collection, intelligently managing it to achieve a full charge in the shortest possible time. SmartSolar maintains the integrity of the batteries, extending their lifespan.

The SmartSolar charge controller will charge even an extremely flat battery. The SmartSolar regulator can operate with a battery voltage of 0 volts (provided the cells are not completely sulfated or otherwise damaged).

Meaning of the SmartSolar charger description:

100 = 100V maximum voltage from photovoltaic panels
20 = 20A is the maximum charging current it can transmit to the batteries
SmartSolar = means that this MPPT has bluetooth connection and allows access and connection from the Victron Connect app (Bluetooth range only)
IP43: Protection against penetration by tools, wires, etc. with a diameter of 2.5 mm or more and protection against drops falling on the equipment having an angle of inclination of 60° from vertical

Detailed technical specifications for the controller can be found here

Features:

Bluetooth smart built-in.
Ultra-fast maximum power point tracking (MPPT).
Advanced maximum power point detection in partial shading conditions.
Programmable charging algorithm and eight other pre-programmed algorithms selectable by rotary switch.
Extensive electronic protection.
Internal temperature sensor.
Optional external external battery voltage and temperature sensing via Bluetooth and fully discharged battery recovery function.

Specifications:

Model: SmartSolar MPPT 100/15
Nominal voltage: 12 V-220 W, 24 V-440 W
Maximum charging current: 15A
Maximum voltage from photovoltaic panel: 100V
Maximum photovoltaic input power: 220W(12V); 440W(24V)
Own consumption: 12V: 19 mA 24V: 16 mA
Working temperature: -30 to +60°C;
Standard: IP43
Dimensions: 100 x 113 x 50 mm
Weight: 0,6 kg

Built-in Bluetooth smart

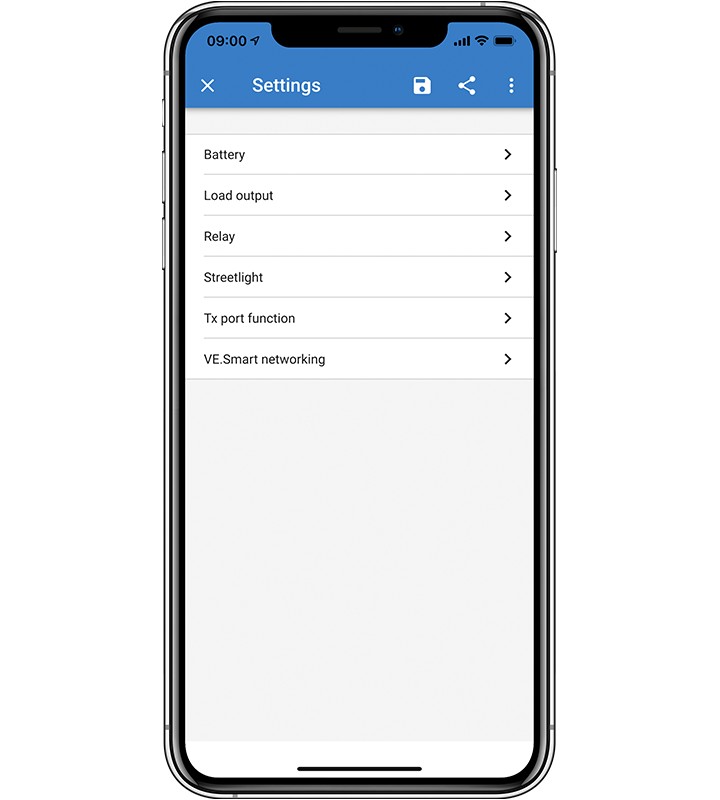

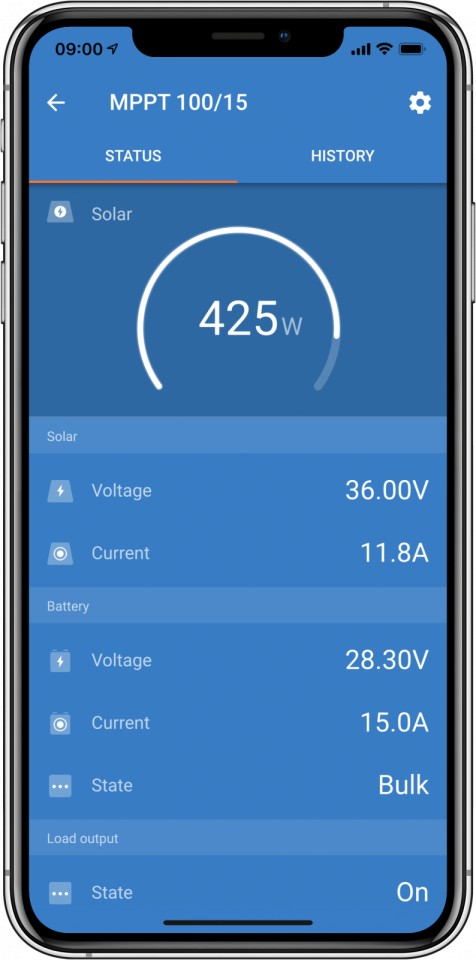

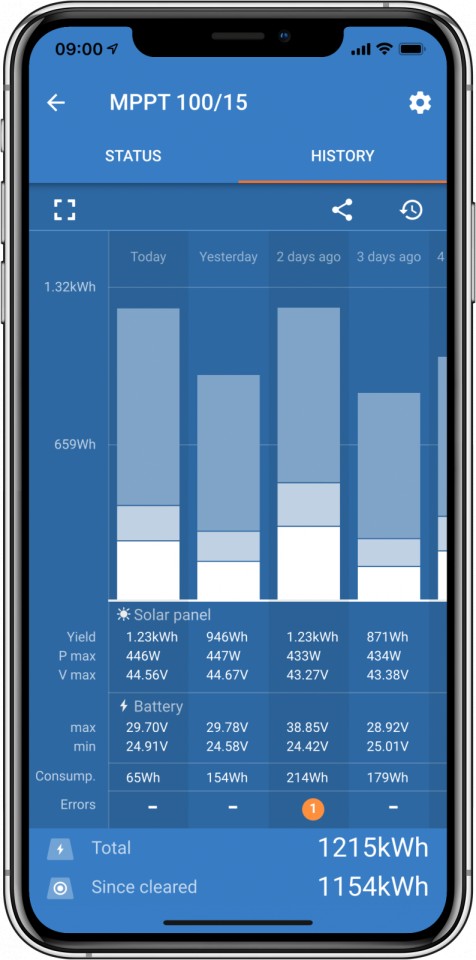

Configure, monitor, update and synchronise SmartSolar charge controllers.

VE.Direct interface

Creates a wired data connection from a GX Colour Control to other GX products, computer or other devices.

Ultra-fast Maximum Power Point Tracking (MPPT)

In unfavourable weather conditions, when the light is constantly changing, the 100/15 MPPT regulator harvests power up to 30% more efficiently than PWM charge regulators and up to 10% more efficiently than the slowest MPPT regulators.

Advanced maximum power point detection under partial shading conditions

Under partial shading conditions, two or more maximum power points may be present on the power-voltage curve, the innovative BlueSolar algorithm maximises energy harvest by locking to the optimal MPP.

Charging power

By connecting all charges at charging power, battery overcharging is avoided. Charging power disconnects the load when the battery is discharged to the preset voltage (48V model: relay interface).
Alternatively there is the option to choose an intelligent algorithm for battery management

Battery life through intelligent battery management

When a solar charge controller fails to recharge the battery in a day to its full capacity, the partial state of charge will lead to the destruction of the battery in a few weeks or months.
The battery reliability algorithm registers the percentage of battery charge, and increases it daily until the harvested solar energy is enough to fully charge the battery, meaning that the algorithm modulates the level of load disconnection so that once every week 100% charging will be achieved
Flexible charging algorithm

Programmable charging algorithm and eight other pre-programmed algorithms that can be selected by a rotary switch.

Internal temperature sensor

Compensates absorption and floating charging voltage for temperature. Optional external battery voltage and temperature sensing via Bluetooth

Compensates absorption and floating charging voltage for temperature.

Optional external battery voltage and temperature sensing via Bluetooth

A BMV-712 Smart Battery Sensor or Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar charge controllers.

Fully discharged battery recovery function
