Tank 84 l for clean or grey water, 48 x 88 x 20 cm

Description

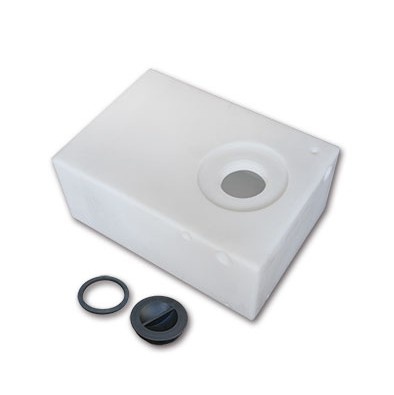

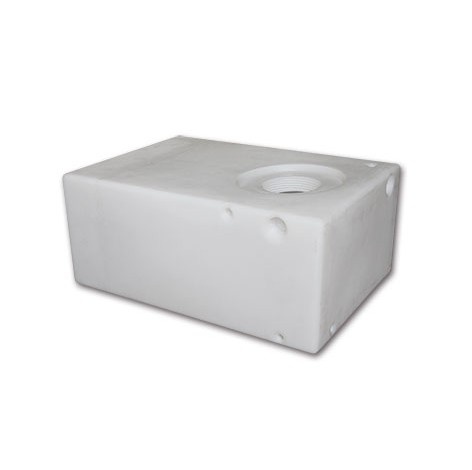

Tank for clean or grey water with a Ø11 cm, 84l access opening. The tank is made of impact resistant polyethylene.

Specifications:

• Dimensions: 48 x 88 x 20 cm
• Weight: 5 kg
• Equipped with:
  - 4 preformed holes with 3/8" internal thread
  - 1 preformed spout with 1 1/4" internal thread (for 40 mm hose)
  - 1 access opening with cover and 110 mm diameter of the hole

Filling of the tank is generally done through a filling nozzle mounted on the outside of the vehicle and connected to the water tank through a 40 mm diameter flexible hose. The flexible hose can be attached to the water tank directly to the pre-formed filler spout or by making a new filler spout using the desired supply rods.

The water is extracted from the tank using a submersible or external water pump using a 10 or 12 mm internal diameter hose. The hose is attached to the water reservoir using one of the following water tank stut variants:

You can order the supply nozzles here

You can find the hose nozzles, connectors and other accessories needed to connect to the water supply here
