Tank 95l for water with installation over LEFT or RIGHT rear wing Ducato/Jumper/Boxer/Sprinter/Transit/Master

Description

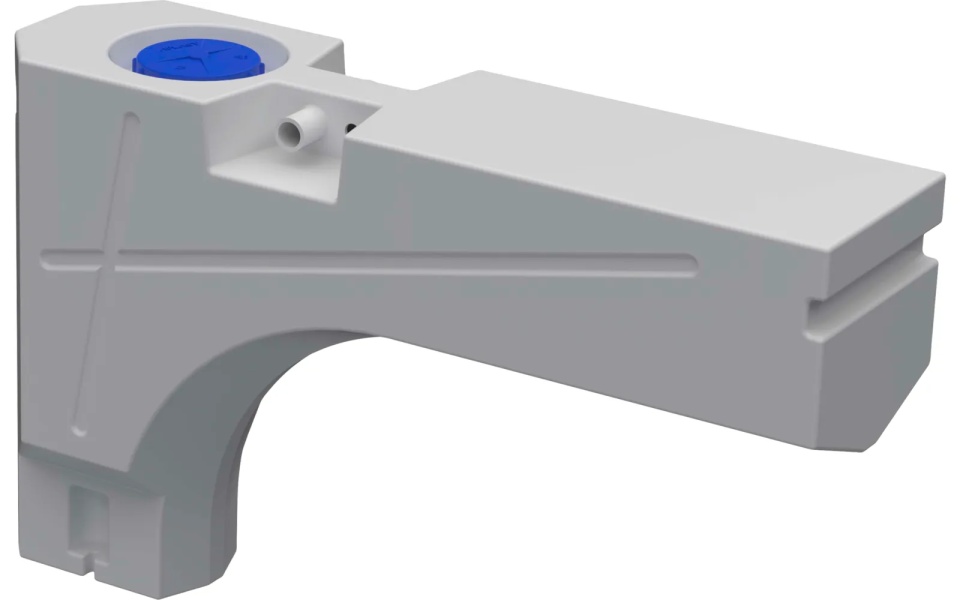

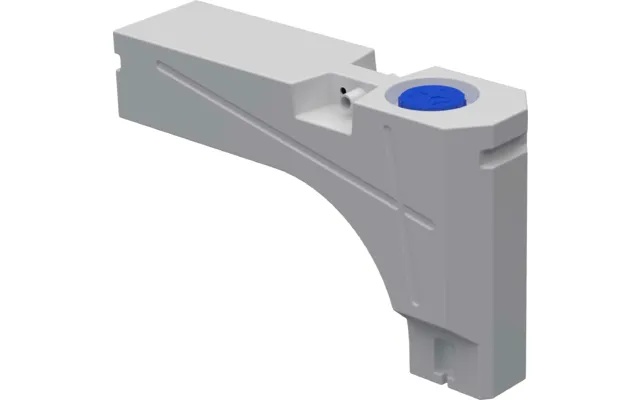

95 litre water tank with over the rear wheel mounting compatible with Ducato/Jumper/Boxer/Sprinter/Transit/Master

The shape of the tank is ideal for installation above the LEFT or RIGHT rear wheel inside the vehicle.

Specifications:

• Dimensions: 110 × 29 × 67 cm
• Weight : 7.5 kg
• Material: 100% polyethylene (PE)
• 1 manhole with cover Ø 140 mm

ATTENTION !!! Due to the special dimensions and/or gauge this item has a fixed delivery charge of 25 RON

The filling of the tank is generally done through a filling nozzle mounted on the outside of the vehicle and connected to the water tank through a flexible hose with a diameter of 40mm. The flexible hose can be attached to the water tank directly to the pre-formed filler spout or by making a new filler spout using the desired supply rods.

The water is extracted from the tank using a submersible or external water pump using a 10 or 12mm internal diameter hose. The hose is attached to the water tank using one of the following stut variants:

You can order the supply nozzles here

You can find the hose nozzles, connectors and other accessories needed to connect to the water supply here
