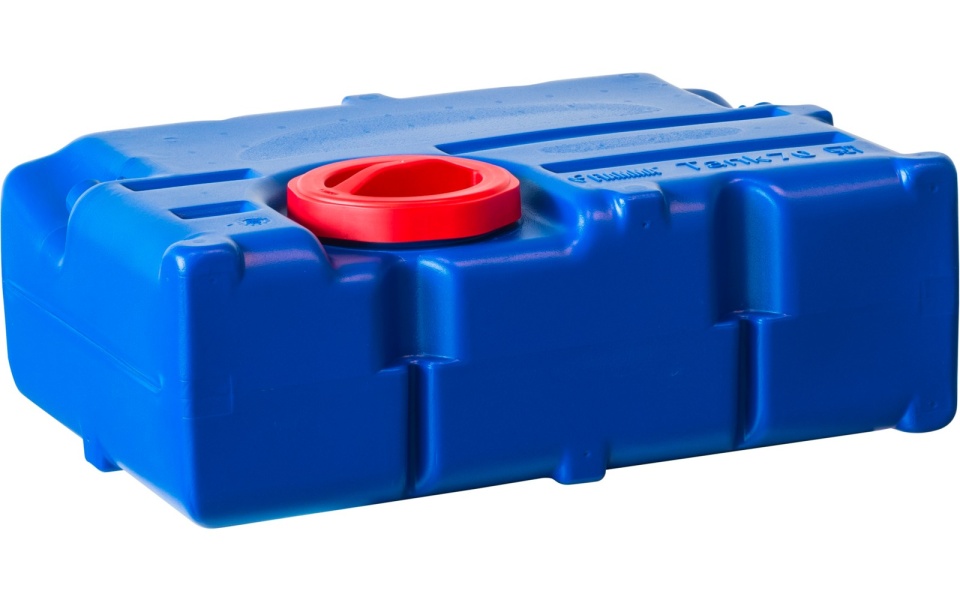

Tank for clean or waste water 65l, Fiamma

Description

Tank for clean or waste water 65l, Fiamma. Includes fixing screws, assembly instructions here

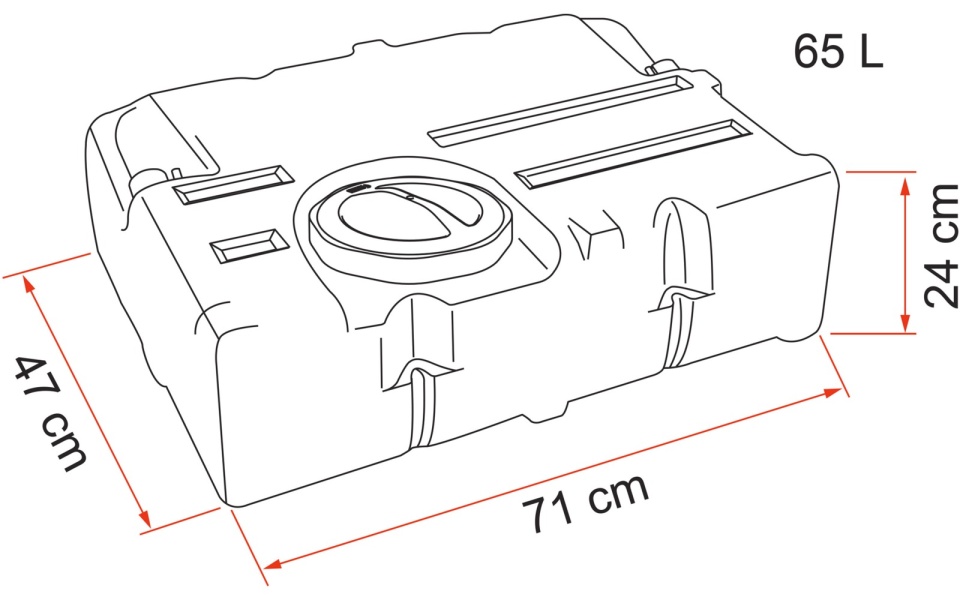

Specifications:

• Colour: blue
• Material: polythene PE
• Tank capacity: 65 l
• Width: 71 cm
• Height: 24 cm
• Depth: 47 cm

The filling of the tank is generally done through a filling nozzle mounted on the outside of the vehicle and connected to the water tank through a flexible hose with a diameter of 40mm. The flexible hose can be attached to the water tank directly to the pre-formed filler spout or by making a new filler spout using the desired supply rods.

The water is extracted from the tank using a submersible or external water pump using a 10 or 12mm internal diameter hose. The hose is attached to the water tank using one of the following stut variants:

You can order the supply nozzles here

You can find the hose nozzles, connectors and other accessories needed to connect to the water supply here
