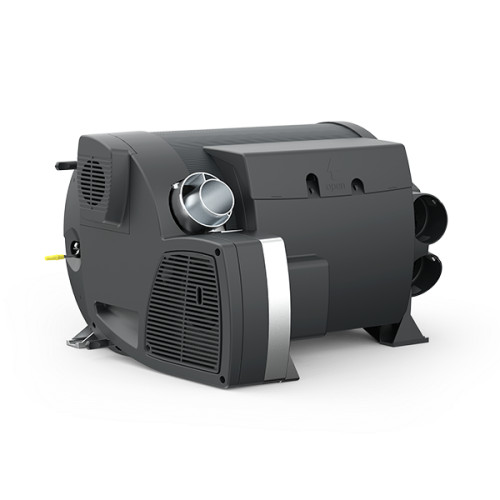

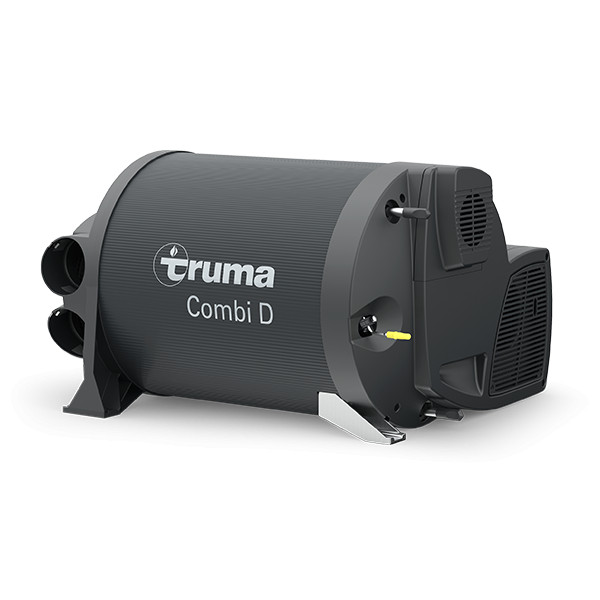

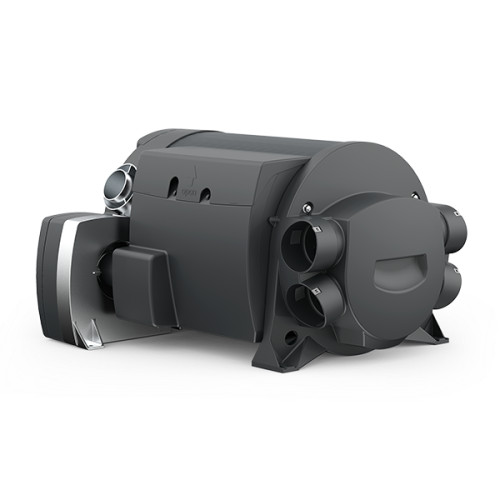

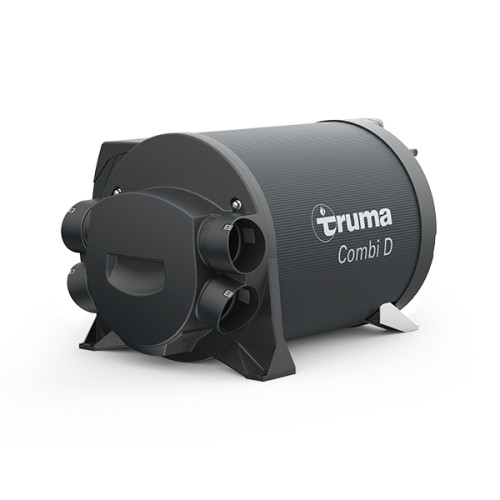

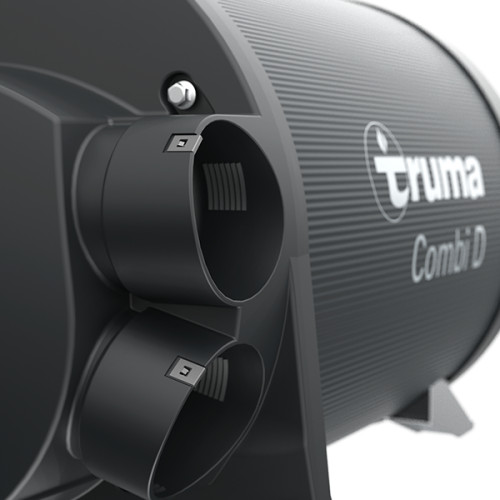

Truma Combi Heater iNet X Panel, DIESEL fuel

Description

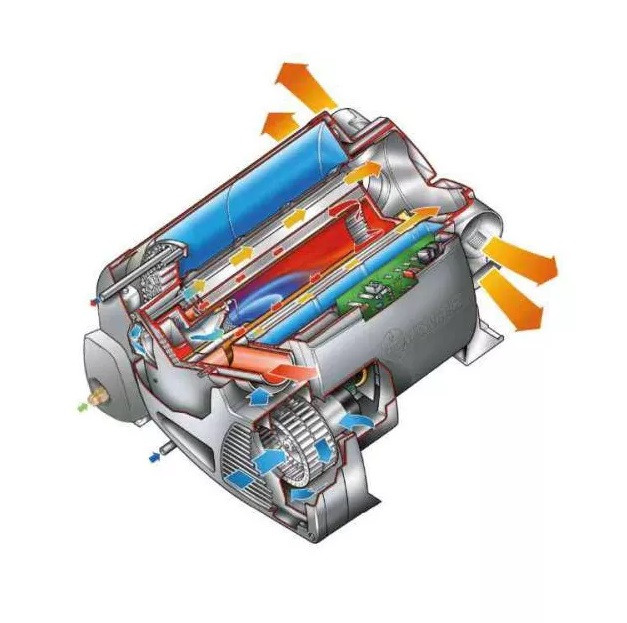

The Truma Combi heating units combine two functions in one device: they heat the interior of the vehicle and simultaneously heat the water in the integrated stainless steel boiler (10l). They are available with diesel operation (fuel is taken directly from the vehicle's petrol tank), gas (fuel taken from the vehicle's petrol tank or gas cylinder) or combined diesel/electric (220V) or gas/electric (220V).

The new generation Truma Combi has the following features:

Lighter: weight reduction in Combi D by 3kg and Combi D (E) by 3.4kg compared to previous models
Economical: very low energy consumption thanks to more efficient combustion
Individual setting: Heats up quickly or regulates the temperature constantly as needed
Automatic altitude adjustment: integrated altitude sensor ensures optimal combustion at altitudes up to 3000 m

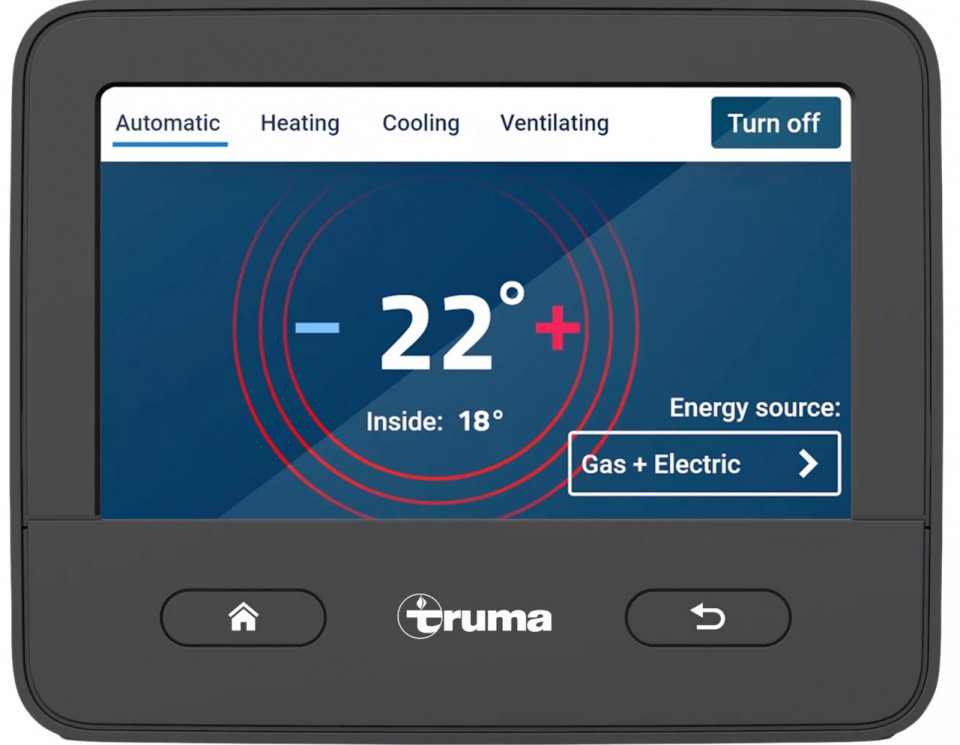

The package includes: Truma D central heating unit with thermostat, iNET X Panel control panel, 6m connecting cable, fuel supply pipe and dosing pump, connection to fuel tank.

To be ordered separately:

Exhaust basket cover

Exhaust basket 1m or exhaust basket 0,6m

Frost Control valve

ATTENTION !!! The Truma warranty is only valid if the installation is carried out by an authorised Truma service (Truma partner).

Specifications:

• Fuel: Diesel (according to EN 590)
• Power consumption (12V) for operation: 0.4 - 8.1 A
• Boiler water capacity: 10l
• water heating from 15°C to 60ºC in about 20 min in boiler mode or about 80 min in mixed heating/boiler mode
• Dimensions: 510 x 450 x 300 ( dimensions required for installation: 540 x 500 x 350 mm)
• Air volume: max 287 m³/h
• Pump pressure: max 2,8 bar
