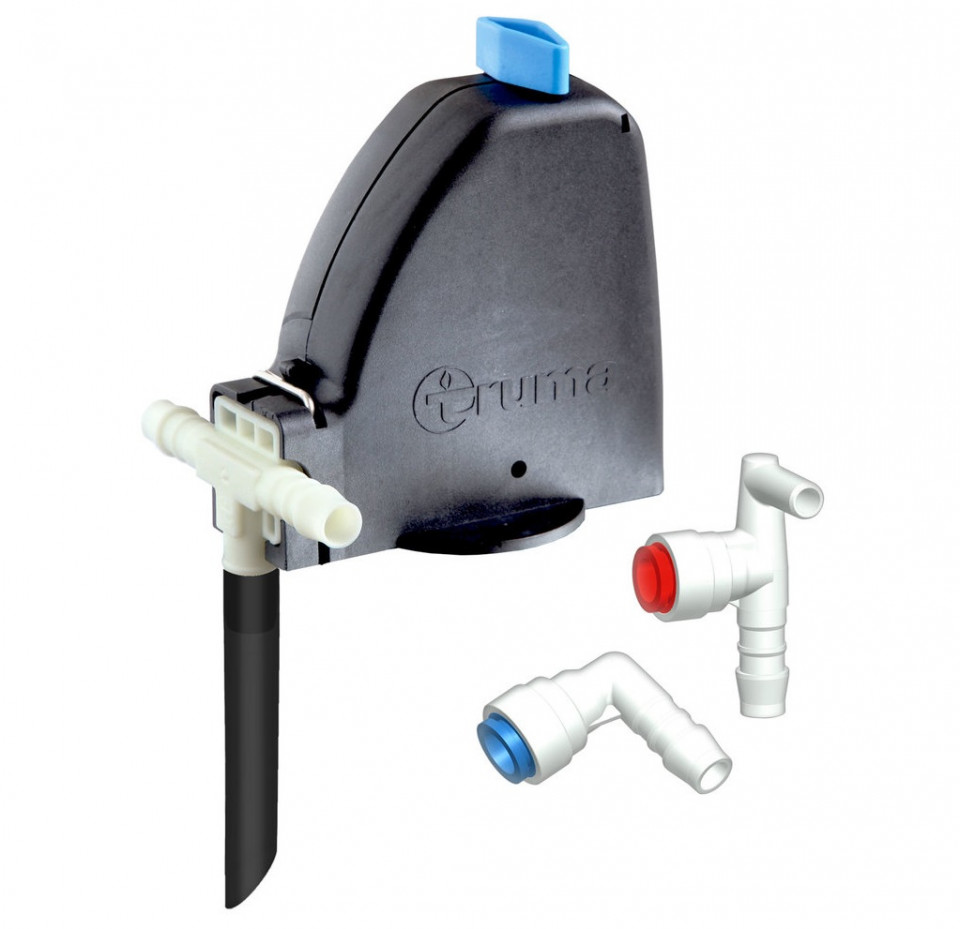

Truma Frost Control automatic valve with boiler connection kit

Description

The "Truma" safety/drain valve (no electricity connection required) automatically drains the boiler if there is a risk of freezing (at approx. 3° C) or overpressure (at approx. 3.5 bar).

Truma connection kit with Frost Control for 10mm hose The kit additionally contains John Guest fittings for connection to the UniQuick water system (with rigid pipe with 12mm outside diameter).

It is compatible with all external or submersible pumps up to 2.8 bar. It is possible to manually operate the tap to empty the water circuit.

Installation and operating instructions can be found here
In addition (only if the installation includes Truma C 4 or 6) it is possible to install a heating element to improve the valve operation

Specifications:

Water pressure (working pressure): <= 2,8 bar
Closing temperature: from approx. 7°C (ambient temperature)
Opening temperature: below approx. 3° C (ambient temperature)
Operating temperature: -30°C - +80°C
Compatible with Truma or Trumatic C (not compatible with Truma Therme)
