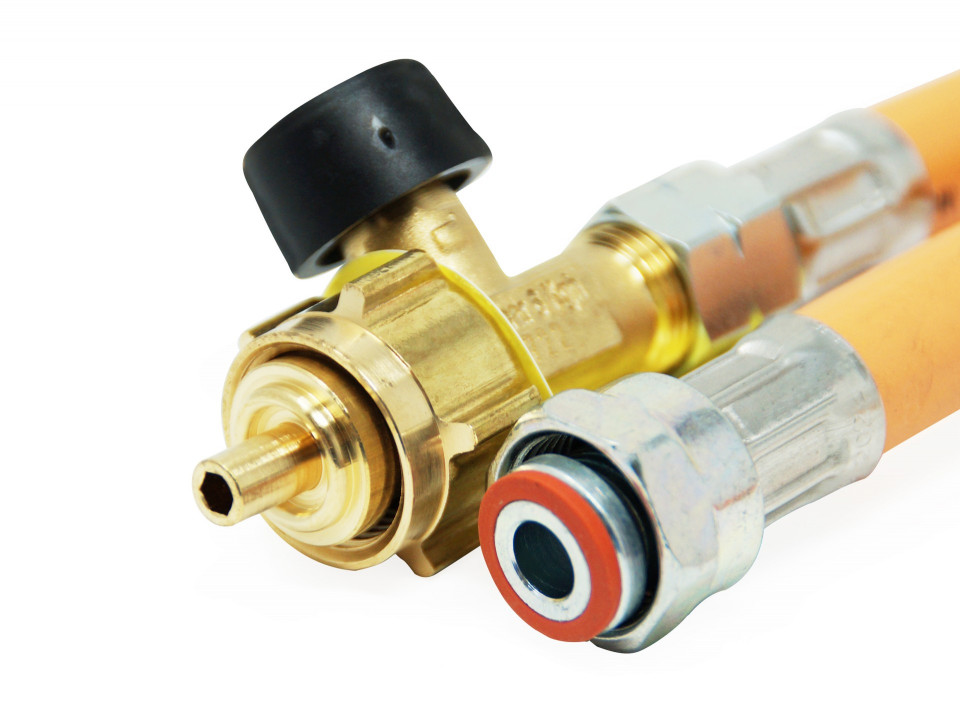

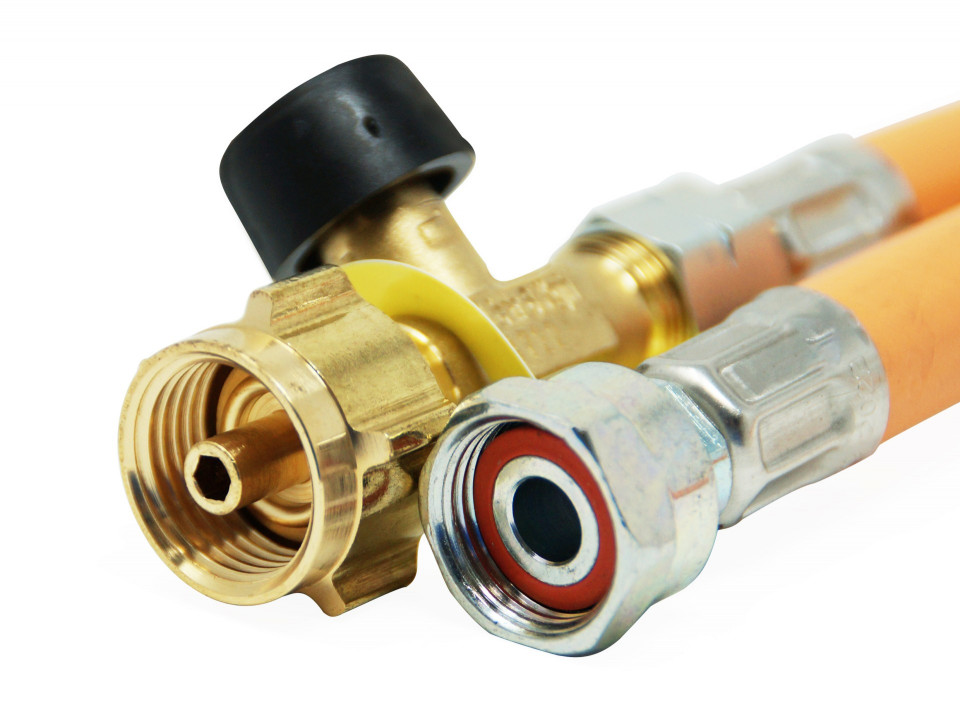

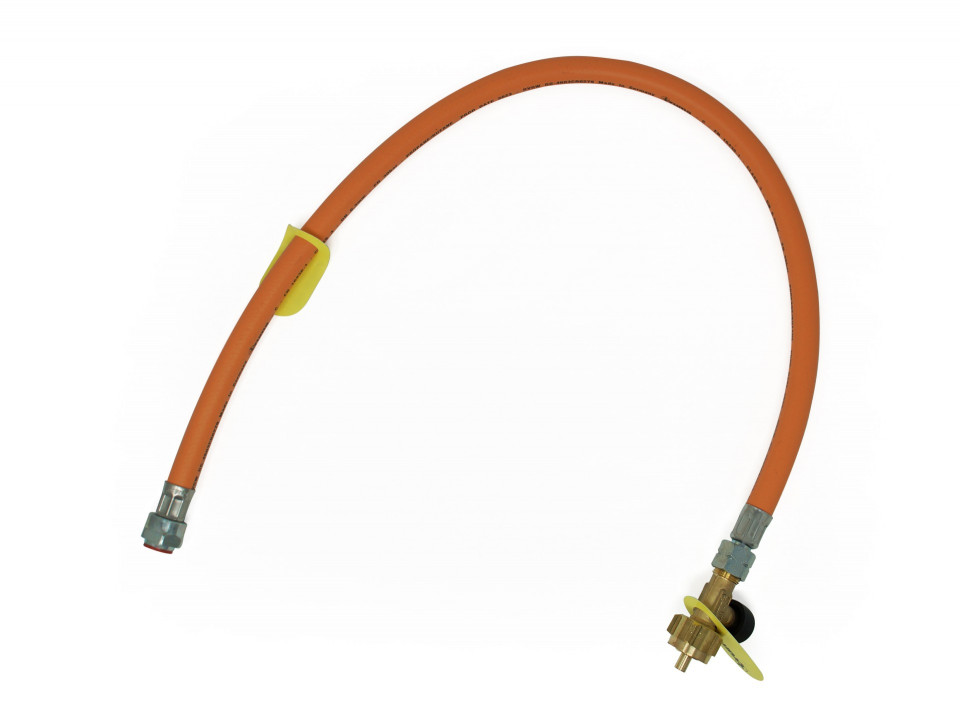

TRUMA high-pressure hose, (30 bar) with safety valve, cylinder Germany (G12)
Description
TRUMA pressure hose for butane / propane / LPG (30 bar) with safety valve, Germany (G12) cylinder.
It is used to connect the cylinder model GERMANIA to the regulator (Duo Control Truma). The safety valve allows the use of the gas installation also during operation. In the event of a gas leak in the circuit, the valve automatically switches off the gas supply to the cylinder.
Specifications:
- length: 45 or 75 cm
- cylinder thread type: G12 (Germany)
- outlet thread type: M20 x 1,5
- hose diameter: 6,3mm (EN16436)
- For: propane / butane / LPG
- Min working temperature: -30°C

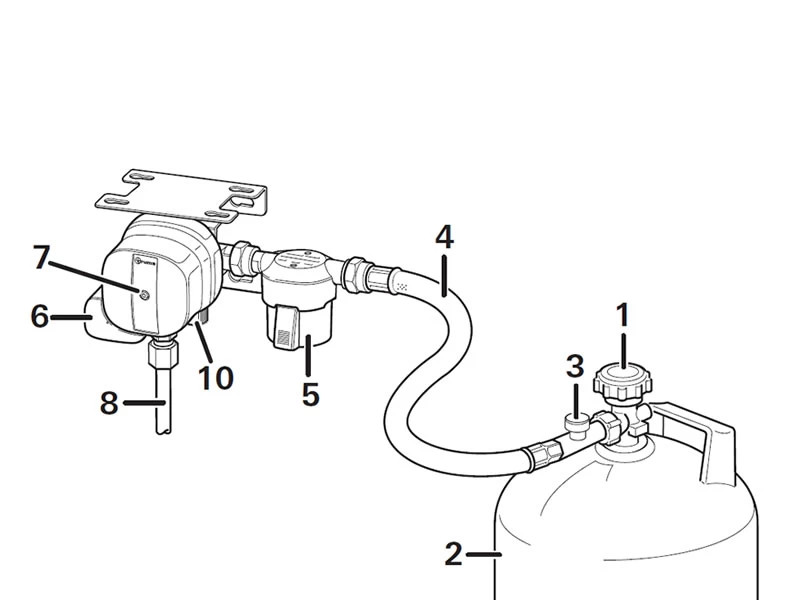

Attention !!! The hose must be installed without in such a way that there is a continuous slope between the connection on the cylinder and the regulator or filter (the lowest point is the connection on the cylinder).
Use by the date written on the attached label.
Cylinder connection types:
G.12: DE/AT/PL
G.1: IT/GR/CY
G.2 (Shell-F) FR/CH/BE/RO
G.7 (Brit.POL) GB Propane
G.8 (EU-Shell) GB Butan
G.10 (POL-WS) SE
X.3 (Komb.Shell-H) NL/RU
X.7 (Shell) SI/CZ/HR
Details
Delivery
Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
