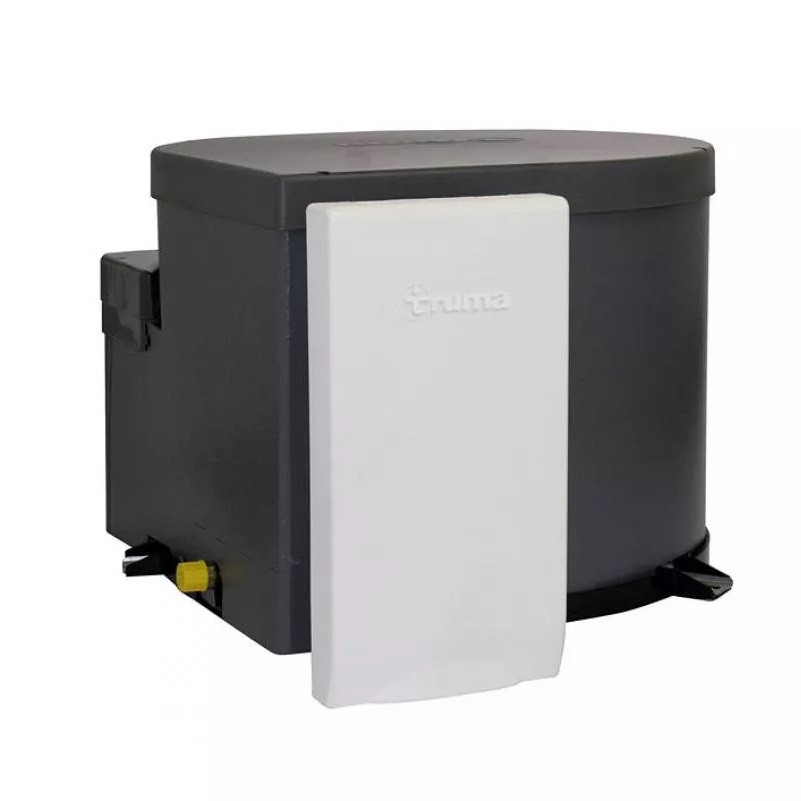

Truma hot water boiler, gas / electric BGE10, 10l capacity

Description

Truma hot water boiler, gas / electric. The Truma boiler is a quick solution for producing hot water in caravans or motorhomes. It is fitted with thermostat and the capacity of the hot water tank is 10 litres. The water can be heated by gas, electric (230V) or both.

The water connection kit is not included and can be ordered here with manual valve or here with frost control valve

Installation instructions can be downloaded here

Specifications:

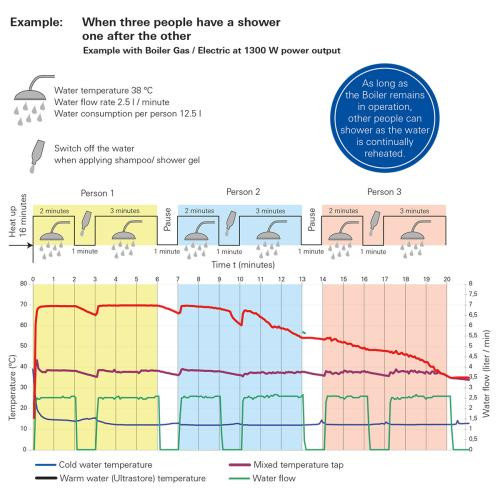

• Water heating time (from 15 °C to approx. 70 °C): approx. 31 min (gas mode) approx. 29 min (electric mode) approx. 16 min (mixed mode)

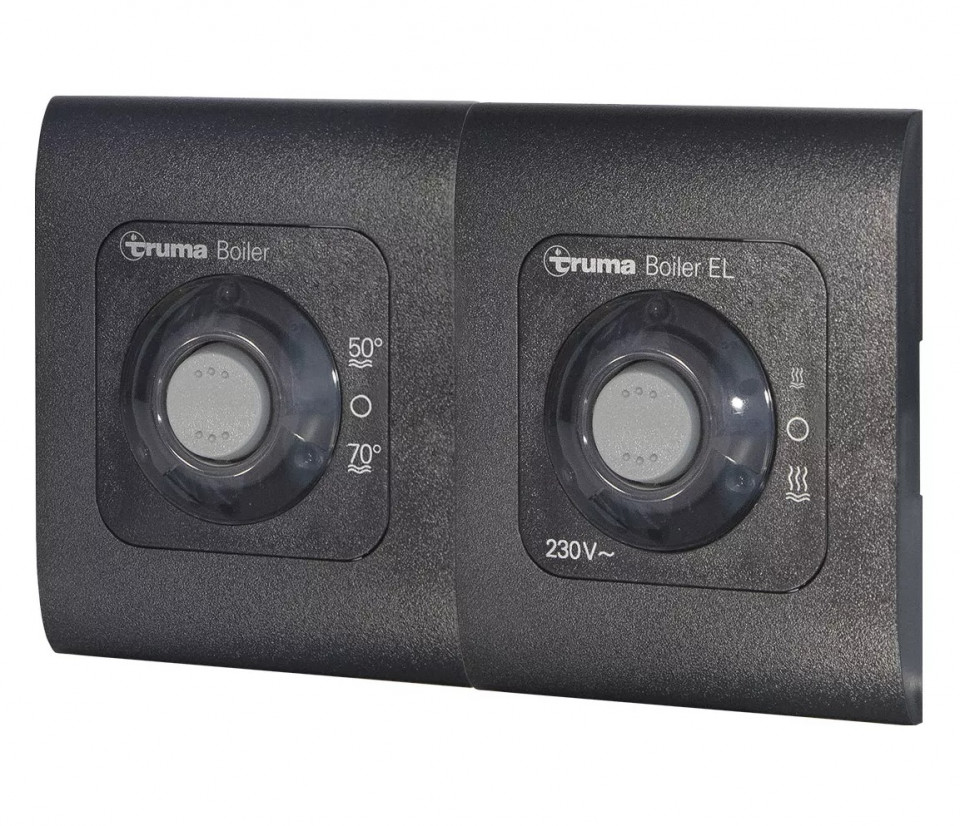

• Thermostat to adjust the water temperature from 30°C to 70°C
• Stainless steel water tank

• Energy source: Propane/butane 30 mbar

• Power supply: 230 V ~. 50 Hz

• The electric heating element can be switched between 850 W and 1300 W.

• Gas output: 1500 W

• Power consumption (at 230 V): 3,7 A / 5,7 A

• Water tank capacity: 10 litres


• Gas consumption: 120 g/h

• Weight (without water): 7,4 kg

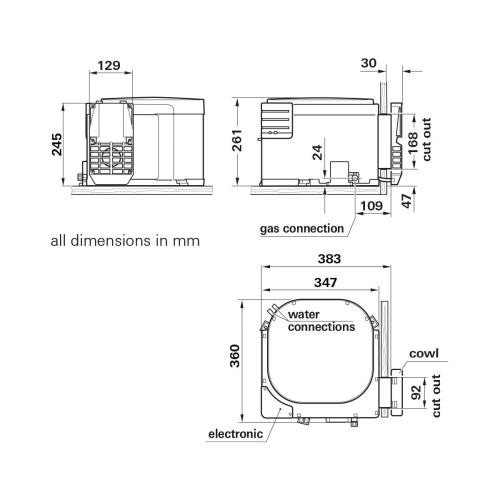

• Dimensions (L x W x H): 350 x 350 x 320 mm

• Power consumption (at 12 V): Switch-on: 0,16 A / Heating: 0,12 A / Stand-by: 0,05 A

• Water pump pressure: max. 2,8 bar

• System pressure: max. 4,5 bar
