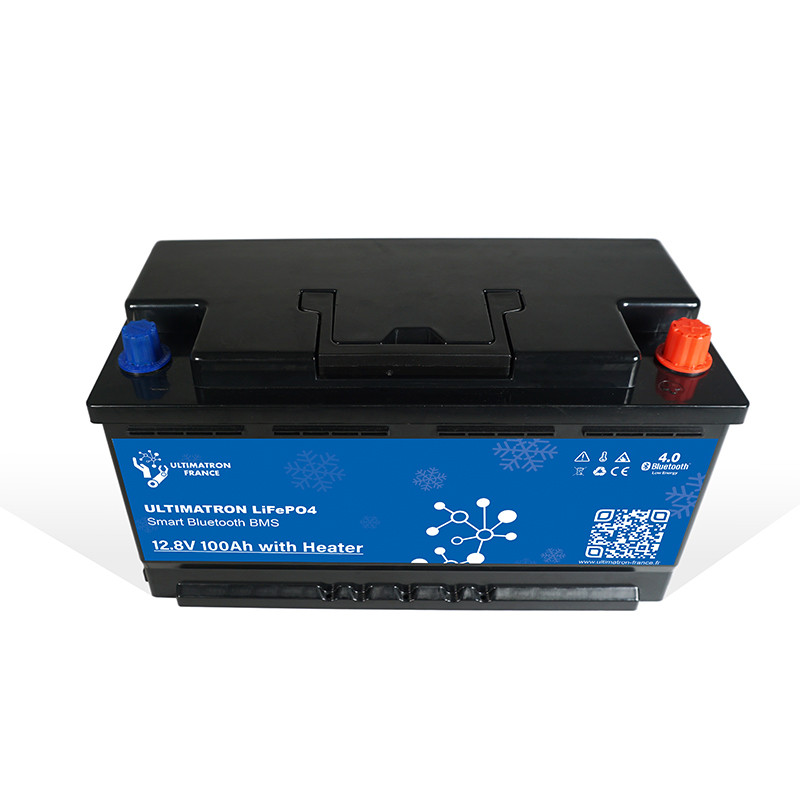

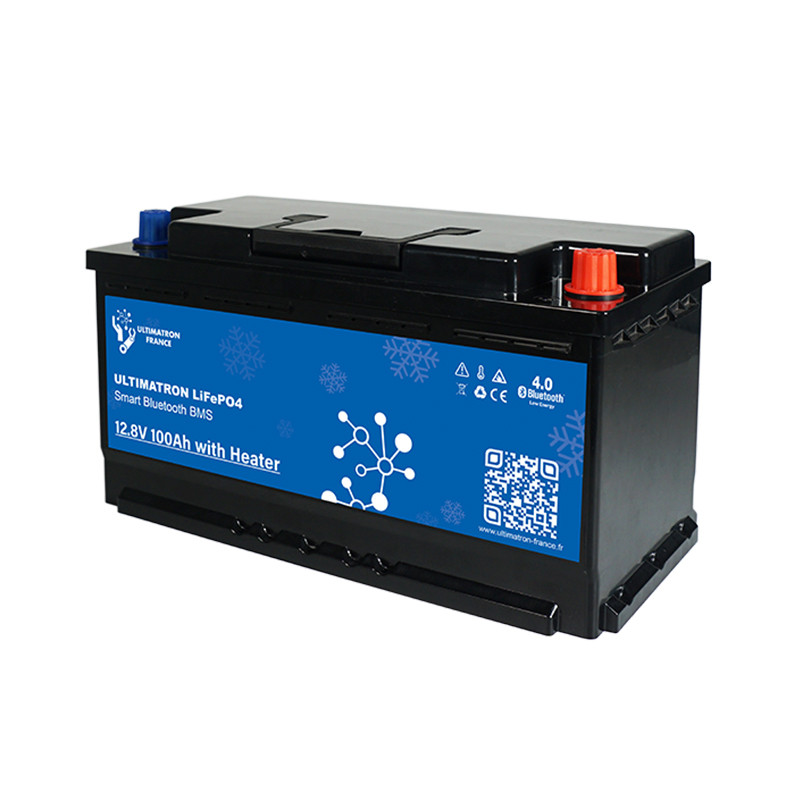

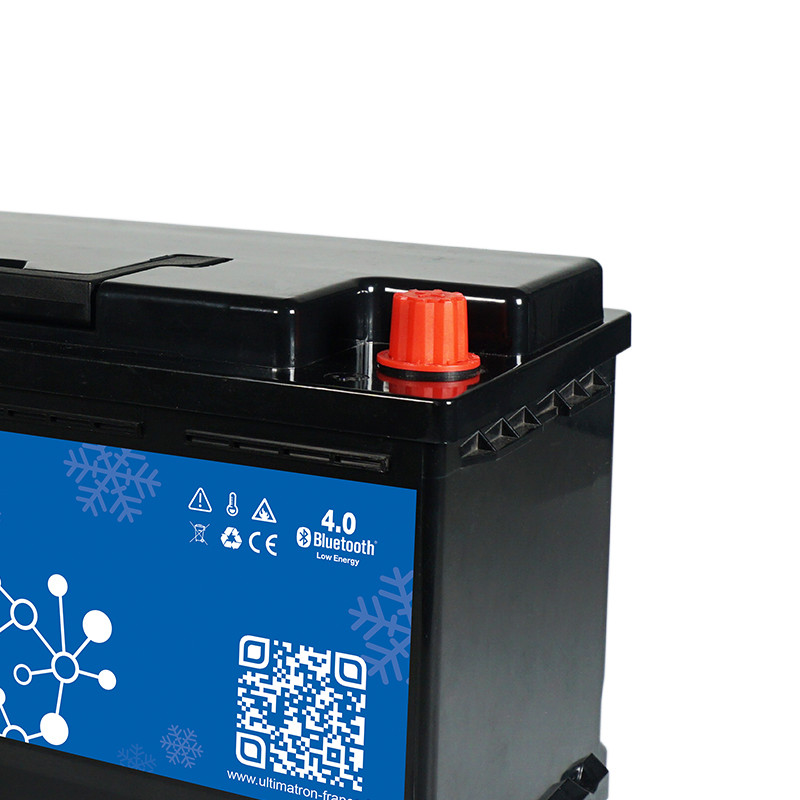

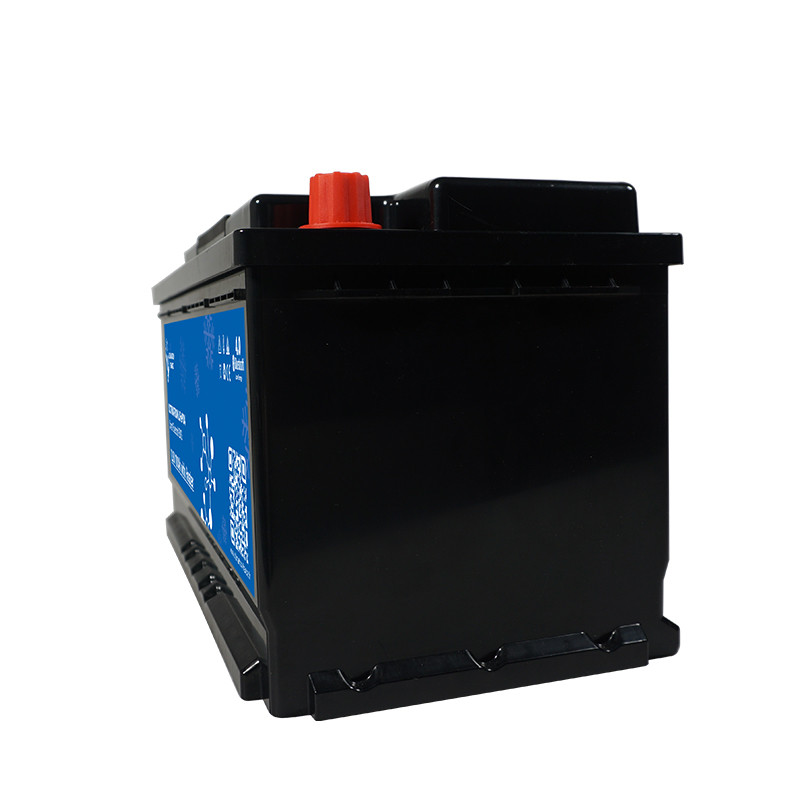

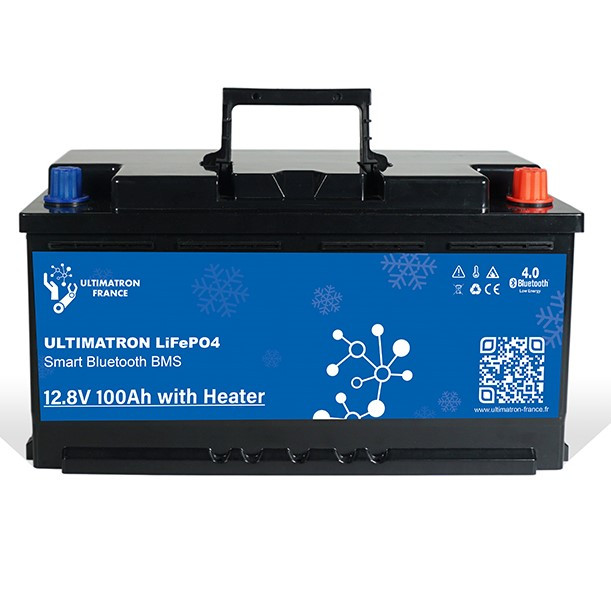

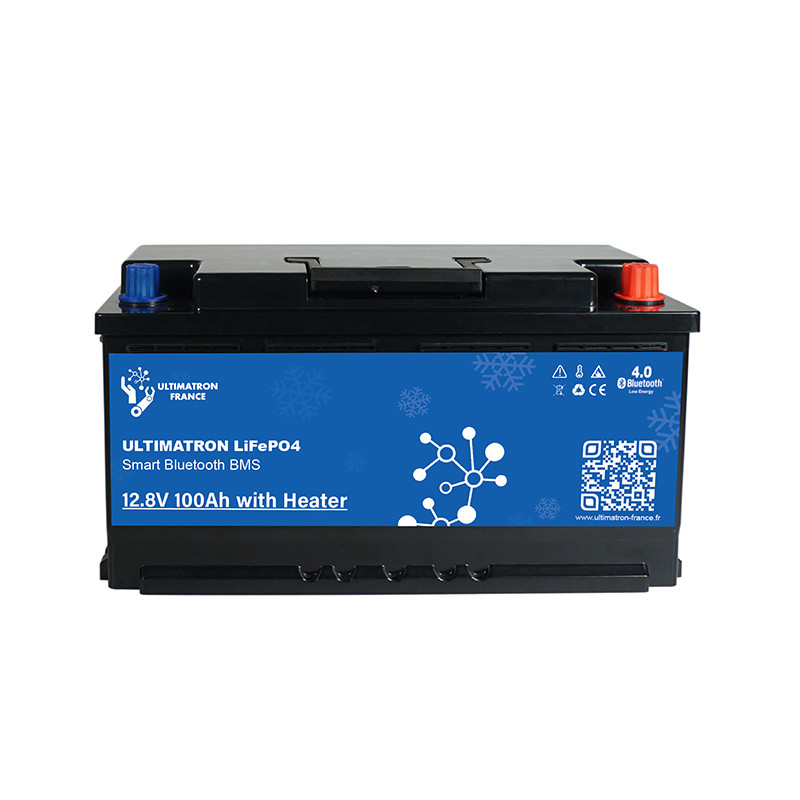

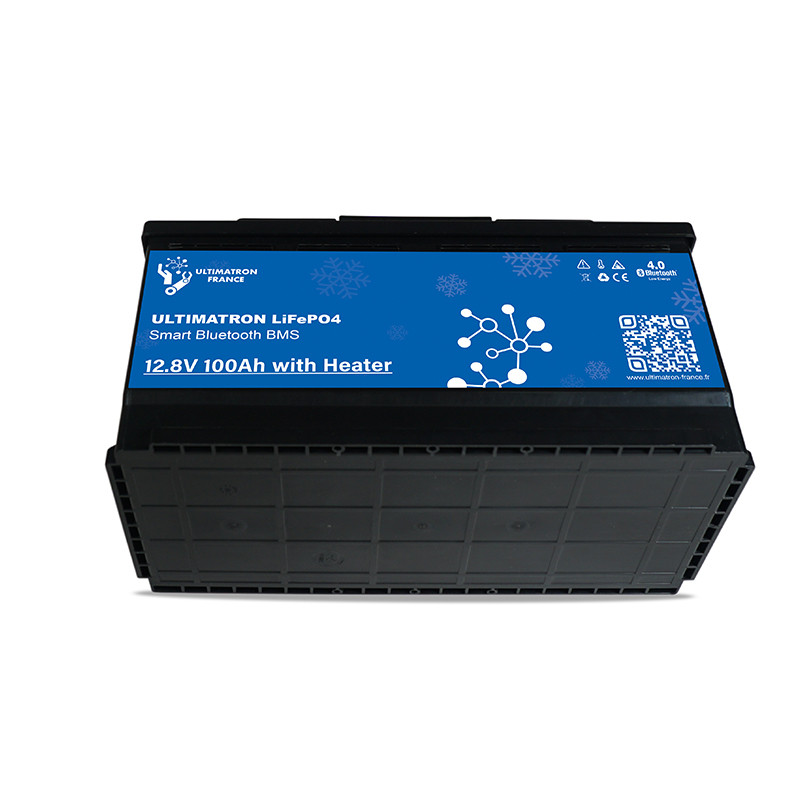

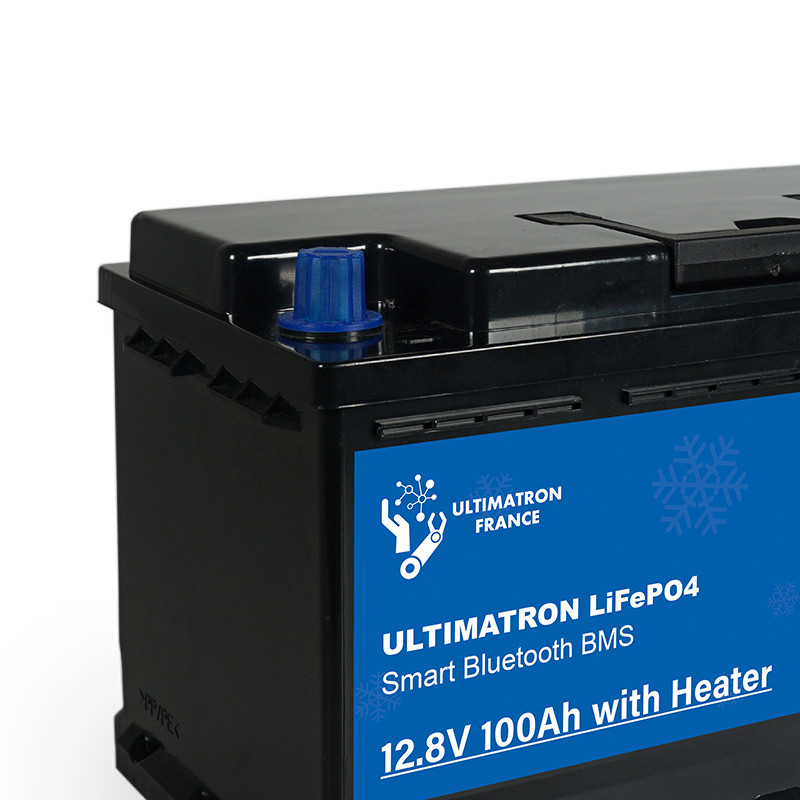

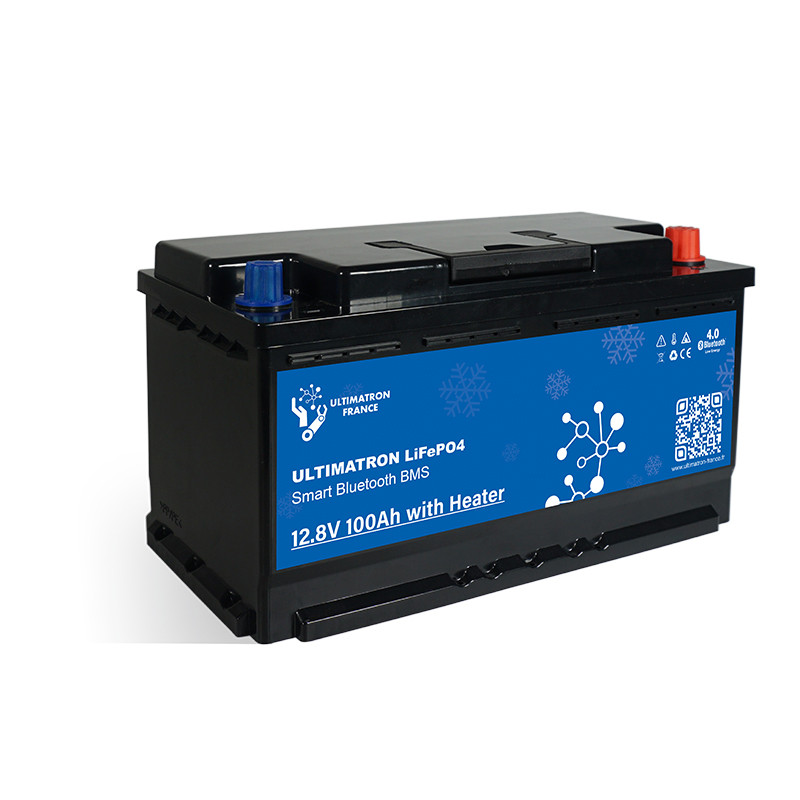

Ultimatron LiFePO4 battery, 12.8V, 100Ah, self-heating for photovoltaic systems, caravans, boats,

Description

The Ultimatron ULS-12-100H 12 V 100 Ah LiFePO4 12 V battery is designed for solar systems with a nominal voltage of 12 V.

The features of this model are:

• Self-heating: the self-heating has a power consumption of approximately 7A and allows the battery to be charged at temperatures as low as -35°C . For protection, the LiFePO4 battery's BMS system disconnects the battery from the charging source at temperatures of 0°C. The battery's self-heating system automatically activates at temperatures below 0°C when the battery is connected to an external power source. After the battery warms up, the BMS restarts charging. For example, if the caravan / motorhome is equipped with solar panels, these will ensure that the battery self-heating system will start up and run if the temperature drops below 0°C.
• BMS (Battery Management System): an integrated battery charge management and control system that protects the battery against overcharging, overvoltage and overheating.
• Bluetooth 4.0 monitoring: by downloading the free app on your smartphone (Apple or Android) you have all key battery parameters displayed in real time
• 5 year manufacturer warranty
• >6000 charge/discharge cycles (guaranteed for 80% capacity)
• Ultimatron ULS series batteries can be connected in series or in parallel.
• Can be mounted under the passenger seat (dimensions 355 x 175 x 188 mm)

Specifications:

Rated voltage: 12,8V
Duty cycle > 6000@80%D.o.D
Rated capacity: 100Ah
Capacity at 20A: 300min
Power: 1280Wh
Element: 3.2V 100Ah prismatic cell
Recommended charging current: 30A / Maximum charging current: 50A
Recommended charging voltage: 14.6V
Continuous discharge current: 100A
Maximum discharge current: 150A
Maximum continuous discharge current: 450A (200 ~ 500 ms)
Reconnection voltage: >11.2V
Recommended low voltage disconnection: 10V
Self-discharge: <3% / month
Dimensions (L x W x H): 355 x 175 x 188 mm
Weight: 12.6kg
Connection terminal type: M8
Housing Material: ABS
Enclosure protection: IP65
Self-heating foils: 80 W
Discharge temperature: -20 ~ 75ºC
Charging temperature: 0 ~ 50ºC
Storage temperature: -5 ~ 35ºC
Certifications: CE / UN38.3 / UL1642 & IEC62133

Full specifications can be downloaded here
