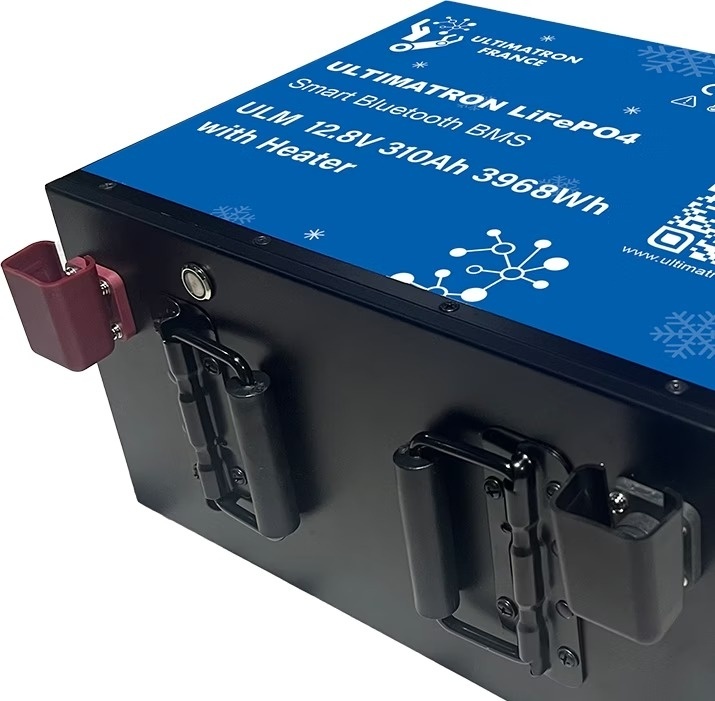

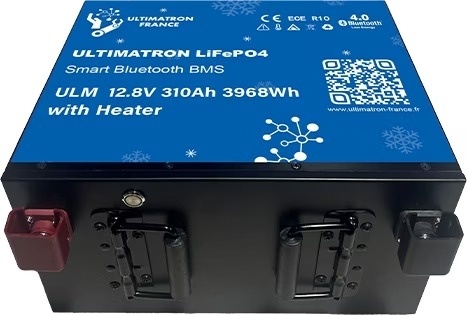

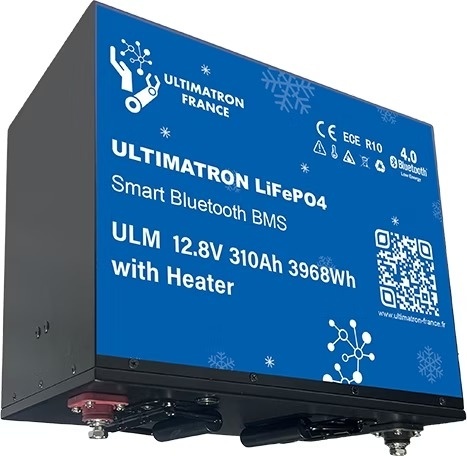

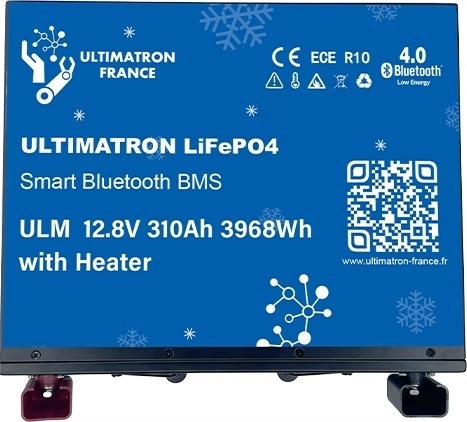

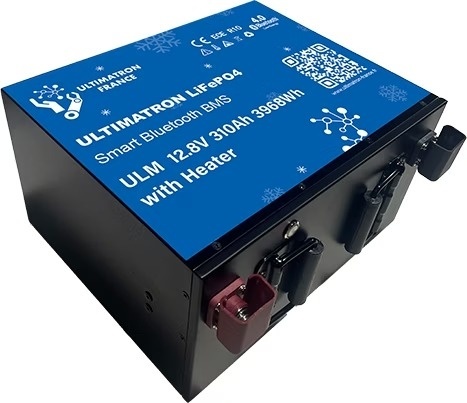

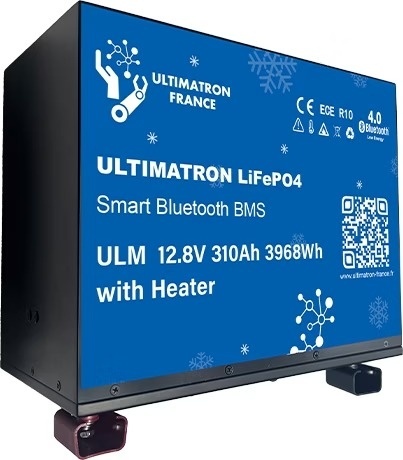

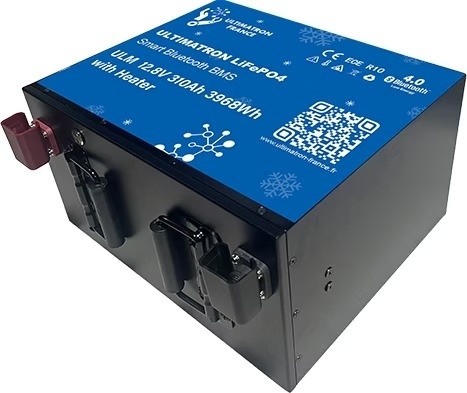

Ultimatron LiFePO4 battery, 12,8V, 310Ah, self-heating, with metal casing for photovoltaic systems, caravans, boats

Description

The Ultimatron LiFePO4 12.8 V 310 Ah battery is designed for solar systems with a nominal voltage of 12.8 V.

Key features of this model are:

• Self-heating: the self-heating has a power consumption of approximately 7A and allows the battery to be charged at temperatures as low as -35°C. For protection, the LiFePO4 battery's BMS system disconnects the battery from the charging source at temperatures of 0°C. The battery's self-heating system automatically activates at temperatures below 0°C when the battery is connected to an external power source. After the battery warms up, the BMS restarts charging. For example, if the caravan / motorhome is equipped with solar panels, these will ensure that the battery self-heating system will start up and operate if the temperature drops below 0°C.
• BMS (Battery Management System): integrated battery charge management and control system that protects the battery against overcharging, overvoltage and overheating.

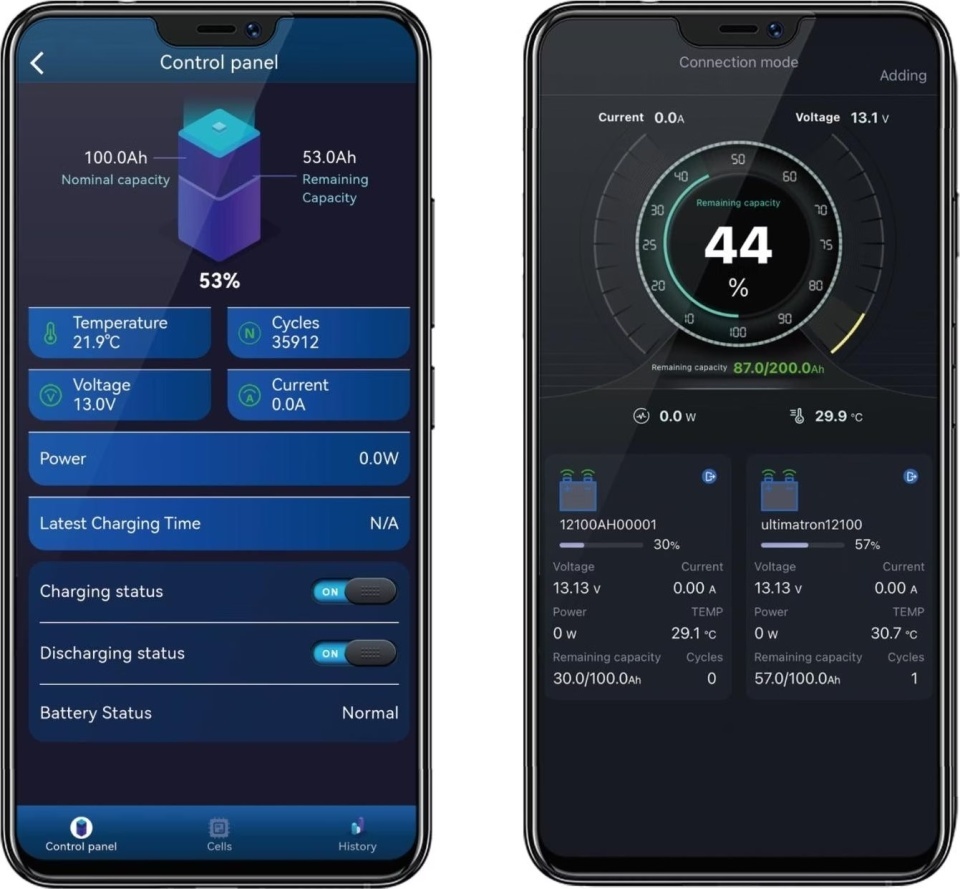

• Bluetooth 4.0 monitoring: by downloading the free app on your smartphone (Apple or Android) you have all key battery parameters displayed in real time
• 5 year manufacturer warranty
• >6000 charge/discharge cycles (guaranteed for 80% capacity)
• 4 Ultimatron ULM series batteries can be connected in parallel.
• Can be mounted under the seat (dimensions 355 x 330 x 190 mm)

Specifications:

Nominal voltage: 12,8V
Dutycycle > 6000@80%D.o.D
Nominal capacity: 310Ah
Capacity at 40A: 465min
Power: 3968Wh
Element: 3.2V 100Ah prismatic cell
Recommended charging current: 90A / Maximum charging current:155A
Recommended charging voltage: 14.6V
Maximum continuous discharge current: 200A
Reconnect voltage: >11.2V
Low voltage disconnection: 10V (2000 ms)

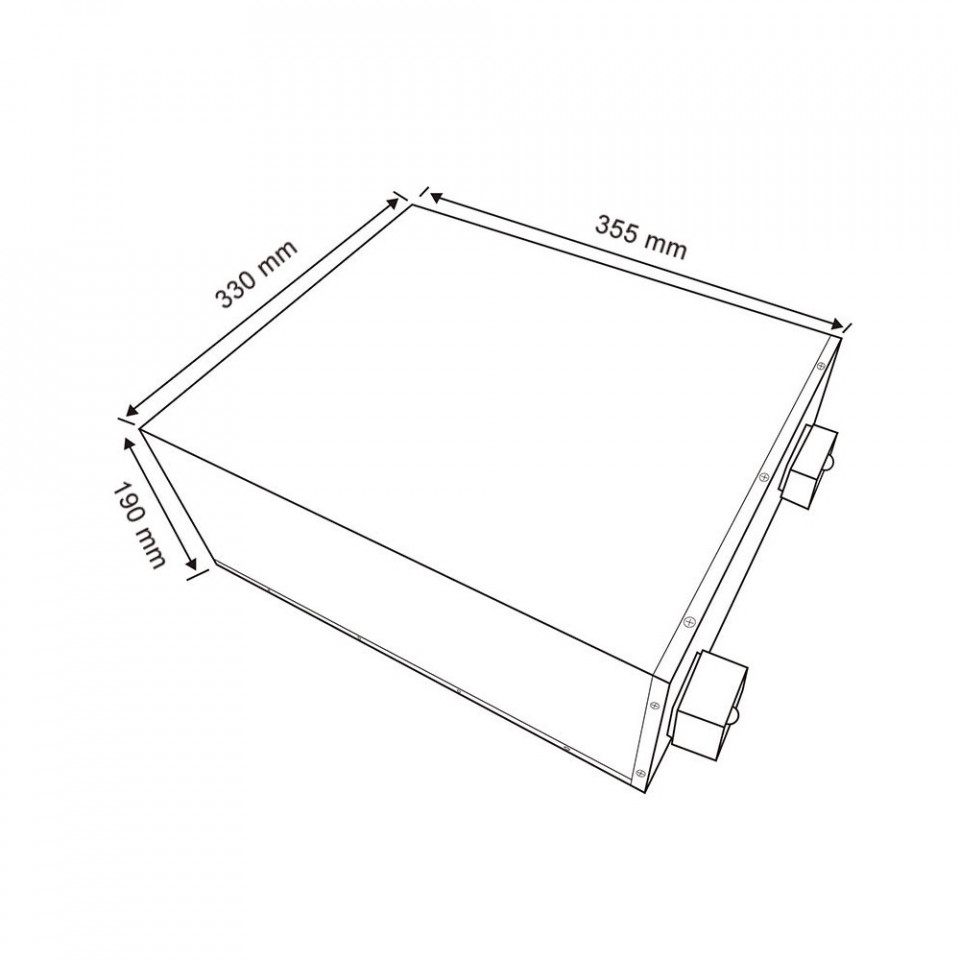

Dimensions (L x W x H): 355 x 330 x 190 mm
Weight: 29.30kg

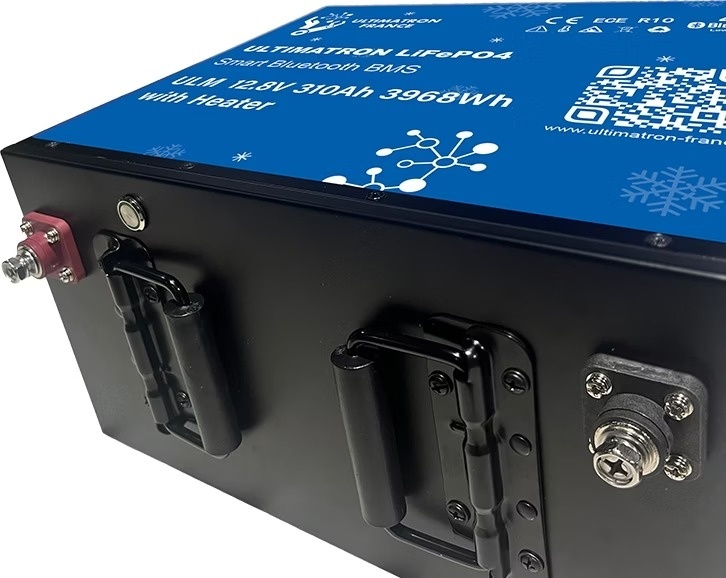

Connection terminal type: M8
Housing material: Metal
Enclosure protection: IP62
Self-heating foils: 80 W
Discharge temperature: -20 ~ 75ºC
Charging temperature: 0 ~ 50ºC
Storage temperature: -5 ~ 35ºC
Certifications:CE / UN38.3 / UL1642 & IEC62133 / ECE R10

ATTENTION !!! Due to its weight of more than 28kg, this product has a fixed shipping charge of 40 RON.

Full datasheet can be downloaded here
