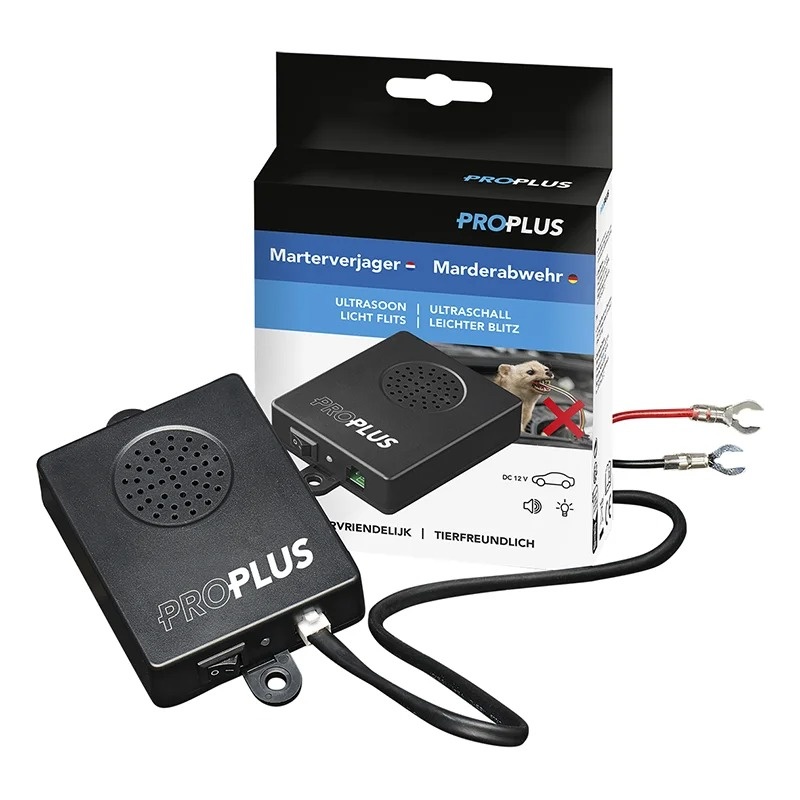

Ultrasonic rodent detector, 12V operation

Description

Anti rodent device with ultrasound, 12V connection. It can be placed in the engine compartment or inside the cab during longer periods of parking to repel rodents.

Specifications:

• Frequency 22-45 kHz / approximately 90 dB
• Power consumption: 0.6W
• Operating temperature range: -30 °C to 70 °C
• Supply voltage: 12V DC

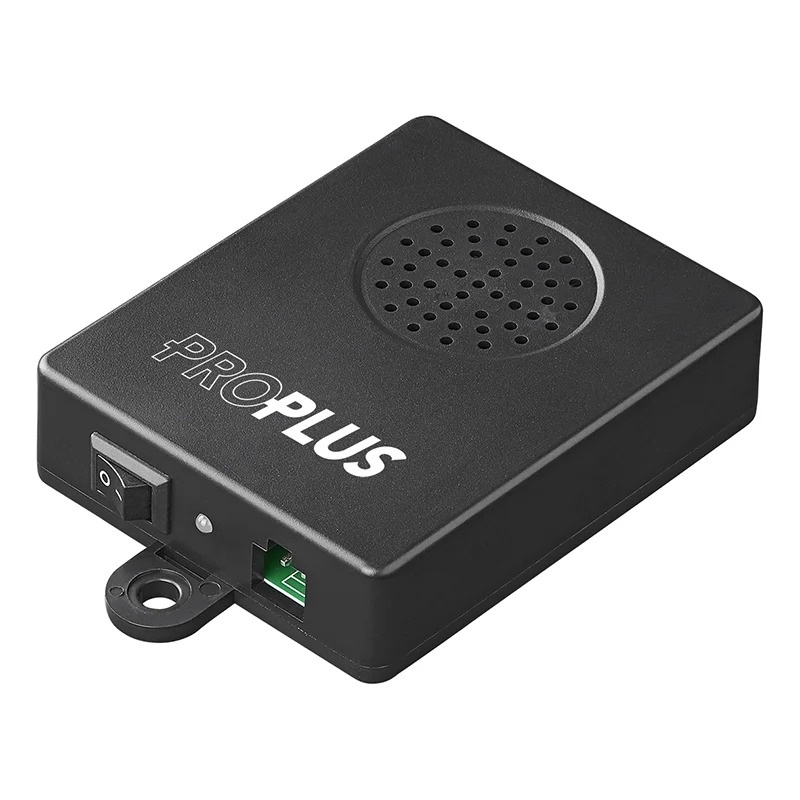

1. ON/OFF switch
2. Ultrasonic diffuser
3. Power indicator
4. Cable port
5. Function indicator

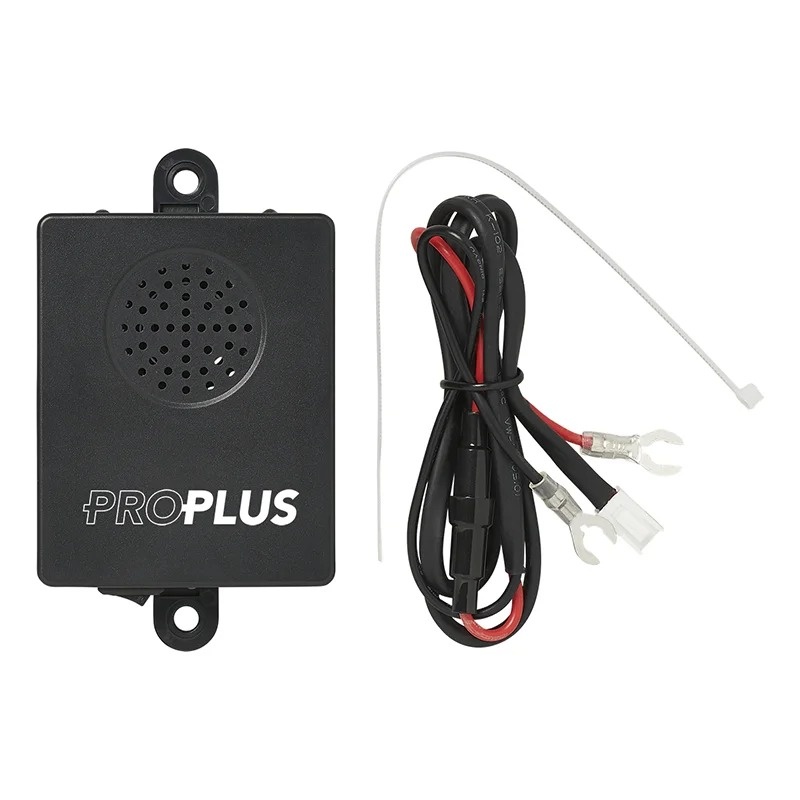

6. Cable

INSTALLATION
1) Connect the two connectors to the car battery, black cable(-), red cable(+).
2) Secure the device to the other cables using the quick clamp included in the package
3) Switch on the device at the switch. The power indicator (red) and operation indicator (white light) will stay on for 3 seconds. The device will start to operate and emit ultrasound.

OPERATION OF THE DEVICE
When the vehicle is started, the vibration of the vehicle gives a signal to the device, the operation indicator flashes red and the device will stop operating.
When the vehicle stops, the vibration ends and after 90 seconds the unit will start to operate.

APPLICATION
For all vehicles that are powered by a 12V battery: cars, motorcycles, tractors, trucks, etc. We do not recommend installing this unit in damp areas or allowing water to enter the unit. Protect the unit from dust and dirt to avoid damage.

ATTENTION
1) There is a vibration sensor inside the unit that makes a noise when the unit is shaken. This is normal.
2) Overcurrent can blow the fuse. If the device - all indicators do not light up when plugged in and switched on, check the fuse in the red wire and replace it if it is blown (125W 500mA 12V).
3) Improper installation may cause a short circuit or electric shock.
4) If rodent tracks are found in the motor compartment after installation, check the power indicator, but pay attention to point 2 above.

Installation instructions can be found here
