Universal full aluminium tent frame for motorhomes, tent pole with clips

Description

Universal aluminium pole system for caravan tents.

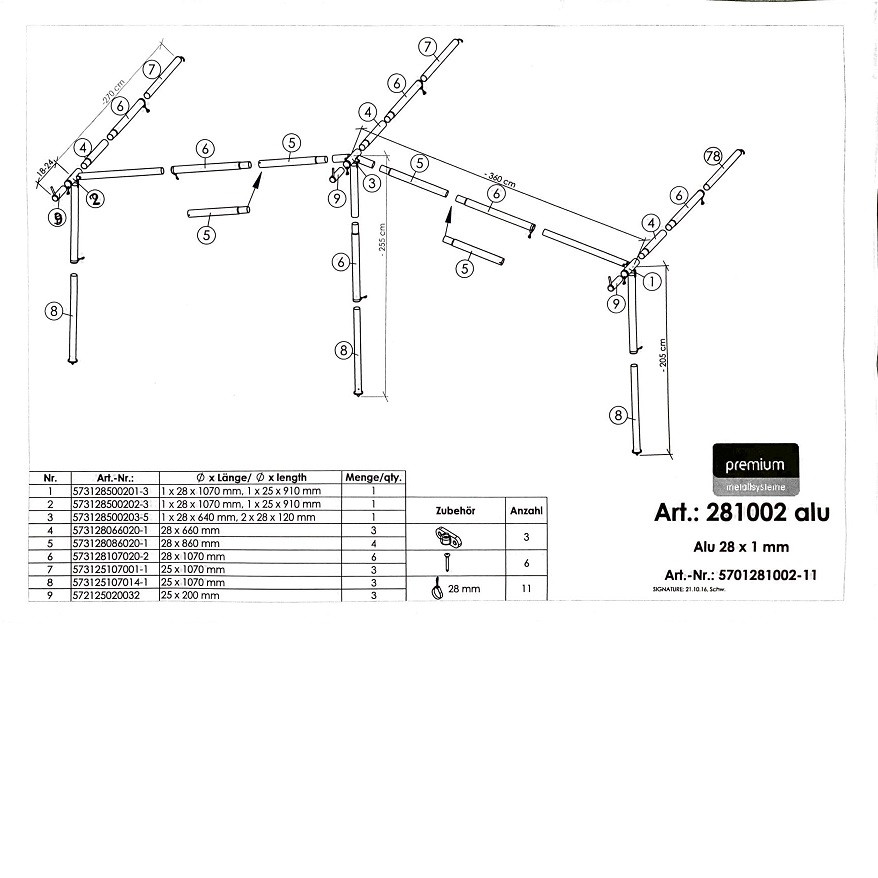

The system is adjustable covering tent pole lengths from 790 cm to 1060 cm. Adjustment is made both by using the clamps and by attaching or not 2 poles (no. 5 in the sketch) to the front front.

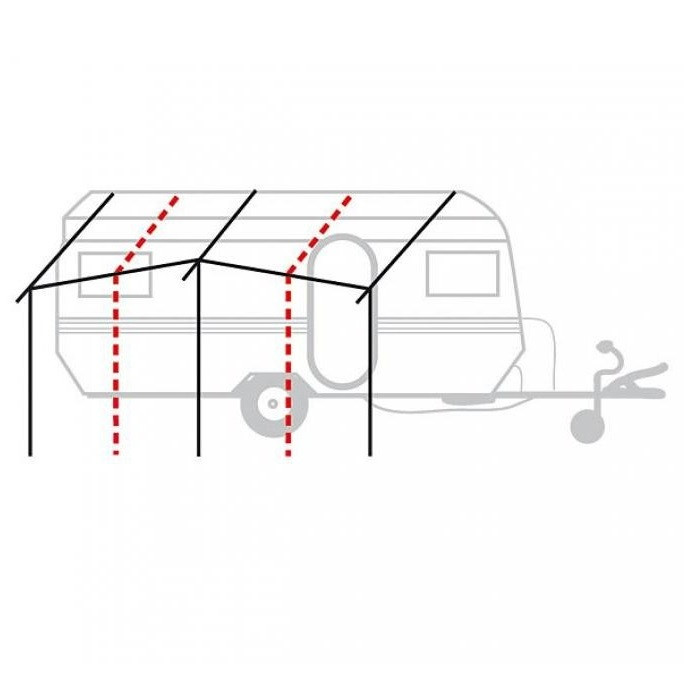

On awnings for cheder lengths of 910 cm or more, we recommend the use of at least 2 additional poles at the roof.

Set contains:

• 3 plastic brackets for attaching the tent poles
• 11 clamps ∅28
• item 1,2 sketch: 1 x ∅28 x 107 cm / 1 x ∅28 x 91 cm: 2 pcs
• item 3 sketch: centre piece 1 x ∅28 x 64 cm / 1 x ∅28 x 12 cm / 1 x ∅28 x 12 cm: 1 piece
• poz 4 sketch: bat ∅28 x 66 cm 3 pcs
• poz 5 sketch: bat ∅28 x 86 cm 4 pcs
• poz 6 sketch: bat ∅28 x 107 cm 6 pcs
• poz 7 sketch: bat ∅25 x 107 cm 3 pcs
• poz 8 sketch: bat ∅25 x 107 cm 3 pcs
• poz 9 sketch: stick ∅25 x 20 cm for eaves 3 pcs
