Universal steel tent frame for caravans, with pole clips

Description

Universal steel tent peg system for caravan tents.

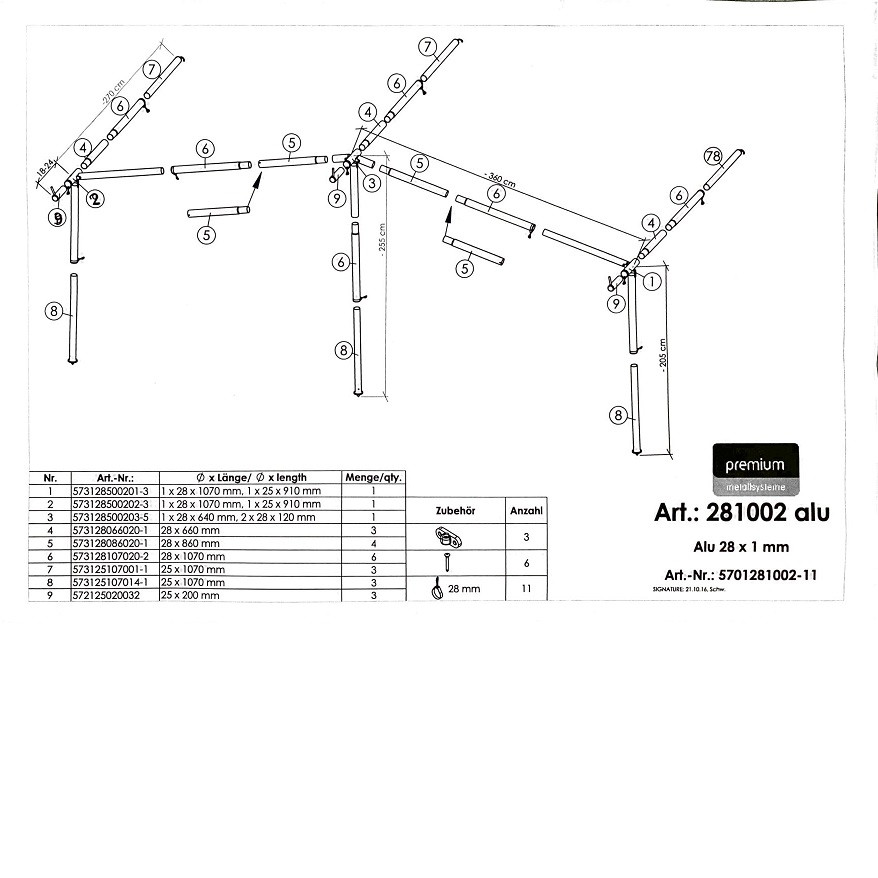

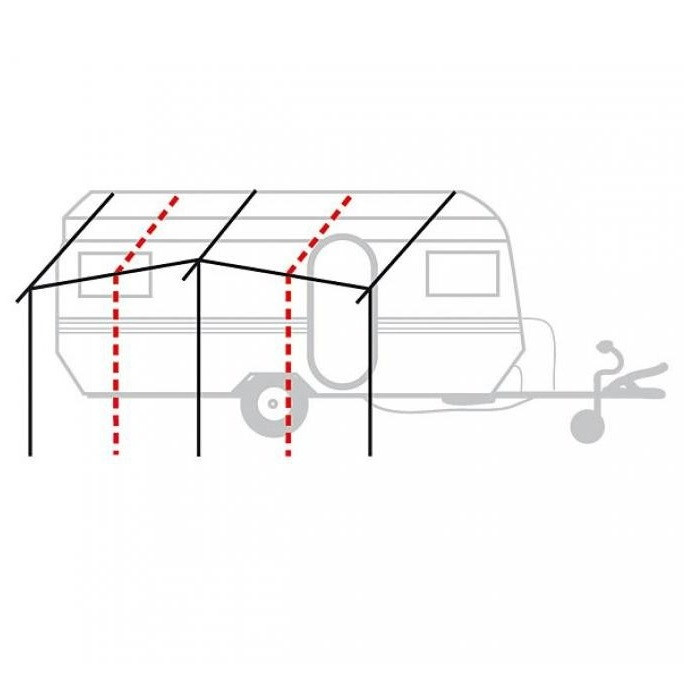

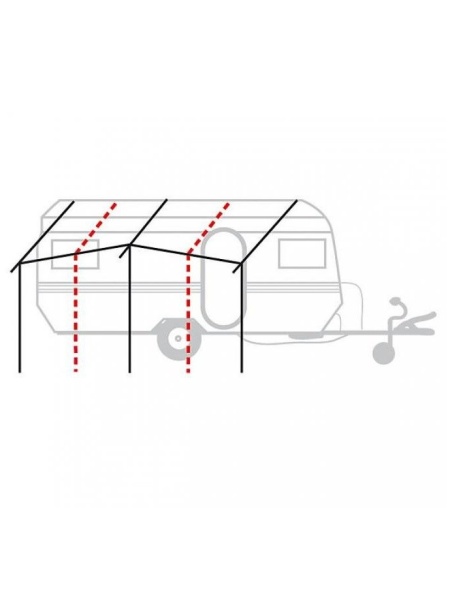

The system is adjustable to accommodate awning lengths ranging from 790 cm to 1060 cm. Adjustment is achieved both via clamps and by attaching or omitting 2 poles (no. 5 in the diagram) to the front panel.

For awnings with a canopy length of 910 cm or more, we recommend using at least 2 additional poles on the roof.

The set contains:

• 3 plastic brackets for securing the poles to the caravan
• 11 ∅28 mm clamps
• item 1,2 sketch: corner 1 x ∅28 x 107 cm / 1 x ∅28 x 91 cm: 2 pcs
• item 3 sketch: centre piece 1 x ∅28 x 64 cm / 1 x ∅28 x 12 cm / 1 x ∅28 x 12 cm: 1 pc
• item 4 sketch: bar ∅28 x 66 cm 3 pcs
• item 5 sketch: rod ∅28 x 86 cm 4 pcs
• item 6 sketch: rod ∅28 x 107 cm 6 pcs
• item 7 sketch: rod ∅25 x 107 cm 3 pcs
• item 8 sketch: batten ∅25 x 107 cm 3 pcs
• item 9 sketch: batten ∅25 x 20 cm for eaves 3 pcs
