Universal water level measuring set with level indicator

RON 489.00 (VAT included)

Free shipment for orders > 60 Euro

How can we help?

Ask for details

Description

Complete set for measuring the water level for all DIN 96 (∅ 80 mm) lidded tanks and jerrycans. The set is delivered ready for use with all components included.

Technical specifications:

Filling level indicator
Operating voltage: 12 V DC (9 V - 16 V). A 9V battery independent of the caravan/caravan battery can be used.
Current consumption: off: 0 mA / on: 35 mA / 12V
Dimensions: 85 x 47 x 17 mm
Installation dimensions (L x W): 62 x 29 mm
Installation depth at cover: 14 mm
Water level sensor:
Tank inlet: 80 mm
Length of sensor rod: maximum 370 mm (adapts to tank height). Each rod corresponds to a displayed filling level. Each rod is adjusted to the required length (100%, 75%, 50% etc) depending on the tank size.

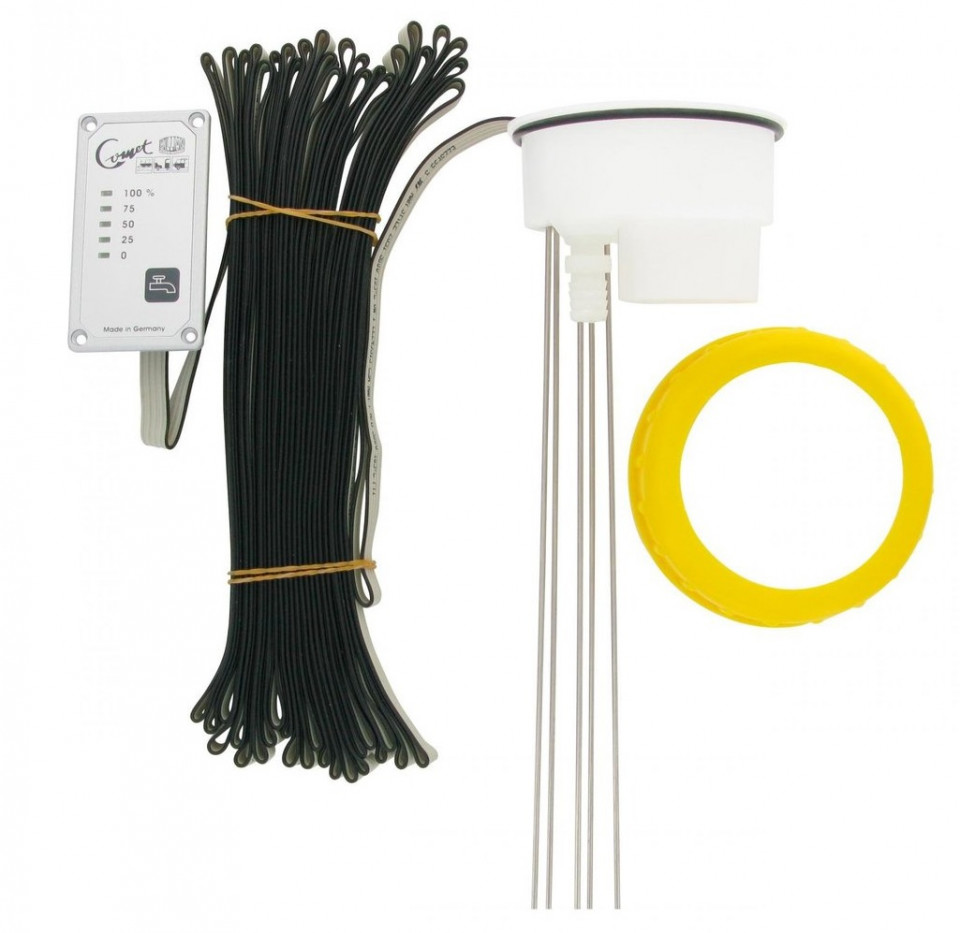

Package contains:
1 pcs display unit
4 screws
1 pcs water level sensor
1 flat cable 12 m with 5 wires for connecting the sensor display
1 pc DIN 96 cover
1 pc assembly and operating instructions including drilling template

Details

Categories

Water bottles and jerry cans, Tanks, water supply, accessories, Control panel, sensors, display, Water level indicators

Weight

0.4 kg

Brand

Comet

Delivery

Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
