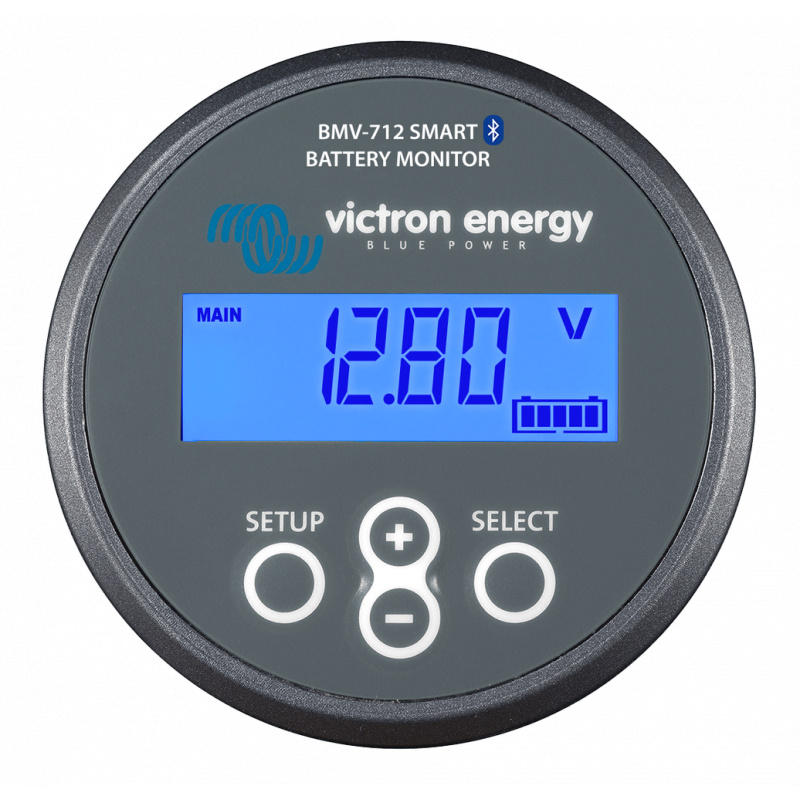

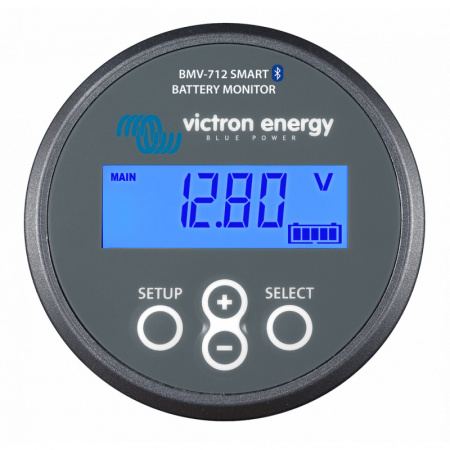

Victron Battery Monitor BMV-712 Smart Monitoring System

Description

BMV-712 Smart is a high precision battery parameter monitoring device with built-in Bluetooth technology. The main function of the device is to calculate power consumption and battery charge status. The consumption in ampere-hours is calculated by integrating the current flow into or out of the battery. Most Victron Energy appliances already have bluetooth technology built in so wireless communication between products will simplify system installation and increase system performance.

Installation instructions and operating manual can be downloaded here

Download the Victron Bluetooth application and with the help of a smart phone we can do :

• customise settings
• monitor all important data on a single screen and data history
• software updates in case of newer versions

Features:

- Battery voltage (V).
- Battery charge/discharge current (A).
- Ampere-hours consumed (Ah).
- Charge level (%).
- Time until discharge level is reached.
- Visual and audible alarm: over and under voltage and/or discharged battery.
- Programmable relay for alarm or generator start.

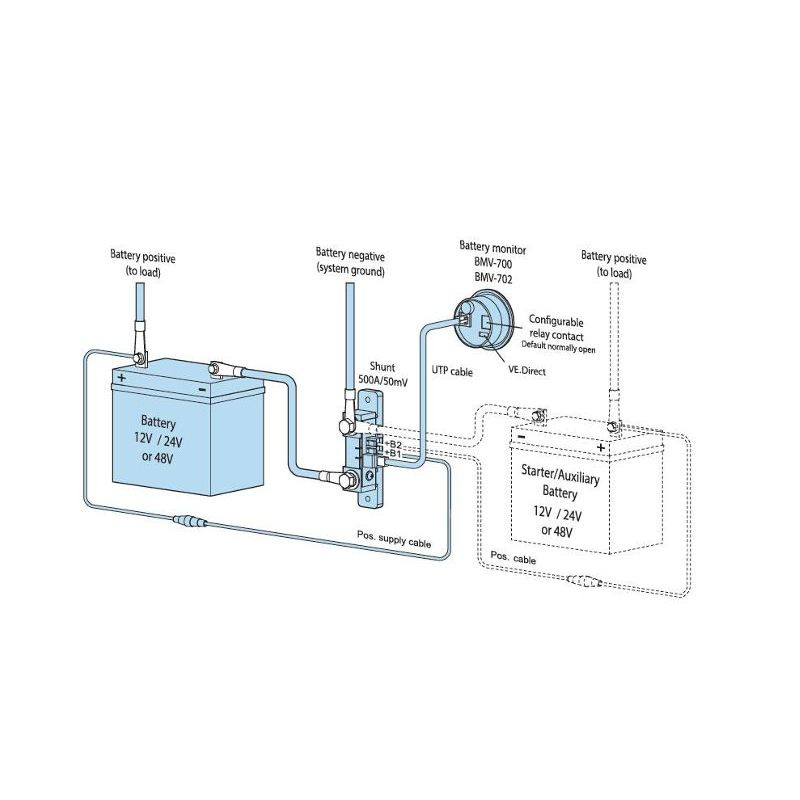

- Input for second battery for measuring voltage, temperature and necessary alarms

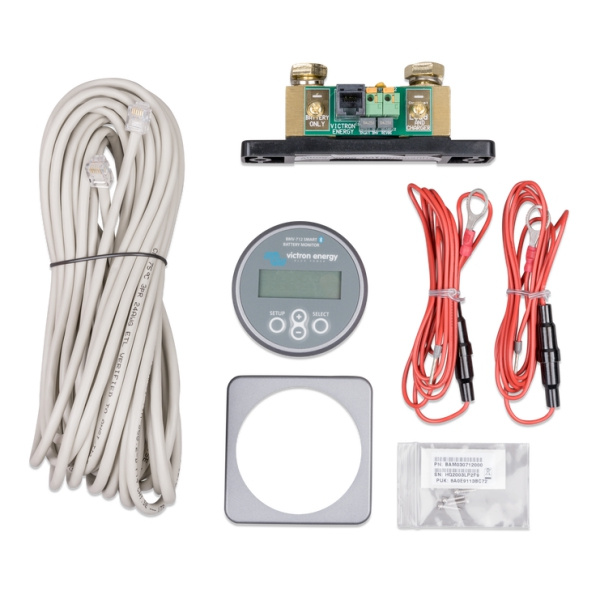

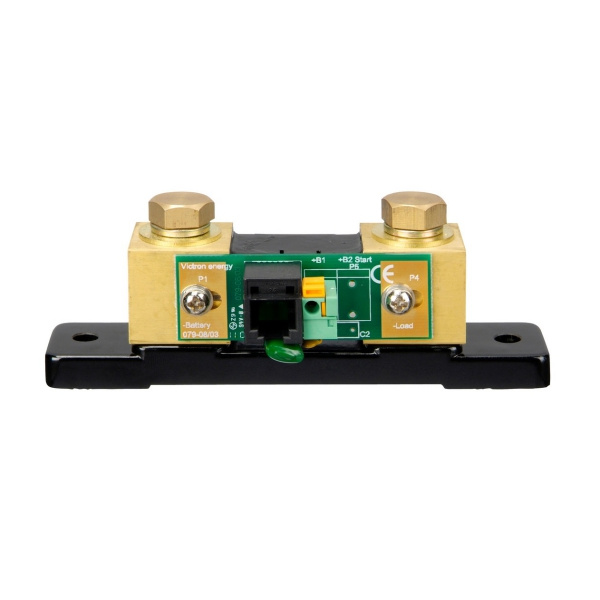

Package contains: main unit, are 500A, 2 x 1.5 m (59") cables with 1 A fuse, 10 m (33 feet) RJ12 UTP cable, square front panel along with a mounting flange, 4 screws, quick installation guide, serial number sticker.

Dimensions:

- diameter: 63 mm

- thickness: 52 mm
