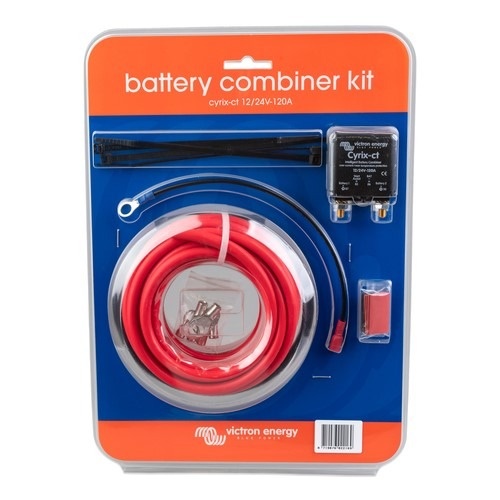

Victron Cyrix-ct 12/24 V 120A battery combiner mounting set

Description

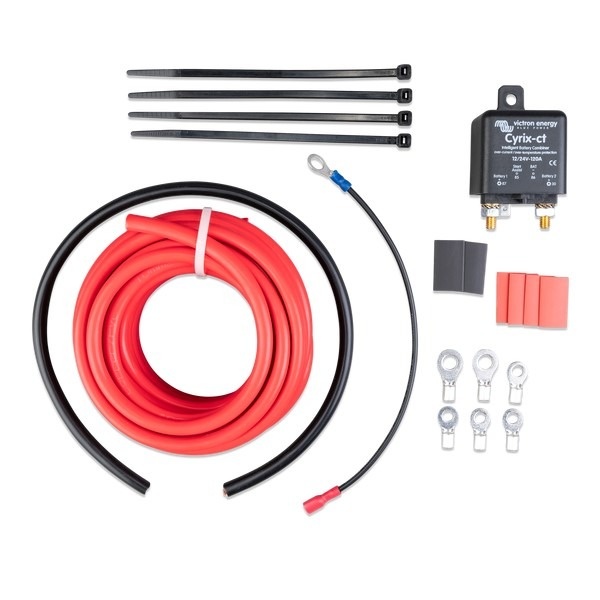

Complete assembly set. The set contains:

• 6 m 10 mm² RED cable
• 0,5 m BLACK 10 mm² cable
• 0.2 m BLACK cable 1.5 mm² with M8 cable lug and 6.3 mm quick terminal
• 2 M8 cable lugs with insulating sleeve
• 4 M6 cable lugs with insulating sleeve
• 4 cable clamps 150 mm
• Combination relay Victron Cyrix-ct 12/24 V 120A for the management of 2 batteries in motor vehicles or boats. It facilitates the simultaneous use of 2 batteries and their charging: it self-selects the operating voltage and prioritises the charging of the starter battery. When the engine (the source of battery charging) is switched off, the relay disconnects the main battery from the circuit to protect it from discharging. It connects the batteries in parallel when a preset voltage level is reached (when the battery is charged) or disconnects them when the voltage drops below a (preset) voltage level.

Specifications:
Nominal voltage: 12 V or 24 V DC
Rated current (DC): 120 A
Rated current (peak): 180 A continuous 5 s
Connection voltage: 13.3-13.8V / 26-27.6V (depending on software)
Disconnect voltage: 11.0-12.8V / 22 -25.7V (software dependent)
Standby current consumption: 4mA max
Permissible operating current: 220mA (12V) / 120mA (24V)
Operating temperature: -40 to +40 ºC
Ingress protection: IP54
