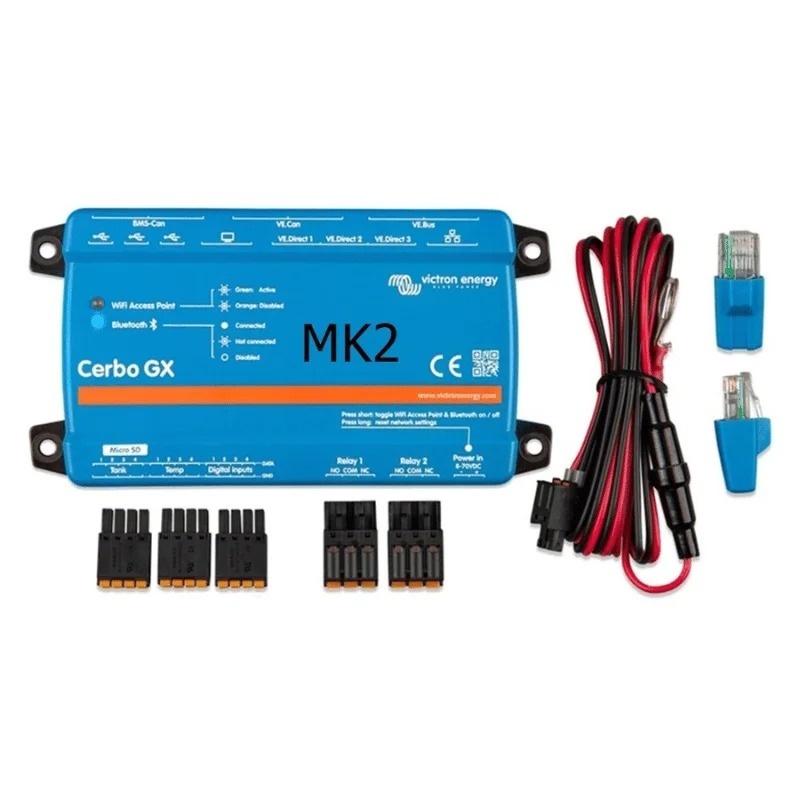

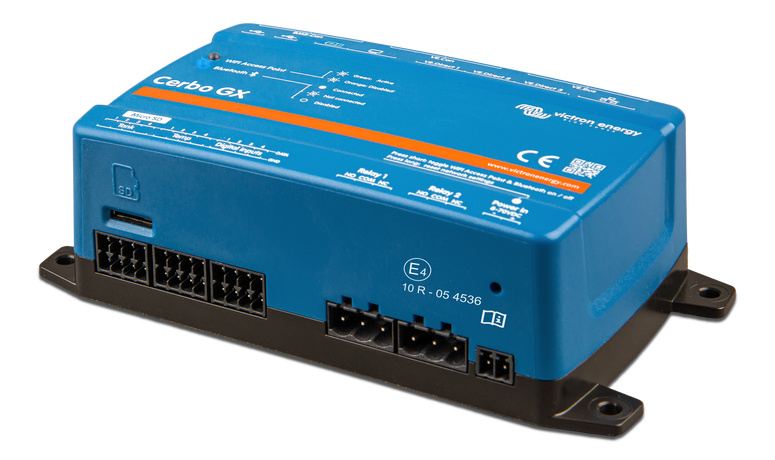

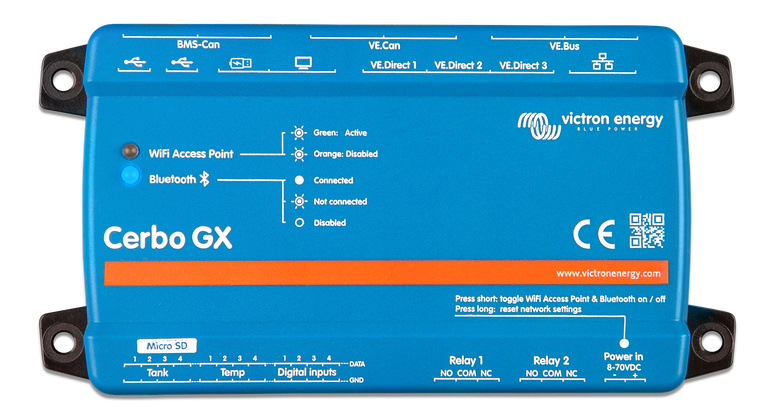

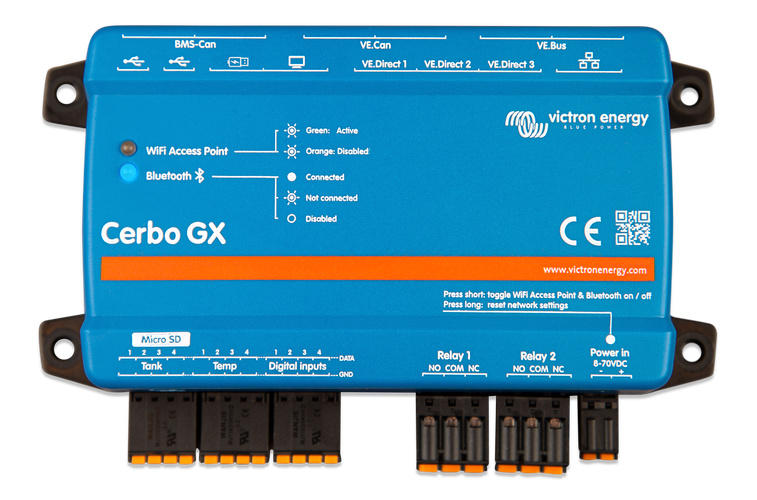

Victron Energy Cerbo GX MK2 monitoring system

Description

Cerbo GX MK2 is an advanced communications centre that provides complete control and remote monitoring of Victron power systems, optimising performance through multiple connection options including Bluetooth, WiFi and NMEA 2000.

The Victron Energy Cerbo GX is a central communication module that collects information from the systems present in caravans or motorhomes and maximises their performance. It instantly monitors battery charge level, power consumption, collects power from photovoltaic panels, generator and grid or checks tank levels and temperature. With Cerbo GX you can remotely follow the alerts, perform checks and immediately resolve the different situations that occur.
Cerbo GX is designed to maximise the real-time performance of system components and keep them perfectly synchronised. Victron
The GX Touch 50 display (which is optional and must be purchased separately) allows immediate visualisation and adjustment of connected systems.

Product leaflet can be downloaded here

Differences from Cerbo GX:

Two fully functional VE.Can ports (isolated), compared to only one VE.Can and one BMS-Can port on previous models.
All three USB ports are fully functional.
RJ-45 connections are rotated 180° for easier access.
Digital inputs can count pulses.

Connections and Features:

Bluetooth for connection through the VictronConnect app.
WiFi for VRM portal access.
NMEA 2000 output for integration into maritime networks.
Remote monitoring and control via the VRM Console, including in local area networks (LAN).
Optimised Performance: Cerbo GX MK2 maximises the real-time performance of system components, supporting lithium battery management and control of up to 25 VE.Can solar chargers simultaneously. It can monitor 4 tanks, 4 temperature ports and includes multiple communication ports for expanded control.

Ports and Connections:

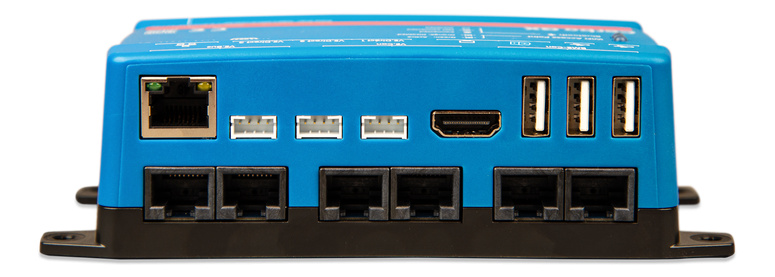

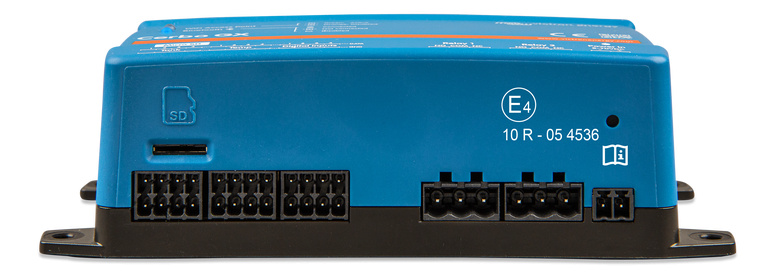

3 VE.Direct ports, 2 VE.Can ports, 2 BMS-CAN ports, 2 VE.Bus ports, 3 USB ports, Ethernet jack, WiFi, Bluetooth, SD card, and inputs for 4 temperature sensors and 4 tank sensors.
