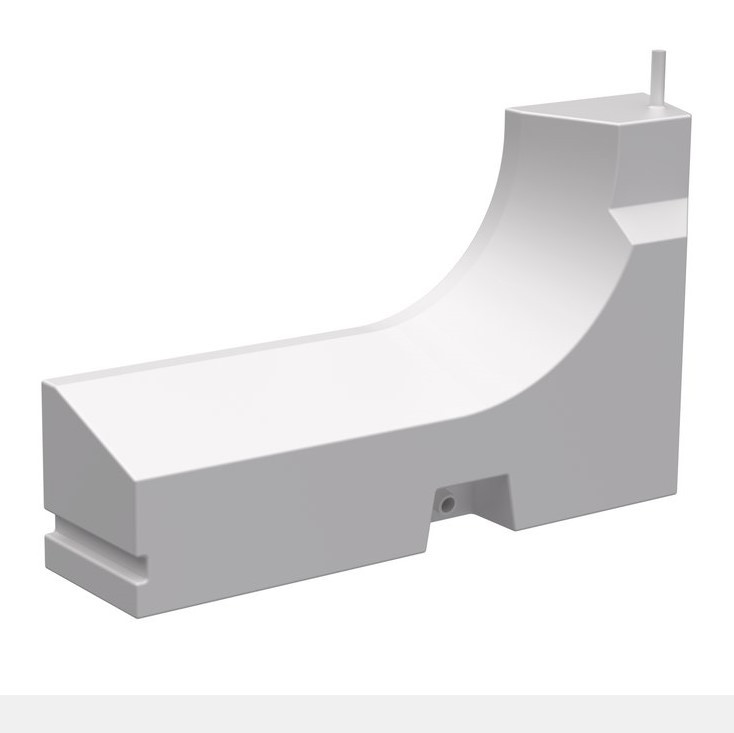

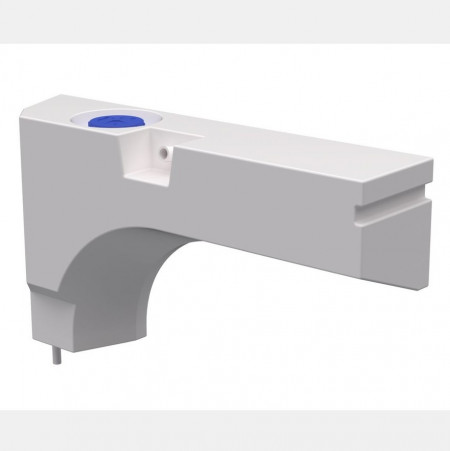

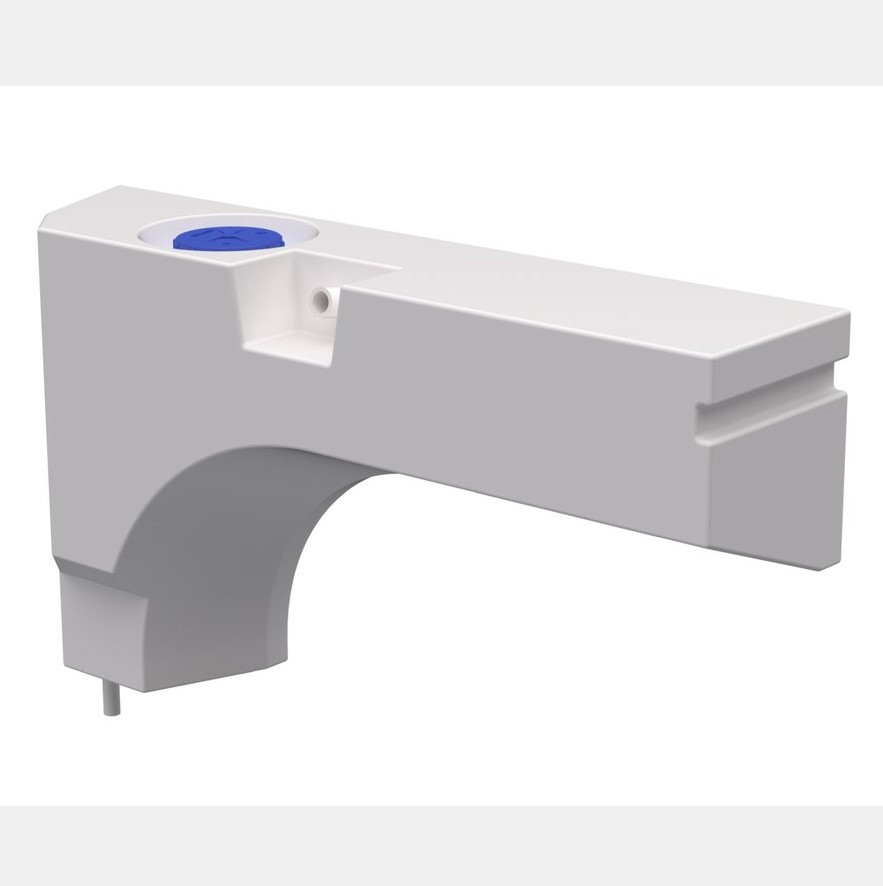

Water tank 112l for water with installation over the RIGHT rear, Ducato / Sprinter / Transit / Master

Description

Tank 112l for water with installation over the rear wing compatible with the following vehicle models:

- Fiat Ducato / Peugeot Boxer / Citroen Jumper year of manufacture starting with 2018.

- Mercedes Sprinter from model year 2017

- Ford Transit manufactured since 2013

- Renault Master manufactured since 2010

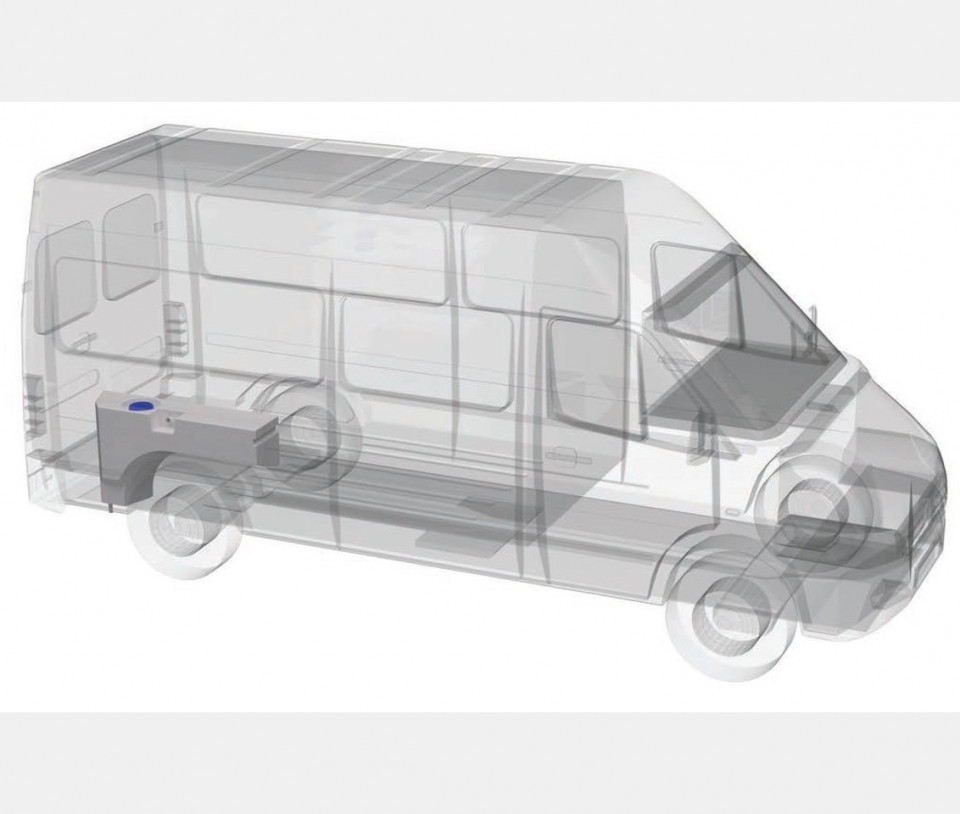

Tank shape is ideal for installation above the RIGHT rear wheel inside the vehicle.

Specifications:

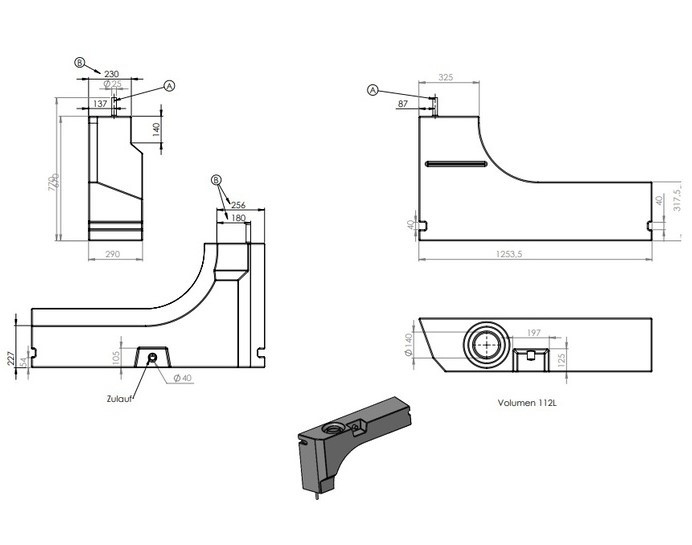

• Dimensions: 1250 x 670 x 290mm

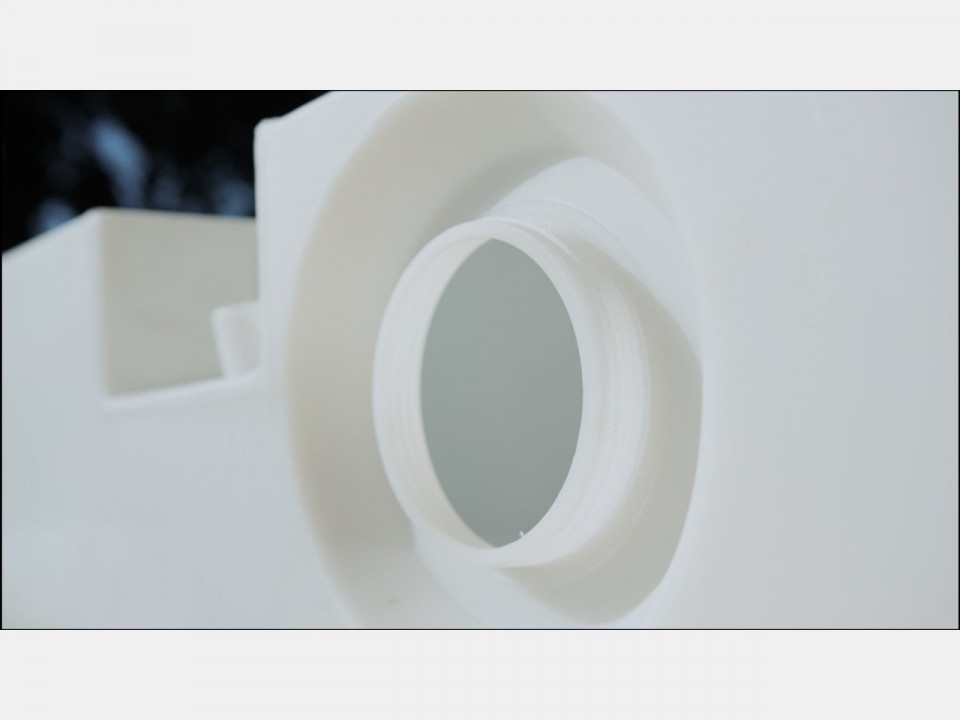

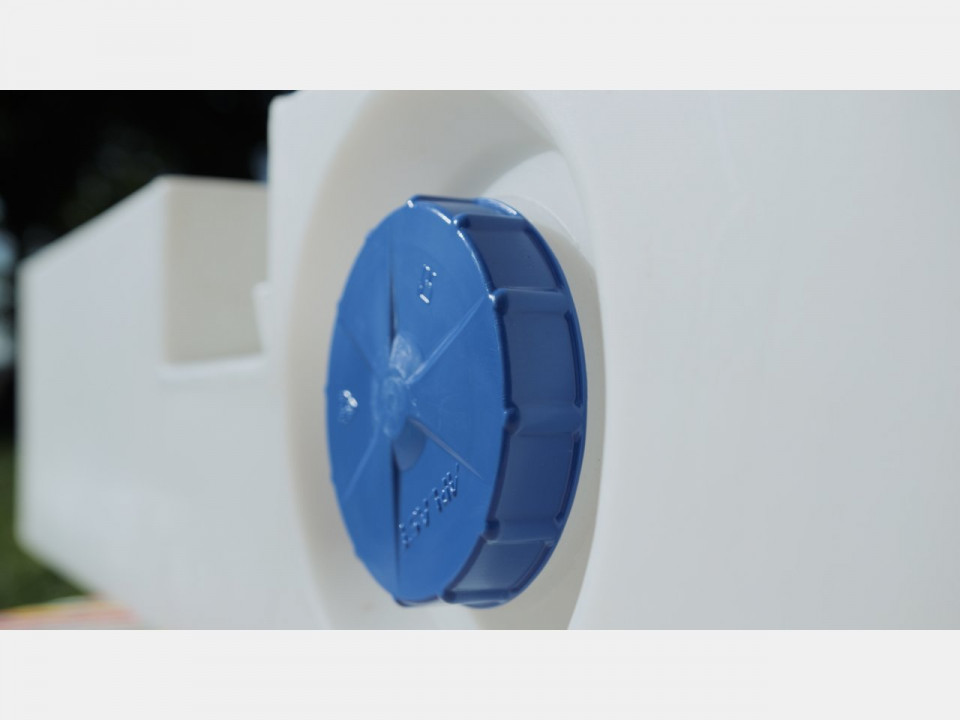

• 1 manhole with lid Ø140mm
• 1 preformed filling opening Ø40mm at the top,
• 1 outlet Ø25 mm at the bottom (length 10 cm)

ATTENTION !!! Due to the special dimensions and/or gauge this article has a fixed delivery charge of 25 RON

Filling the tank is generally done through a filling nozzle mounted outside the vehicle and connected to the water tank through a flexible hose with a diameter of 40mm. The flexible hose can be attached to the water tank directly to the pre-formed filler spout or by making a new filler spout using the desired supply rods.

The water is extracted from the tank using a submersible or external water pump using a 10 or 12mm internal diameter hose. The hose is attached to the water tank using one of the following stut variants:

You can order the supply nozzles here

You can find the hose nozzles, connectors and other accessories needed to connect to the water supply here
