Wireless display for "Mopeka" cylinder gas level indicator

Description

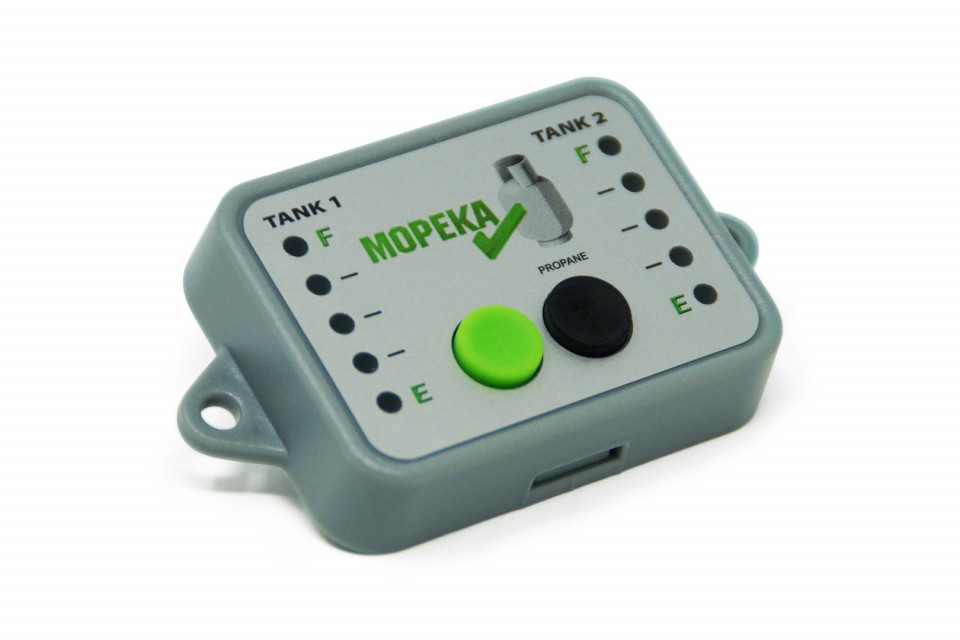

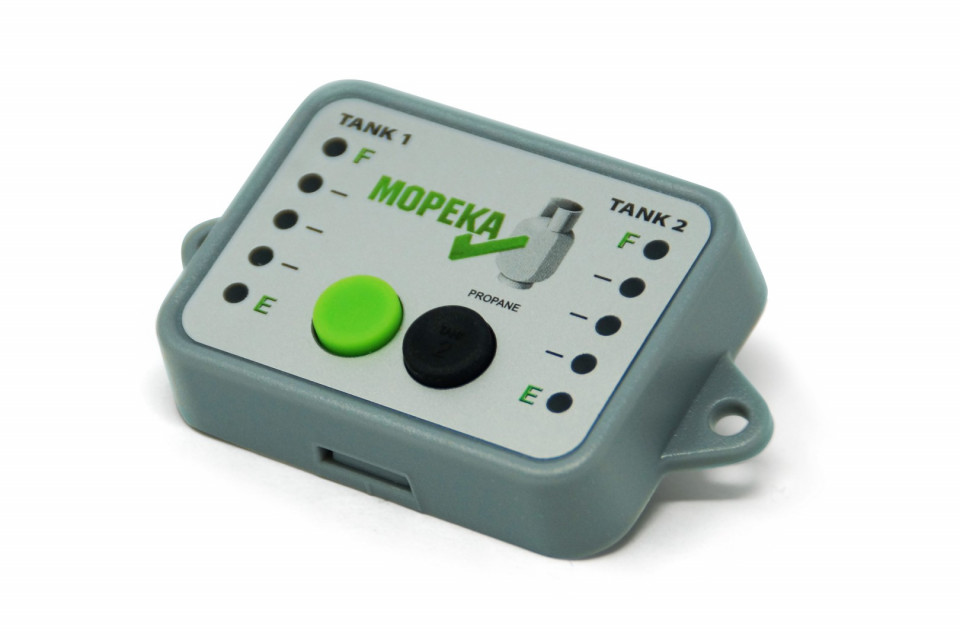

Wireless display for "Mopeka" cylinder gas level indicator. It can be mounted anywhere inside the vehicle and shows the filling level of up to 2 gas cylinders. It is compatible with up to Mopeka Check sensor (to be purchased separately from here) and is programmable for 2 cylinders. Each part is independent and so can be programmed for different cylinder sizes.

Specifications:

Certification: CE EN 60950-1:2006

Battery CR2023

Connection instructions after assembly:

1. Remove the battery protection strip completely from the monitor. This will activate the monitor.

2. Press and hold one of the buttons on the monitor until the lights for that button start flashing (approximately 5 seconds).
Release the button when the lights start blinking.

3. While the lights are flashing, quickly press the SYNC button at least 6X.
Note: The first 5X wakes the sensor from sleep mode. The monitor is only in sleep mode when shipped from the factory. Once activated, the sensor will never go into sleep mode again, and only 1 press is required for a re-SYNC or to connect to a new device.

4. The monitor lights will stop flashing and the sensor is now synchronised with the monitor.

5. Repeat the steps to synchronise the second sensor with the second monitor button/indicator.
NOTE: For ease of cylinder identification, the buttons on the display are coloured green and should correspond with the coloured labels on each sensor.

6. Both sensors are now synchronised with the monitor.
