Controller - battery connection cable 6mmp with M8 pigtail and pin, 2 pcs RED and BLACK

Ultimatron
[1]
RON 32.00 (VAT included)
Free shipment for orders > 60 Euro
Ultimatron
Product code Length Total price Quantity Stock
69766 1 m
RON 32.00
on stock
69767 2 m
RON 41.00
on stock
Add to Favorites
How can we help?
Ask for details

Description

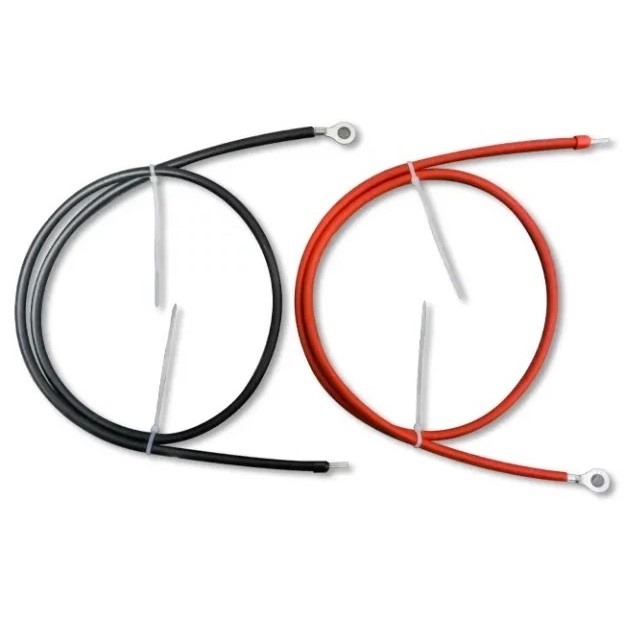

Controller-battery connection cable - 6mm² red and black, 2 pcs. The connection cable has a cross-section of 6 mm² and is made of high-quality materials. The internal conductor material has low resistivity and generates little heat. At one end it is provided with M8 lug and at the other end with pin for connection to the controller.

Specifications:
Length 1 m or 2 m
Cross section: 6 mm²
M8 cable on battery end and pin on controller end
Package contains 2 pcs RED and BLACK cable
Weight: 2540 g

Package contains 2 pcs

The correct cable is selected based on the maximum current that must pass through that system. The table below indicates the cable size and its correspondence to the maximum current (for cables up to 5 metres total length - if there are 2 cables, the total length is the sum of them). If you can't find a thick enough cable, use two cables per connection rather than one very thick one.


Nominal conductor cross-section (mm²) Maximum allowable current (A)
0.50 mm² (0.50 mm²) 12 A
0.75 mm² (0.75 mm²) 15 A
1.00 mm² A 19 A
1.50 mm² A 24 A
2.50 mm² A 32 A
4.00 mm² A 42 A
6.00 mm² A 54 A
10.00 mm² A 73 A
16.00 mm² A 98 A
25.00 mm² A 129 A
35.00 mm² A 158 A
50.00 mm² A 198 A
70.00 mm² A 245 A
95.00 mm² A 292 A

Details

Categories
MPPT solar panel controller
Brand
Ultimatron

Delivery

Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
