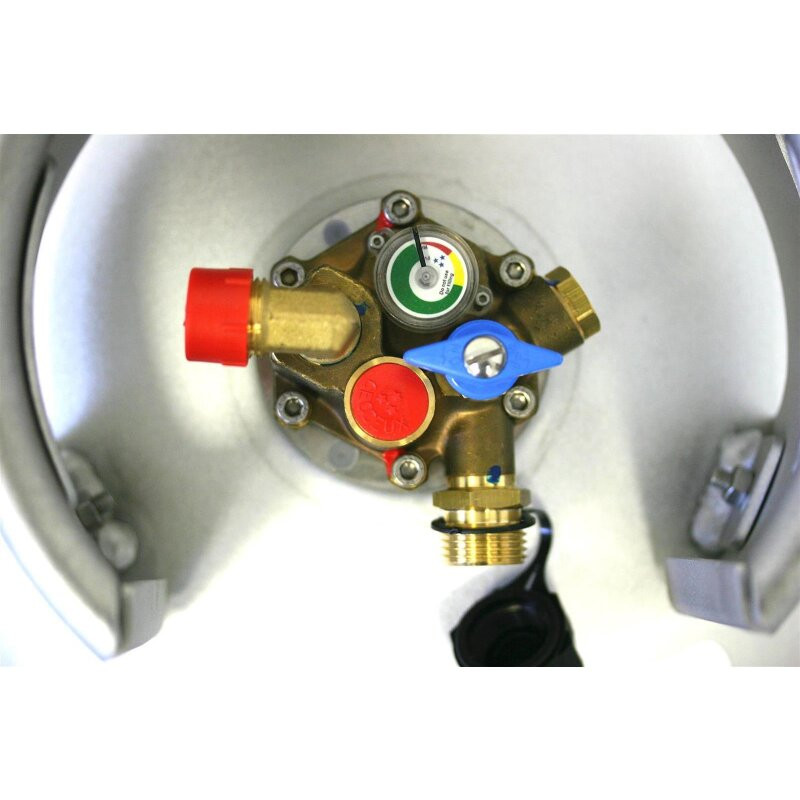

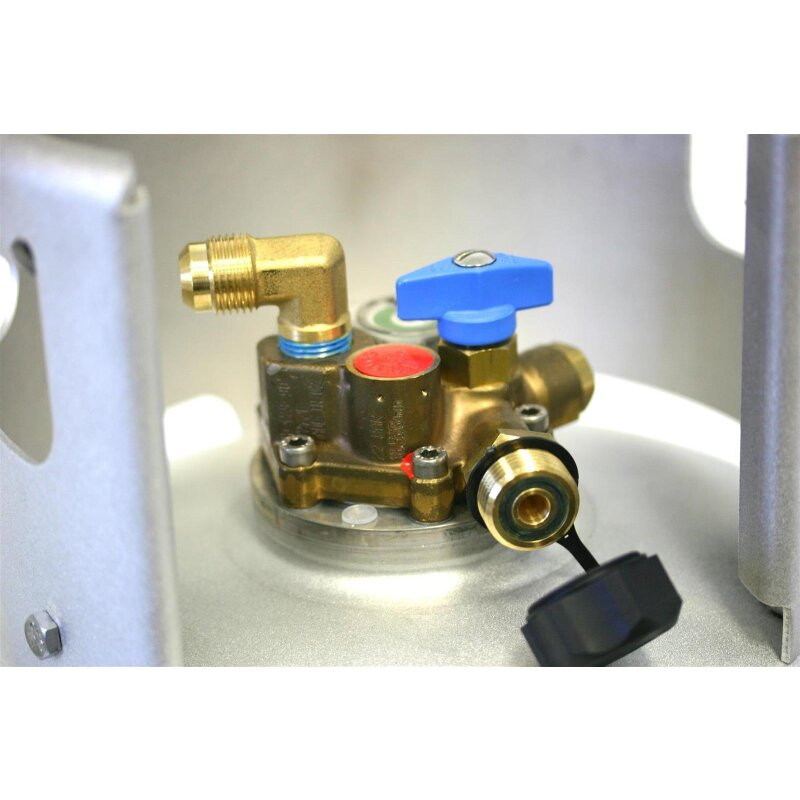

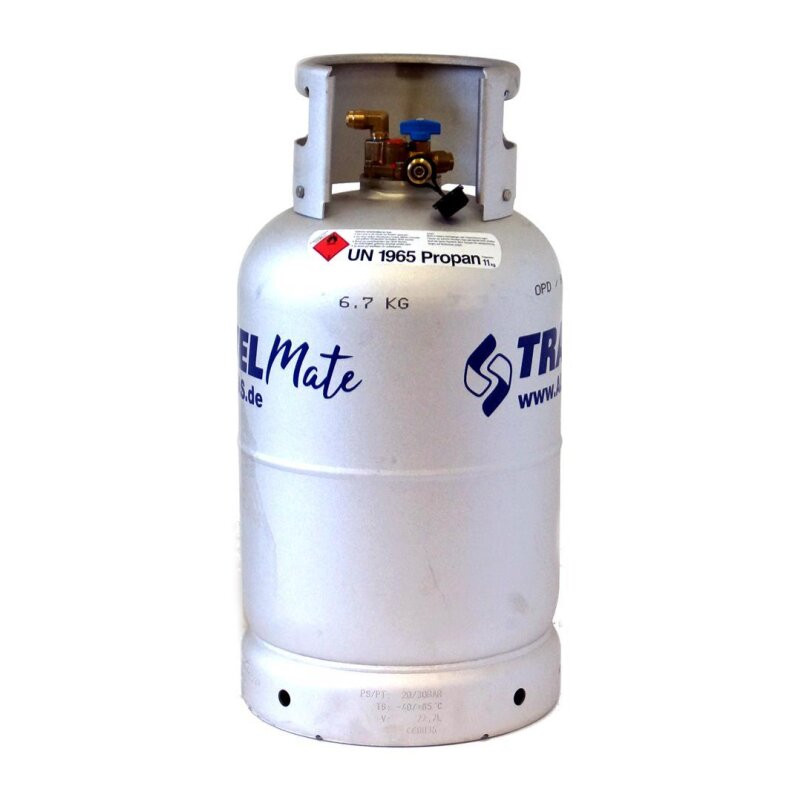

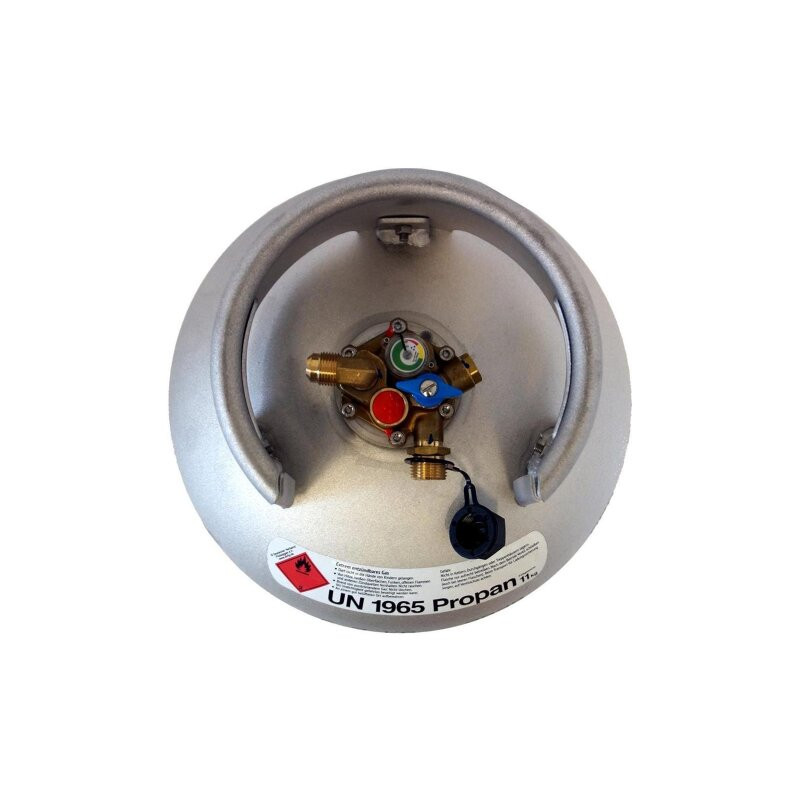

Refillable LPG tank, aluminium, with multivalve and filling indicator, 27/22l

Description

LPG tank with multivalve and filling indicator. This model has the same diameter as the classic 11kg (300 mm) cylinder and can be installed in its place and refuelled with LPG from any station in Romania or in Europe. In most European countries, LPG refuelling is allowed only with special LPG cylinders / tanks approved ECE 67R-01. The certificate of conformity for Alugas tanks can be downloaded from https://alugas-service.de/alugas.php by entering the tank serial number.

Refuelling can be done

• directly into the tank by using an extension and adaptors for Romania (DISH), Holland (bayonet), Germany (ACME) or Spain (Euronozzle) which must be purchased separately.
• through the nozzle (not included in the package) which can be installed on the service door and which can be purchased separately here

What is the difference between standard and refillable gas cylinders? The CAMPKO refillable LPG cylinder/tank is equipped with an overfill protection mechanism that prevents overfilling by limiting it to 80% of the total capacity. If the cylinder is filled above this level, under certain conditions (e.g. excessive heat) there is a risk that the liquefied gas inside may expand and damage the valves, taps, filters etc or even explode. The 80 per cent safety level is not possible to control in the case of a conventional cylinder that is filled with LPG in a homemade way.

In addition to the overfill protection mechanism, the ALUGAS cylinder/tank is fitted with a safety valve configured to open at a pressure of 27 bar.

WARNING !!! Due to its dimensions and special gauge, this item has a fixed transport charge of 25 RON

Specifications:

• Capacity gross volume: 27,2 l / net volume 21,76 litres (= 80%)
• Height including collar: 597 mm
• Height without collar (top edge of valve): 557 mm
• Diameter: 300 mm
• Material: aluminium
• Overfill valve: yes, limits to 80% of nominal capacity
• Safety valve: yes, max 27 bar
• Weight (without gas): 6,6 kg
• Filling level indicator: yes (gauge, based on gas pressure)
• LPG supply: 3/4-16 UNF (right)
• LPG outlet: G12 (W21,8 x 1/14 left) GERMANY cylinder type (for G12 pressure hose which can be purchased here or here )
• Standard EN 13110:2012
